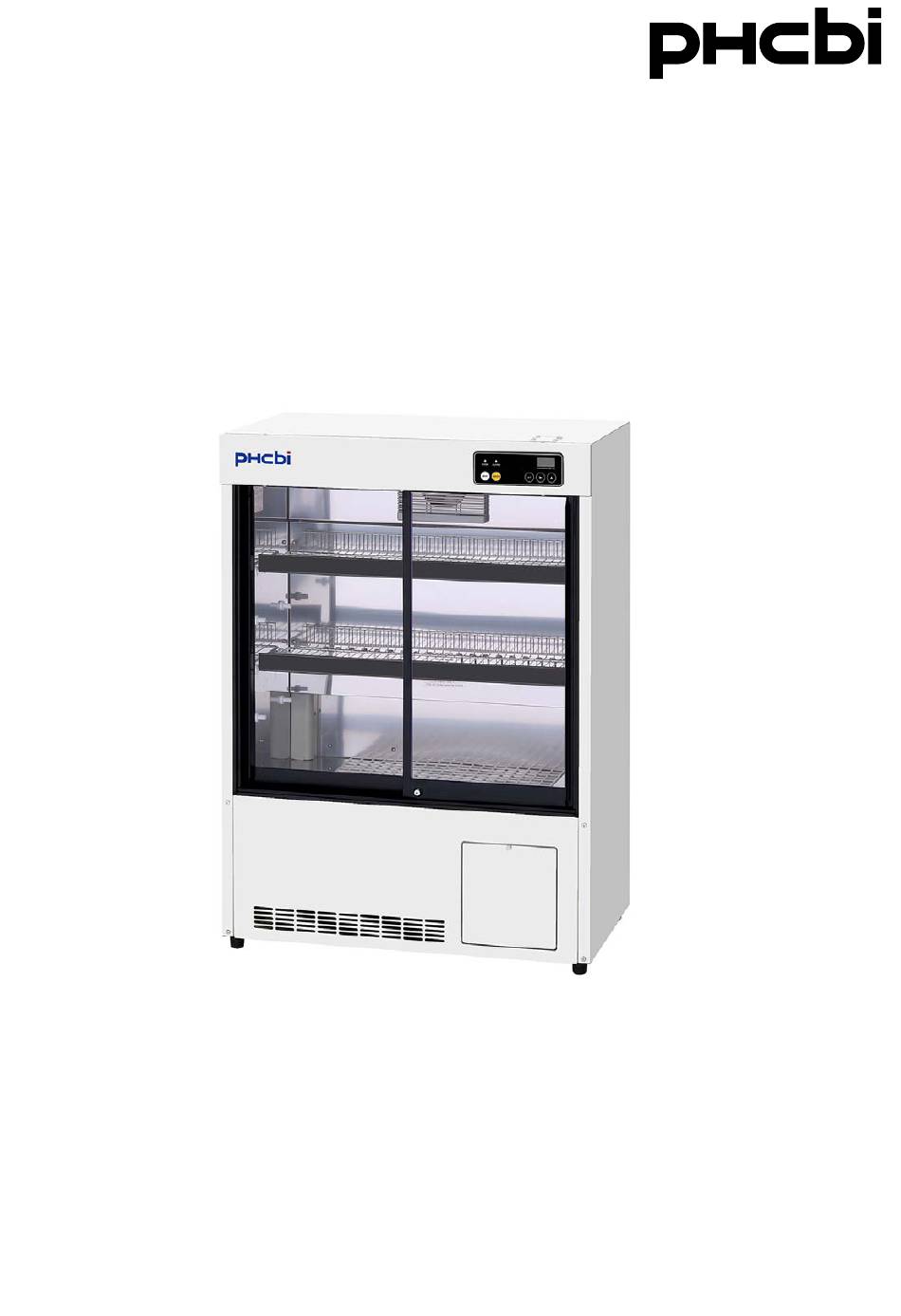

- Page 1 Operating Instructions Pharmaceutical Refrigerator MPR-S163 MPR-S313 Series MPR-S163 Please read the operating instructions carefully before using this product, and keep the operating instructions for future use. See page 32 for all model numbers.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION P. 2 PRECAUTIONS FOR SAFE OPERATION P. 3 SYMBOLS ON THE UNIT P. 6 ENVIRONMENTAL CONDITIONS P. 7 REFRIGERATOR COMPONENTS P. 8 Control panel components P. 10 INSTALLATION SITE P. 11 INSTALLATION P. 12 Installation of shelf P. 12 START-UP OF UNIT P. -
Page 4: Introduction
INTRODUCTION ■ Read the operating instructions carefully before using the appliance and follow the instructions for safety operation. ■ PHC Corporation never guarantees any safety if the appliance is used for any objects other than intended use or used by any procedures other than those mentioned in the operating instructions. ■... -
Page 5: Precautions For Safe Operation
PRECAUTIONS FOR SAFE OPERATION It is imperative that the user complies with the operating instructions as it contains important safety advice. Items and procedures are described so that you can use this unit correctly and safely. If the precautions advised are followed, this will prevent possible injury to the user and any other person. - Page 6 PRECAUTIONS FOR SAFE OPERATION WARNING Do not use the unit outdoors. Current leakage or electric shock may result if the unit is exposed to rain water. Only qualified engineers or service personnel should install the unit. The installation by unqualified personnel may cause electric shock or fire. Install the unit on a sturdy floor and take an adequate precaution to prevent the unit from turning over.
- Page 7 PRECAUTIONS FOR SAFE OPERATION WARNING Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. These may be harmful to your health. Never splash water directly onto the unit as this may cause electric shock or short circuit. Never put containers with liquid on the unit as this may cause electric shock or short circuit when the liquid is spilled.
-
Page 8: Symbols On The Unit
PRECAUTIONS FOR SAFE OPERATION CAUTION This unit must be plugged into a dedicated circuit protected by branch circuit breaker. Use a dedicated power source as indicated on the rating label attached to the unit. A multiple-tap may cause fire resulting from abnormal heating. Connect the power supply plug to the power source firmly after removing the dust on the plug. -
Page 9: Environmental Conditions
ENVIRONMENTAL CONDITIONS This equipment is designed to be safe at least under the following conditions (based on the IEC 61010-1): ■ Indoor use; ■ Altitude up to 2000 m; ■ Temperature 5 C to 40 ■ Maximum relative humidity 80 % for temperature up to 31 C decreasing linearly to 50 % relative humidity at 40 ■... -
Page 10: Refrigerator Components
REFRIGERATOR COMPONENTS MPR-S163 Power supply cord Rear side MPR-S313 MPR-S163-PE/MPR-S313-PE only... - Page 11 REFRIGERATOR COMPONENTS 1. Door switch 2. LED light: White LED light. 3. Air intake vent: Be careful not to block off. If air intake vent is blocked, the chamber temperature becomes unstable. Also be careful not to insert the finger or enter the foreign materials. 4.
-
Page 12: Control Panel Components
REFRIGERATOR COMPONENTS Control panel components 1. Door check indicator (DOOR): The red LED lamp is lit when the door is opened. (After 2 minutes the door check indicator lights; the alarm buzzer is activated to notice the door opening.) 2. Alarm indicator (ALARM): The red LED lamp blinks during an alarm status. (page 22, 23) 3. -
Page 13: Installation Site
INSTALLATION SITE To operate this unit properly and to obtain maximum performance, install the unit in a location with the following conditions: ■ A location not subjected to direct sunlight Do not install the unit under direct sunlight. Installation in a location subjected to direct sunlight cannot obtain the intended performance. -
Page 14: Installation
INSTALLATION 1. Removing the packing materials and tapes Remove all transportation packaging materials and tapes. Open the doors and ventilate the unit. If the outside panels are dirty, clean them with a diluted neutral dishwashing detergent. (Undiluted detergent can damage the plastic components. For the dilution, refer to the instruction of the detergent.) After the cleaning with the diluted detergent, always wipe it off with a wet cloth. -
Page 15: Start-Up Of Unit
START-UP OF UNIT To commence the operation (initially or after temporary power off due to the cleaning, maintenance, etc.), follow the procedure below: ■ The operation is resumed automatically after recovery from power failure with the setting before power failure. 1. -
Page 16: Chamber Temperature Setting
CHAMBER TEMPERATURE SETTING Set the temperature of chamber according to the usage condition. This unit keeps the storage items for long period with adequate chamber temperature. Temperature Setting range between 2 C and 14 Initial setting (at factory) The chamber temperature of 2 C may cause partial freeze of stored items. -
Page 17: Key Lock Function
KEY LOCK FUNCTION The temperature setting of chamber can be locked to avoid accidental change. When the lock is ON, the change of chamber temperature is unable even if the key on the control panel is operated. Initial setting (at factory): Lock is OFF Display Mode Function... -
Page 18: Led Lighting Time Setting
LED LIGHTING TIME SETTING The LED light is automatically turned off after setting time when the LED light is turned on by pressing the LED Light key. The method of change of lighting time is as follows. Initial setting (at factory): 10 minutes Example: Changing the LED lighting time to 5 minutes from 10 minutes Following shows an example. -
Page 19: Alarm Temperature Setting
ALARM TEMPERATURE SETTING Setting of high temperature alarm The abnormal temperature rise is notified by the blink of alarm indicator and display of chamber temperature, and the alarm buzzer (15 minutes after blink) when the high temperature alarm is set. Always set the high temperature alarm to avoid the damage of storage items due to the temperature rise. -
Page 20: Setting Of Low Temperature Alarm
ALARM TEMPERATURE SETTING Setting of low temperature alarm The abnormal temperature descent is notified by the blink of alarm indicator and display of chamber temperature, and the alarm buzzer (15 minutes after blink) when the low temperature alarm is set. Always set the low temperature alarm to avoid the damage of storage items due to the temperature descent. -
Page 21: Setting Of Delay Of Door Alarm
SETTING OF DELAY OF DOOR ALARM The door check indicator is lit when the door is opened, and the alarm buzzer sounds with some delay to notice the door opening. The delay time (between lighting of the door check indicator and activation of the alarm buzzer) can be changed. -
Page 22: Setting Of Alarm Buzzer Recovery
SETTING OF ALARM BUZZER RECOVERY The alarm buzzer recovers and notifies the abnormality again after preset period (alarm buzzer recovery time) if the same alarm status is continued after the alarm buzzer is stopped by pressing the alarm buzzer stop key (BUZZER). Always set the alarm buzzer recovery time to avoid the false recognition of alarm status. -
Page 23: Operation Check After Recovery
OPERATION CHECK AFTER RECOVERY After recovery from a power failure, the unit will resume operation automatically with the setting (chamber temperature, lock of temperature setting, alarm temperature, alarm buzzer recovery time) before power failure. Accordingly, there is no need for re-set however, always check the running status after recovery. ■... -
Page 24: Alarm Functions
ALARM FUNCTIONS This unit has the alarm functions shown below. Contact our sales representative or agent after moving the storage items to other refrigerator if the alarm status continues because there is a possibility of any failure. Alarms Situation Indication Alarm buzzer Remote alarm Alarm status with 15... -
Page 25: Self Diagnostic Functions
SELF DIAGNOSTIC FUNCTIONS This unit has the self diagnostic functions shown below. Contact our sales representative or agent if an error code (ex. E01) is displayed resulting from the self diagnostic. Remote alarm Self diagnostic Situation Indication Alarm buzzer Alarm indicator blinks. The thermal sensor is E01 and -50 is displayed disconnected. -
Page 26: Routine Maintenance
ROUTINE MAINTENANCE CAUTION Always disconnect the power supply to the unit prior to any repair or maintenance of the unit in order to prevent electric shock or injury. Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. -
Page 27: Troubleshooting
TROUBLESHOOTING If the unit malfunctions, check out the following before calling for service. Malfunction Check/Remedy The unit does not operate □ The unit is not connected to the power supply properly. at all □ The power switch is not turned on. (MPR-S163-PE / MPR-S313-PE only) □... - Page 28 DISPOSAL OF UNIT (English) Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.
- Page 29 DISPOSAL OF UNIT (French) Informations relatives à l’évacuation des déchets, destinées aux utilisateurs d’appareils électriques et électroniques (appareils ménagers domestiques) Lorsque ce symbole figure sur les produits et/ou les documents qui les accompagnent, cela signifie que les appareils électriques et électroniques ne doivent pas être jetés avec les ordures ménagères.
- Page 30 DISPOSAL OF UNIT (Portuguese) Informações sobre a eliminação de resíduos para utilizadores de equipamentos eléctricos e electrónicos (utilizadores particulares) Este símbolo nos produtos e/ou documentos anexos significa que os produtos eléctricos e electrónicos usados não devem ser misturados com os resíduos urbanos indiferenciados.
- Page 31 DISPOSAL OF UNIT (Dutch) Informatie over het weggooien van elektrische en elektronische apparatuur (particulieren) Dit symbool betekent in Europa dat gebruikte elektrische en elektronische producten niet bij het normale huishoudelijke afval mogen. Lever deze producten in bij de aangewezen inzamelingspunten, waar ze gratis worden geaccepteerd en op de juiste manier worden verwerkt, teruggewonnen en hergebruikt.
-
Page 32: Temperature Recorder (Option)
TEMPERATURE RECORDER (OPTION) WARNING Always disconnect the power supply to the unit prior to attachment of a temperature recorder in order to prevent electric shock or injury. A temperature recorder is available for the refrigerator as the optional component. The type of the temperature recorder is MTR-G04A or MTR-G04C and MTR-0621LH. -
Page 33: Specifications
SPECIFICATIONS Product name Pharmaceutical refrigerator Pharmaceutical refrigerator MPR-S163 MPR-S313 External dimensions W800 mm x D465 mm x H1090 mm W800 mm x D465 mm x H1800 mm Internal dimensions W720 mm x D300 mm x H725 mm W720 mm x D350 mm x H1435 mm Effective capacity 158 L 340 L... -
Page 34: Performance
PERFORMANCE Product name Pharmaceutical refrigerator MPR-S163 Model number MPR-S163-PK MPR-S163-PT MPR-S163-PE MPR-S163-PR Temperature control range Between 2 C and 14 C (ambient temp.; -5 C to 35 C, no load) Noise level 35 dB (A scale) Maximum pressure 1800 kPa Rated voltage AC 220 V AC 220 V/230 V/240 V... -
Page 35: Safety Check Sheet
CAUTION Please fill in this form before servicing. Hand over this form to the service engineer to keep for his and your safety. Safety check sheet 1. Refrigerator contents : □ □ Risk of infection: □ □ Risk of toxicity: □... - Page 36 1-1-1 Sakada, Oizumi-machi, Ora-gun, Gunma 370-0596, Japan Printed in Japan LDCL035400-0 S0418-0 © PHC Corporation 2018...
