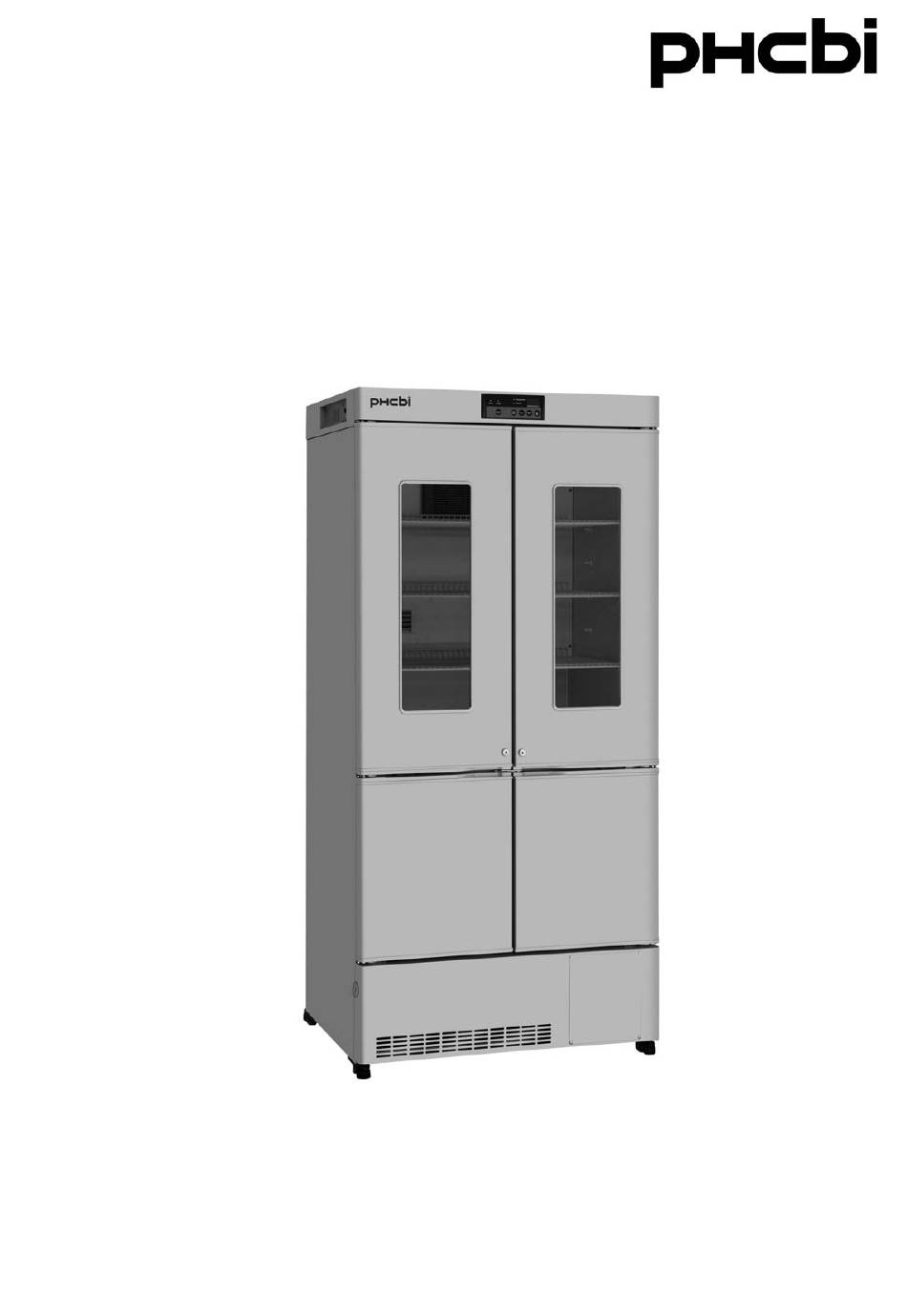

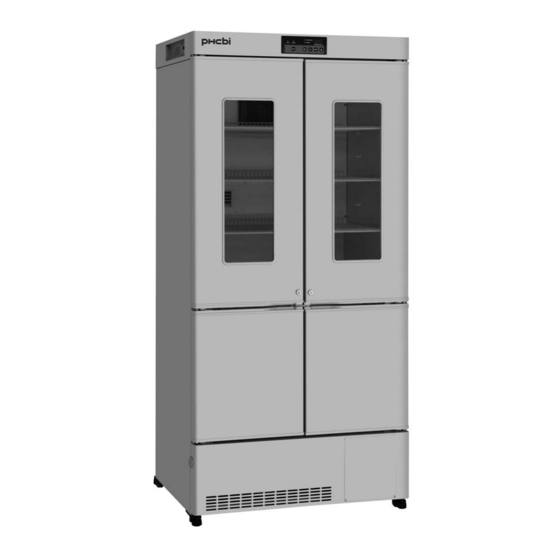

- Page 1 Operating Instructions Pharmaceutical Refrigerator MPR-715F Series Please read the operating instructions carefully before using this product, and keep the operating instructions for future use. See page 46 for all model numbers.
-
Page 2: Table Of Contents
Table of contents Introduction ················································································ P.3 Precautions for safe operation ······················································· P.4 Symbols for warning and caution ····································· P.4 Warning and caution for handling the unit ·························· P.5 Environmental conditions ······························································· P.8 Precautions and action for temperature rise ····································· P.9 Precautions for temperature rise ·····································... -
Page 3: Introduction
INTRODUCTION Read the operating instructions carefully before using the appliance and follow the instructions for safe operation. Handling of Operating Instructions PHC Corporation never guarantees any safety if the appliance is used for any objects other than intended use or used by any procedures other than those mentioned in the operating instructions. ... -
Page 4: Precautions For Safe Operation
PRECAUTIONS FOR SAFE OPERATION It is imperative that the user complies with the operating instructions as it contains important safety advice. Items and procedures are described so that you can use this unit correctly and safely. If the precautions advised are followed, this will prevent possible injury to the user and any other person. Symbols for warning and caution The warning and caution regarding to the safety is indicated with the following indications and symbols in this manual and on the product. -
Page 5: Warning And Caution For Handling The Unit
Warning and caution for handling the unit WARNING - Installation ▪ Use ▪ Stop - Do not use the unit outdoors. Current leakage or electric shock may result if the unit is exposed to rain water. Only qualified engineers or service personnel should install the unit. ... - Page 6 PRECAUTIONS FOR SAFE OPERATION Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. These may be harmful to your health. Never splash water directly onto the unit. Never put containers with liquid on the unit. ...
- Page 7 CAUTION - Power supply, re-start, moving, service call - This unit must be plugged into a dedicated circuit protected by branch circuit breaker. Use a dedicated power source as indicated on the rating label attached to the unit. A multiple-tap may cause fire resulting from abnormal heating. Connect the power supply plug to the power source firmly after removing the dust on the plug.
-
Page 8: Environmental Conditions
ENVIRONMENTAL CONDITIONS This equipment is designed to be safe at least under the following conditions (based on the IEC 61010-1): Indoor use; Altitude up to 2000 m; Temperature 5 C to 40 Maximum relative humidity 80 % for temperature up to 31 C decreasing linearly to 50 % relative humidity at 40 ... -
Page 9: Precautions For Temperature Rise
PRECAUTIONS AND ACTION FOR TEMP. RISE Precautions for temperature rise As a preventive measure, take the following steps to protect the valuable storage items in the chamber in case the unit should stop operating as a result of unforeseen events (such as a power failure) and its chamber temperature should rise. -
Page 10: Action For Chamber Temperature Rise
PRECAUTIONS AND ACTION FOR TEMP. RISE Action for chamber temperature rise When the high-temperature alarm or power failure alarm (when the battery mounting box battery is installed) has been activated (in which case, the alarm indicator blinks and the buzzer sounds) as a result of an unforeseen event, take the action described below without delay to protect the storage item. -
Page 11: Check Of Enclosures
CHECK OF ENCLOSURES Before commencing the operation, check the accessories and printed matters enclosed with the refrigerator. Contact our sales representative or agent if anything is missed. Enclosures Quantity Remarks 1 set 2 keys Clip (large) For temperature recorder Clip (small) For temperature recorder Freezer shelf spacer Used 2 spacers... -
Page 12: Refrigerator Components
REFRIGERATOR COMPONENTS Main body The function of components with number is described on the next page. 13. Remote alarm terminal <inside> 1. Control panel Lamp Refrigerator door 12. Power switch <inside> Magnetic door gasket 10. Air intake vent 2. Shelf support 9. - Page 13 Outer and chamber 1. Control panel <door front, upper> The chamber temperature and other alarms/functions can be set through the keys on the control panel. The running status can be checked by the temperature display and indicators [page 14 and page 15].
-
Page 14: Control Panel
REFRIGERATOR COMPONENTS Control panel Details of control panel The control panel is comprised of temperature display, indicators, and keys. Indicators Temperature display Keys Indication on the temperature display At normal: display of current chamber temperature At temperature alarm: blink of chamber temperature At alarm by self-diagnostic: display of code [page 34]. - Page 15 Function of each key The buzzer sounds again after 30 minutes (initial setting) even if the buzzer is stopped by depressing the buzzer stop key (BUZZER) when the same alarm status continues. The alarm indicator blinks and the buzzer sounds when other alarm is occurred in spite of buzzer stop period.
-
Page 16: Installation Location
INSTALLATION LOCATION This unit must be installed in a location which meets all the conditions described below. If the unit is installed in a location which does not meet the conditions, its specified performance may not be achieved or malfunctioning and accidents may occur. A location not exposed to direct sunlight Avoid any location which is exposed to direct sunlight. -
Page 17: Installation
INSTALLATION When installing the unit, follow the steps below to secure the unit properly, and also be absolutely sure to connect the unit to ground. In addition, install a ground fault circuit breaker (on the unit’s power supply side) which is mandatory under the applicable laws and regulations. -
Page 18: Start-Up Procedure
START-UP PROCEDURE To commence the operation (initially or after temporary power off due to the cleaning, maintenance, etc.), follow the procedure below: The operation is resumed automatically at the recovery from power failure with the setting before power failure page 20] 1. -
Page 19: Handling Of Storage Items
HANDLING OF STORAGE ITEMS Always follow the indication below when taking out/putting in the material. Put on the gloves when taking out/putting in the storage items in the freezer chamber. No gloves may cause injury. Do not put the excessive storage items in the chamber. Over putting disturbs the cold air circulation and degrades the cooling performance. -
Page 20: During/After Power Failure
DURING/AFTER POWER FAILURE <Important> It is recommended the battery mounting box (option) is installed to notice the alarm (blink of alarm indicator, buzzer) in the event of power failure. Display of chamber temperature during power failure By depressing the buzzer stop key (BUZZER) during “power failure alarm”, the buzzer stops and the chamber temperature is displayed on the temperature display for 5 seconds. -
Page 21: Setting Of Chamber Temperature
SETTING OF CHAMBER TEMPERATURE Set the chamber temperature as needed to keep the material at appropriate temperature for long period of time. Setting range of chamber temperature: Refrigerator; between 2 C and 14 Freezer; between -35 C and -15 ... -
Page 22: Lock Of Chamber Temperature Setting
LOCK OF CHAMBER TEMPERATURE SETTING The chamber temperature setting can be locked to avoid an accidental change. The change of chamber temperature setting is not accepted even if the key on the control panel is operated when the lock is ON. Display Lock status Setting of chamber temperature... -
Page 23: Stop Of Freezer Operation
STOP OF FREEZER OPERATION Procedure to stop the freezer operation The freezer operation can be stopped when removing the frost in the freezer chamber or when no use of freezer. The current freezer temperature and OFF is displayed alternately on the temperature display when the indicator for freezer temperature lights. -
Page 24: Procedure To Resume The Freezer Operation
STOP OF FREEZER OPERATION REEZER OPER Procedure to resume the freezer operation The following shows the procedure to resume the freezer operation. The freezer operation can be resumed by setting the freezer temperature. Example: Resume the freezer operation with -25 setting •... -
Page 25: Defrost
DEFROST Defrost in refrigerator The following 2 types of defrosting methods are provided for the refrigerator. Both of them are controlled automatically. Cycle defrosting The refrigerator temperature is kept stable by ON/OFF operation of the compressor. When the compressor is OFF (stopped), the frost on the evaporator is melted by the heater. This defrosting never influences to the refrigerator temperature. -
Page 26: Setting Of Alarm Temperature
SETTING OF ALARM TEMPERATURE Setting of high temperature alarm (refrigerator) The abnormality (chamber temperature rise) is noticed by blinking of alarm indicator and chamber temperature display and sounding of the buzzer (15 minutes after blinking) if the chamber temperature exceeds the set value of high temperature alarm. Always set the high temperature alarm to protect the storage items from damage resulting from temperature rise. -
Page 27: Setting Of Low Temperature Alarm (Refrigerator)
Setting of low temperature alarm (refrigerator) The abnormality (chamber temperature drop) is noticed by blinking of alarm indicator and chamber temperature display and sounding of the buzzer (15 minutes after blinking) if the chamber temperature falls below the set value of low temperature alarm. Always set the low temperature alarm to protect the storage items from damage resulting from temperature drop. -
Page 28: Setting Of High Temperature Alarm (Freezer)
SETTING OF ALARM TEMPERATURE ETTING OF Setting of high temperature alarm (freezer) The abnormality (chamber temperature rise) is noticed by blinking of alarm indicator and chamber temperature display and sounding of the buzzer (15 minutes after blinking) if the chamber temperature exceeds the set value of high temperature alarm. -
Page 29: Setting Of Low Temperature Alarm (Freezer)
Setting of low temperature alarm (freezer) The abnormality (chamber temperature drop) is noticed by blinking of alarm indicator and chamber temperature display and sounding of the buzzer (15 minutes after blinking) if the chamber temperature falls below the set value of low temperature alarm. Always set the low temperature alarm to protect the storage items from damage resulting from temperature drop. -
Page 30: Setting Of Buzzer Suspended Period
SETTING OF BUZZER SUSPENDED PERIOD The abnormality is noticed again by sounding of the buzzer after certain suspended period (buzzer recovery timing) if the alarm status continues even after the buzzer is silenced by depressing the buzzer stop key (BUZZER). Always set the buzzer suspended period to avoid the wrong recognition of alarm status. -
Page 31: Troubleshooting
TROUBLESHOOTING Check out the following before calling for service if the malfunction of the unit is suspected. <Attention> Contact our sales representative or agent if the malfunction is not eliminated after checking the following items, or the malfunction is not included in the following. The unit does not operate at all. - Page 32 TROUBLESHOOTING The cooling is poor. The large amount of high temperature item was stored. A lot of frost is built on the chamber wall. The door was opened frequently. The chamber set temperature is high. The unit is in the direct sunlight.
-
Page 33: Action For Alarm
ACTION FOR ALARM When an alarm has been generated, check the cause on the basis of the type of alarm generated, and take the necessary action to deal with it without delay. Refer to the next page for the alarm with error code indication (E01 to E12 or F1, F2) on the temperature display. -
Page 34: Action For Alarm With Error Code
ACTION FOR ALARM WITH ERROR CODE Alarms involving an error code indicated on the temperature display are generated by the self-diagnosis function. Contact our sales representative or agent without delay, report the error code and request repairs. Alternate display of error code (E01 to E12) and chamber temperature indication / blink of alarm indicator / Intermittent tone of buzzer (remote alarm-linked) Error code “E01”... -
Page 35: Safety Functions
SAFETY FUNCTIONS This unit has the safety functions shown below. Even if under the safety operation, there is no blink of display or indicator and no alarm buzzer operation. Safety Situation Safety operation Over-heat protection The refrigerator temperature is The defrost heater is off to avoid the (refrigerator only) higher than about 28 temperature rise. -
Page 36: Routine Maintenance
ROUTINE MAINTENANCE Clean or maintain the unit once a month to keep the appropriate performance and safety of the unit. Turn off the power switch (if provided) and disconnect the WARNING power supply to the unit prior to any maintenance of the unit. ... -
Page 37: Cleaning Exterior, Interior And Accessories
Cleaning exterior, interior and accessories Use a dry cloth to wipe off small amounts of dirt on the outside and inside of the unit and all accessories. If the outside panels are dirty, clean them with a diluted neutral dishwashing detergent. Undiluted detergent can damage the plastic components. -
Page 38: Replacement Of Wear-Out Parts
REPLACEMENT OF WEAR-OUT PARTS Replacing the battery for power failure alarm Replace the battery for power failure alarm every 3 years (when F1 and chamber temperature is displayed alternately) to ensure the alarm is operated in the event of power failure. Contact our sales representative or agent for the replacement of battery when F-1 and chamber temperature is displayed alternately. -
Page 39: Important Aspects When Disposing Of Unit
IMPORTANT ASPECTS WHEN DISPOSING OF UNIT Contact our sales representative or agent to dispose of the unit. The disposal of the unit should be accomplished by WARNING appropriate personnel. Leaving the unit in an unsupervised area may cause accidents. <Request>... - Page 40 IMPORTANT ASPECTS WHEN DISPOSING OF UNIT Information on Disposal for Users of Waste Electrical & Electronic Указания за изхвърляне на електрически и електронни отпадъци (за Equipment (private households) битови потребители) This symbol on the products and/or accompanying documents Този символ върху изделия и-или в придружаваща means that used electrical and electronic products should not документация...
- Page 41 IMPORTANT ASPECTS Oplysninger til brugerne om afhændelse af elektriske apparater og Informaţii pentru utilizatori, privind eliminarea echipamentelor electrice şi elektronisk udstyr (private husholdninger) electronice uzate (proprietate particulară) Når produkter og/eller medfølgende dokumenter indeholder Acest simbol, de pe produse şi/sau documentele însoţitoare, dette symbol, betyder det, at elektriske apparater og elektronisk are semnificaţia că...
- Page 42 IMPORTANT ASPECTS WHEN DISPOSING OF UNIT Informace pro uživatele k likvidaci elektrických a elektronických zařízení Informacija naudotojams dėl nenaudojamos elektros ir elektroninės (domácnosti) įrangos utilizacijos (naudojantiems ją buityje) Tento symbol na produktech anebo v průvodních dokumentech Šis simbolis, pažymėtas ant gaminių ir / arba lydimųjų znamená, že použité...
- Page 43 IMPORTANT ASPECTS Informacije za uporabnike o odstranitvi odpadne električne in elektronske Tietoja sähkö- ja elektroniikkalaitteiden hävittämisestä (kotitaloudet) opreme (zasebna gospodinjstva) Tämä symboli tuotteissa ja/tai niiden käyttöohjeissa osoittaa, Ta simbol, ki se nahaja na izdelkih in/ali priloženih dokumentih, että käytettyjä sähkö- ja elektroniikkalaitteita ei saa hävittää pomeni, da se rabljeni električni in elektronski izdelki ne smejo tavallisen kotitalousjätteen mukana.
-
Page 44: Temperature Recorder (Option)
TEMPERATURE RECORDER (OPTION) The chamber temperature can be recorded and checked by installing an optional temperature recorder (MTR-G3504, MTR-0621LH, or MTR-4015LH). Contact our sales representative or agent for the purchase of temperature recorder. Main specifications of temperature recorder MTR-G3504 MTR-0621LH MTR-4015LH Application Refrigerator &... -
Page 45: Specifications
SPECIFICATIONS Structural specifications Pharmaceutical refrigerator Product name MPR-715F External dimensions W900 mm x D715 mm x H1910 mm W810 mm x D615 mm x H894 mm (refrigerator) Internal dimensions W770 mm x D552 mm x H422 mm (freezer) Effective capacity 415 L (refrigerator), 176 L (freezer) Exterior Painted steel... -
Page 46: Functional Specifications
SPECIFICATIONS Functional specifications Pharmaceutical refrigerator Product name MPR-715F Temperature controller Electronic control system Temperature display Digital display Thermal sensor Thermistor sensor Chamber set temperature ±2 C to ±14 C (refrigerator) Alarm temperature Chamber set temperature ±5 C to ±15 C (freezer) Buzzer suspended period 10, 20, 30, 40, 50, 60 minutes, no recovery Door alarm... -
Page 47: Safety Check Sheet (For Copy)
Safety Check Sheet (for copy) 1. Used sample： Risk of infection: No possibility Some possibility Possible Risk of toxicity: No possibility Some possibility Possible Radioactive material: Not used Used (Nuclide: Other special instruction: 2. Contamination of the unit Interior: No contamination Decontaminated Some possibility of contamination Contaminated (if decontaminated, method: Other contamination: 3. - Page 48 1-1-1 Sakada, Oizumi-machi, Ora-gun, Gunma 370-0596, Japan Printed in Taiwan LDCL059800-0 © PHC Corporation 2018 S1118-0 (November 12, 2018)
