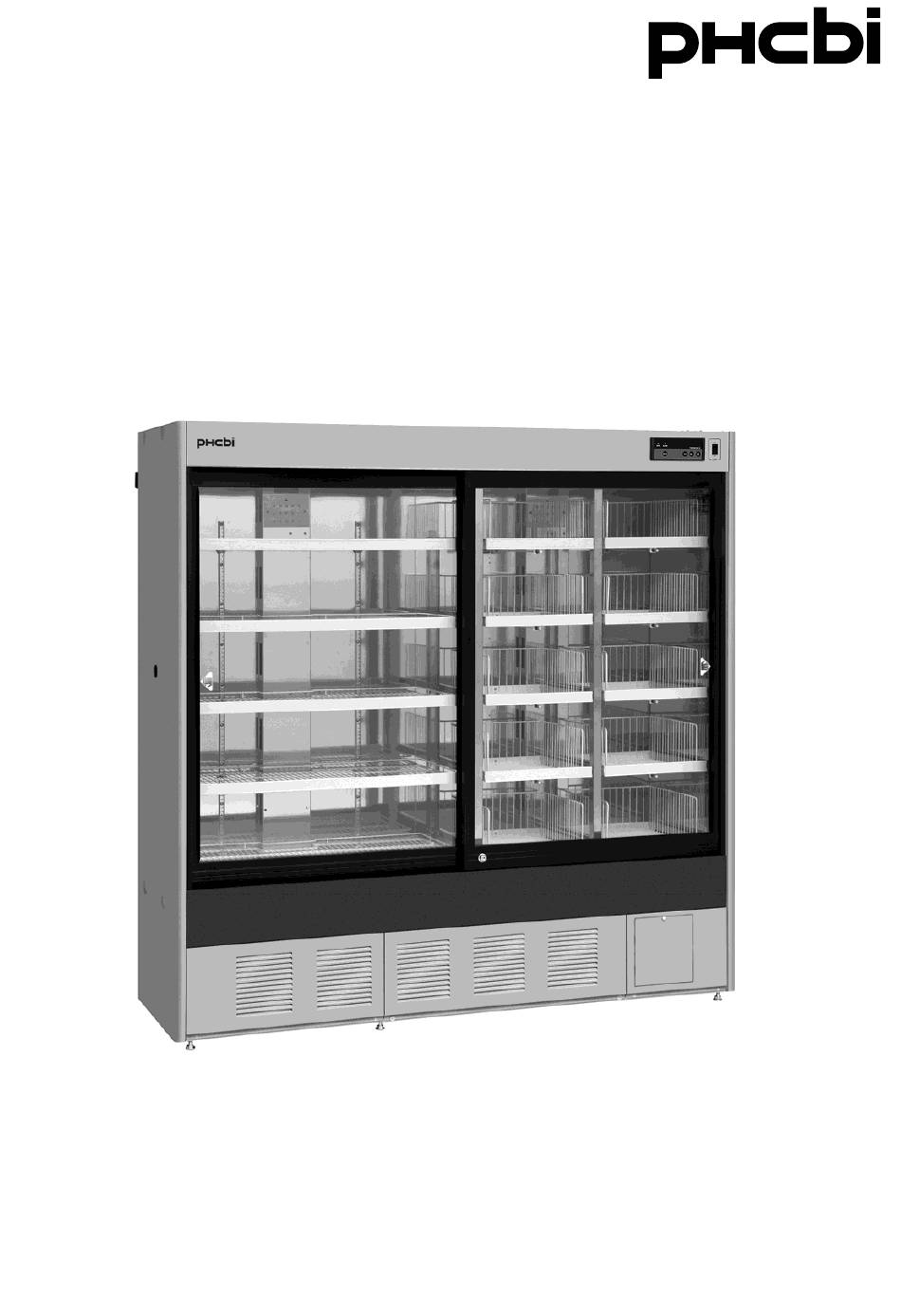

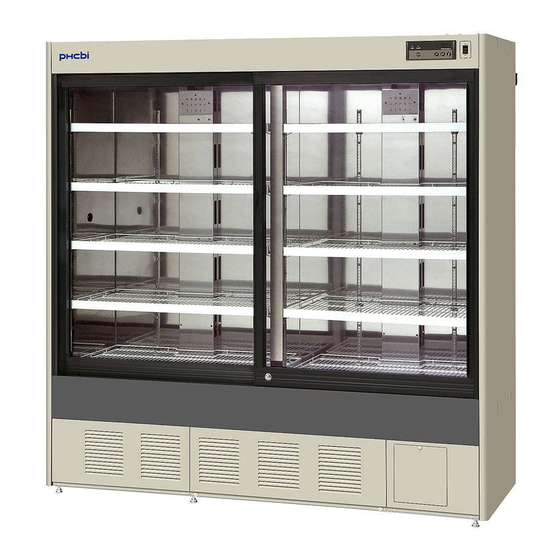

- Page 1 Operating Instructions Pharmaceutical Refrigerator MPR-1014R MPR-1014 Series MPR-1014R Please read the operating instructions carefully before using this product, and keep the operating instructions for future use. See page 44 for all model numbers.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ································································2 PRECAUTIONS FOR SAFE OPERATION ································3 ENVIRONMENTAL CONDITIONS ··········································7 REFRIGERATOR COMPONENTS Refrigerator unit ·····························································8 Control panel components ·············································· 10 INSTALLATION SITE ························································ 11 INSTALLATION ································································ 12 START-UP OF UNIT ························································· 14 CHAMBER TEMPERATURE SETTING ································· 15 LOCK OF CHAMBER TEMPERATURE ································· 16 DEFROST OF EVAPORATOR ············································... -
Page 4: Introduction
INTRODUCTION Read the operating instructions carefully before using the appliance and follow the instructions for safety operation. PHC Corporation never guarantees any safety if the appliance is used for any objects other than intended use or used by any procedures other than those mentioned in the operating instructions. ... -
Page 5: Precautions For Safe Operation
PRECAUTIONS FOR SAFE OPERATION It is imperative that the user complies with the operating instructions as it contains important safety advice. Items and procedures are described so that you can use this unit correctly and safely. If the precautions advised are followed, this will prevent possible injury to the user and any other person. - Page 6 PRECAUTIONS FOR SAFE OPERATION WARNING Do not use the unit outdoors. Current leakage or electric shock may result if the unit is exposed to rain water. Only qualified engineers or service personnel should install the unit. The installation by unqualified personnel may cause electric shock or fire. Install the unit on a sturdy floor and take an adequate precaution to prevent the unit from turning over.
- Page 7 PRECAUTIONS FOR SAFE OPERATION WARNING Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. These may be harmful to your health. Never splash water directly onto the unit as this may cause electric shock or short circuit. Never put containers with liquid on the unit as this may cause electric shock or short circuit when the liquid is spilled.
- Page 8 PRECAUTIONS FOR SAFE OPERATION CAUTION This unit must be plugged into a dedicated circuit protected by branch circuit breaker. Use a dedicated power source as indicated on the rating label attached to the unit. multiple-tap may cause fire resulting from abnormal heating. Connect the power supply plug to the power source firmly after removing the dust on the plug.
-
Page 9: Environmental Conditions
ENVIRONMENTAL CONDITIONS This equipment is designed to be safe at least under the following conditions (based on the IEC 61010-1): Indoor use; Altitude up to 2000 m; Temperature 5 C to 40 Maximum relative humidity 80 % for temperature up to 31 C decreasing linearly to 50 % relative humidity at 40 ... -
Page 10: Refrigerator Components
REFRIGERATOR COMPONENTS Refrigerator unit Glow starter Fluorescent Light switch [page 26] lamp [page 26] Space for temperature recorder [page 35] MPR-1014R Circuit breaker switch Remote alarm terminal [page 22]... - Page 11 REFRIGERATOR COMPONENTS 1. Control panel: The chamber temperature and alarms can be set through the keys on the control panel. The temperature display and indicators are also provided on the control panel. Refer to page 10 for details. 2. Location of battery kit for power failure alarm: The battery kit (optional) alerts the power failure by the alarm indicator and alarm buzzer.
-
Page 12: Control Panel Components
REFRIGERATOR COMPONENTS Control panel components DOOR ALARM TEMPERATURE( BUZZER 1. Door check indicator (DOOR): The red At “setting mode”; moves the operator through LED lamp is lit when the door is opened. digit on the display. [page 15 to page 21] ... -
Page 13: Installation Site
INSTALLATION SITE To operate this unit properly and to obtain maximum performance, install the unit in a location with the following conditions: A location not compliance with the following conditions may cause poor performance, failure or accident. A location not subjected to direct sunlight Do not install the unit under direct sunlight. -
Page 14: Installation
INSTALLATION 1. After unpackaging Remove all transportation packaging materials and tapes. Open the doors and ventilate the unit. If the outside panels are dirty, clean them with a diluted neutral dishwashing detergent. Undiluted detergent can damage the plastic components. For the dilution, refer to the instruction of the detergent. - Page 15 INSTALLATION 5. Installation of shelves The shelves are packaged all together. Set the shelves in the standard position before start-up of the unit. Set the shelf stopper to the following location (5 locations) on the shelf support to adjust the shelves in the standard position: 1) The sixth hole under the first screw from the top (top screw) [Fig.
-
Page 16: Start-Up Of Unit
START-UP OF UNIT Follow the procedures for the initial and consequent operations of the unit. At the recovery after power failure, the operation is start-up automatically with the setting before power failure. [page 21] 1. Connect the power supply cord to the dedicated outlet with appropriate rating. ►... -
Page 17: Chamber Temperature Setting
CHAMBER TEMPERATURE SETTING Set the chamber temperature according to the condition of use. This refrigerator can keep the stored items for long period under appropriate temperature. Setting range of chamber temperature: between 2 C and 14 Initial setting (factory setting): 5 <Important>... -
Page 18: Lock Of Chamber Temperature
LOCK OF CHAMBER TEMPERATURE The setting of chamber temperature can be protected to avoid an accidental change. When the lock is ON, the change of chamber temperature setting through the key pad is not available. Initial setting (factory setting): lock OFF Display Mode Function... -
Page 19: Defrost Of Evaporator
DEFROST OF EVAPORATOR The following 2 kinds of defrost methods are provided with this refrigerator. Both defrost methods are controlled automatically. Cycle defrost To keep the chamber temperature stable, the refrigeration compressor is cycled on and off. During “off” period any frost which has accumulated on the evaporator is melted by energizing a defrost heater. -
Page 20: Alarm Temperature Setting
ALARM TEMPERATURE SETTING Setting of high temperature alarm By setting the high temperature alarm, the alarm indicator and the temperature display blink and the alarm buzzer operates (after 15 minutes) when the chamber temperature is over the setting of high temperature alarm. -
Page 21: Setting Of Low Temperature Alarm
ALARM TEMPERATURE SETTING Setting of low temperature alarm By setting the low temperature alarm, the alarm indicator and temperature display blink and alarm buzzer operates (after 15 minutes) when the chamber temperature is below the setting of low temperature alarm. Set the low temperature alarm to protect the stored items against the damage resulting from temperature lowering. -
Page 22: Setting Of Delay Of Door Alarm
SETTING OF DELAY OF DOOR ALARM The door check indicator is lit when the door is opened, and the alarm buzzer sounds with some delay to notice the door opening. The delay time (between lighting of the door check indicator and activation of the alarm buzzer) can be changed. -
Page 23: Setting Of Ringback Of Alarm Buzzer
SETTING OF RINGBACK OF ALARM BUZZER The alarm buzzer operates again after a certain period (ringback time) even if the alarm buzzer is silenced by pressing the alarm buzzer stop key (BUZZER) when the same alarm status is continued. Set the ringback time to prevent the misidentify the alarm status. ... -
Page 24: Remote Alarm Terminal
REMOTE ALARM TERMINAL The alarm status is noticed to a remote location when a remote alarm equipment (commercial item) is connected to the remote alarm terminal. It is recommended to install a remote alarm equipment (commercial item) when the refrigerator is installed in a desolate location so that an alarm status is noticed to an operator. -
Page 25: Alarm Functions
ALARM FUNCTIONS This unit has the alarms functions shown below. Alarms Situation Indication Alarm buzzer Remote alarm If the chamber temp. is higher High temp. Alarm indicator blinks. Intermittent tone with Alarm status with than the high temp. alarm alarm Chamber temp. -
Page 26: Self Diagnostic Functions
SELF DIAGNOSTIC FUNCTIONS This unit has the self diagnostic functions shown below. Self diagnostic Situation Indication Alarm buzzer Remote alarm Alarm indicator blinks. If the thermal sensor is E01 and chamber temp. are disconnected. displayed alternately. Alarm indicator blinks. If the thermal sensor is E02 and chamber temp. -
Page 27: Routine Maintenance
ROUTINE MAINTENANCE WARNING Always disconnect the power supply to the unit prior to any repair or maintenance of the unit in order to prevent electric shock or injury. Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. -
Page 28: Replacement Of Fluorescent Lamp
ROUTINE MAINTENANCE Replacement of fluorescent lamp Follow the procedure below when replacing a fluorescent lamp. The fluorescent lamp is located vertically at the back of the center mullion. [Fig. 1] 1. Turn off the light switch and disconnect the power Fluorescent lamp supply plug of the refrigerator. -
Page 29: Cleaning Of Evaporating Tray
ROUTINE MAINTENANCE Cleaning of evaporating tray 1. As shown in Fig. 1, remove 2 hand screws on the bottom of the unit cover and remove the unit cover. 2. The evaporating tray is installed in the back. To remove the evaporating tray, lift slightly and pull the evaporating tray as shown in Fig. -
Page 30: Cleaning Of Filter
ROUTINE MAINTENANCE Cleaning of filter The filter is located in the right inside the unit cover. Clean the filter once a month to keep the refrigerating performance and condition of refrigerating unit. To clean the filter, follow the procedure below. WARNING Do not touch a condenser behind the filter when removing the filter for cleaning. -
Page 31: Troubleshooting
TROUBLESHOOTING If the unit malfunctions, check out the following before calling for service. Malfunction Check/Remedy If nothing operates even □ The unit is not connected to the power supply properly. when plugged in □ The capacity and voltage of power supply is not sufficient. □... -
Page 32: Disposal Of Unit
DISPOSAL OF UNIT WARNING If the unit is to be stored unused in an unsupervised area for an extended period ensure that children do not have access and doors cannot be closed completely. The disposal of the unit should be accomplished by appropriate personnel. Always remove doors to prevent accidents such as suffocation. - Page 33 DISPOSAL OF UNIT Information on Disposal for Users of Waste Electrical & Electronic Указания за изхвърляне на електрически и електронни отпадъци (за Equipment (private households) битови потребители) This symbol on the products and/or accompanying documents Този символ върху изделия и-или в придружаваща means that used electrical and electronic products should not документация...
- Page 34 DISPOSAL OF UNIT Oplysninger til brugerne om afhændelse af elektriske apparater og Informaţii pentru utilizatori, privind eliminarea echipamentelor electrice şi elektronisk udstyr (private husholdninger) electronice uzate (proprietate particulară) Når produkter og/eller medfølgende dokumenter indeholder Acest simbol, de pe produse şi/sau documentele însoţitoare, dette symbol, betyder det, at elektriske apparater og elektronisk are semnificaţia că...
- Page 35 DISPOSAL OF UNIT Informace pro uživatele k likvidaci elektrických a elektronických zařízení Informacija naudotojams dėl nenaudojamos elektros ir elektroninės (domácnosti) įrangos utilizacijos (naudojantiems ją buityje) Tento symbol na produktech anebo v průvodních dokumentech Šis simbolis, pažymėtas ant gaminių ir / arba lydimųjų znamená, že použité...
- Page 36 DISPOSAL OF UNIT Informacije za uporabnike o odstranitvi odpadne električne in elektronske Tietoja sähkö- ja elektroniikkalaitteiden hävittämisestä (kotitaloudet) opreme (zasebna gospodinjstva) Tämä symboli tuotteissa ja/tai niiden käyttöohjeissa osoittaa, Ta simbol, ki se nahaja na izdelkih in/ali priloženih dokumentih, että käytettyjä sähkö- ja elektroniikkalaitteita ei saa hävittää pomeni, da se rabljeni električni in elektronski izdelki ne smejo tavallisen kotitalousjätteen mukana.
-
Page 37: Temperature Recorder
TEMPERATURE RECORDER The chamber temperature is recorded and maintained by attaching a temperature recorder available as an optional component. For the attachment of a temperature recorder, an optional recorder fixing is necessary. Temperature recorder Recorder fixing MTR-0621LH MPR-S30 MTR-G04A (AC 100 V to 120 V) MPR-S7 MTR-G04C (AC 220 V to 240 V) ... -
Page 38: Installation Of Temperature Recorder
INSTALLATION OF TEMPERATURE RECORDER Attachment of MTR-0621LH 1. Remove the right bottom shelf (right bottom drawer for MPR-1014R) in the chamber. 2. Unscrew the screw fixing the panel cover at the space for temperature recorder and open the panel cover. [Fig. 1] Shaft ... - Page 39 INSTALLATION OF TEMPERATURE RECORDER 7. Fix the recorder sensor to the sensor fixture. [Fig. 5] The center of the recorder sensor should be the center Sensor fixture of the sensor fixture. 8. Replace the insulation to the sensor port and cover the sensor port with the putty.
-
Page 40: Attachment Of Mtr-G04A Or Mtr-G04C
INSTALLATION OF TEMPERATURE RECORDER Attachment of MTR-G04A or MTR-G04C 1. Remove the right bottom shelf (right bottom drawer for MPR-1014R) in the chamber. 2. Unscrew the screw fixing the panel cover at the space for temperature recorder and open the panel cover. [Fig. 1] Shaft ... - Page 41 INSTALLATION OF TEMPERATURE RECORDER 7. Fix the recorder sensor to the sensor fixture. [Fig. 5] The center of the recorder sensor should be the center Sensor fixture of the sensor fixture. 8. Replace the insulation to the sensor port and cover the sensor port with the putty.
-
Page 42: Battery For Power Failure Alarm
BATTERY FOR POWER FAILURE ALARM The alarm indicator blinks and the alarm buzzer sounds to notice the power failure when a battery for power failure alarm is installed. For the installation of the battery for power failure alarm, a battery mounting box (MPR-48B1), an optional component is necessary. - Page 43 BATTERY FOR POWER FAILURE ALARM 5. Put the battery fixture over the battery and fix the battery Battery fixture box and battery fixture by 4 screws. [Fig. 4] Screw 6. Connect the harness to the battery connector and battery switch [Fig. 5] and bind the harnesses by the clip on the battery fixture.
-
Page 44: Setting For Battery Before Starting
SETTING FOR BATTERY BEFORE STARTING After installing the optional battery mounting box (MPR-48B1), setting on the main unit is required. Contact our sales representative or agent for setting. -
Page 45: Specifications
SPECIFICATIONS Product name Pharmaceutical Refrigerator MPR-1014 MPR-1014R External dimensions W1800 mm x D600 mm + (58) mm x H1790 mm Internal dimensions W1700 mm x D465 mm x H1300 mm Effective capacity 1033 L 1029 L Exterior Painted steel Interior Stainless steel Door Sliding type, 2-layer pair glass with heat ray reflection film x 2... -
Page 46: Performance
PERFORMANCE Product name Pharmaceutical Refrigerator MPR-1014 Model number MPR-1014-PT MPR-1014-PA MPR-1014-PK MPR-1014-PE MPR-1014-PR Temperature control range C to +14 Usable ambient temperature C to +35 Noise level 42 dB/44 dB (A scale) (50 Hz/60 Hz) Maximum pressure 2239 kPa Rated voltage AC 110 V AC 115 V AC 220 V... -
Page 47: Safety Check Sheet
CAUTION Please fill in this form before servicing. Hand over this form to the service engineer to keep for his and your safety. Safety check sheet 1. Unit contents: □ □ Risk of infection: □ □ Risk of toxicity: □ □... - Page 48 1-1-1 Sakada, Oizumi-machi, Ora-gun, Gunma 370-0596, Japan Printed in Japan LDCL035900-1 © PHC Corporation 2018 S0418-11118...
