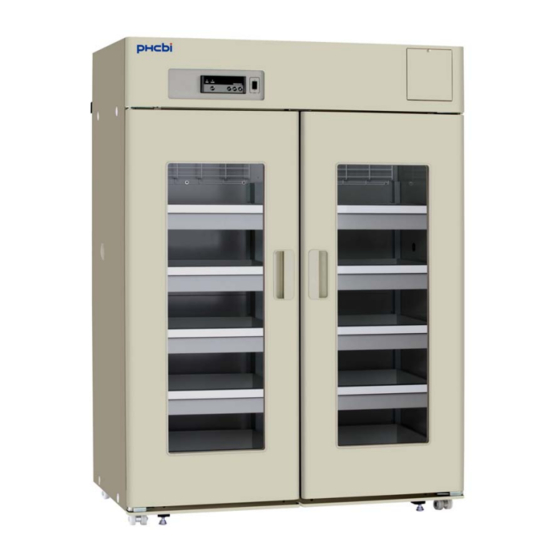

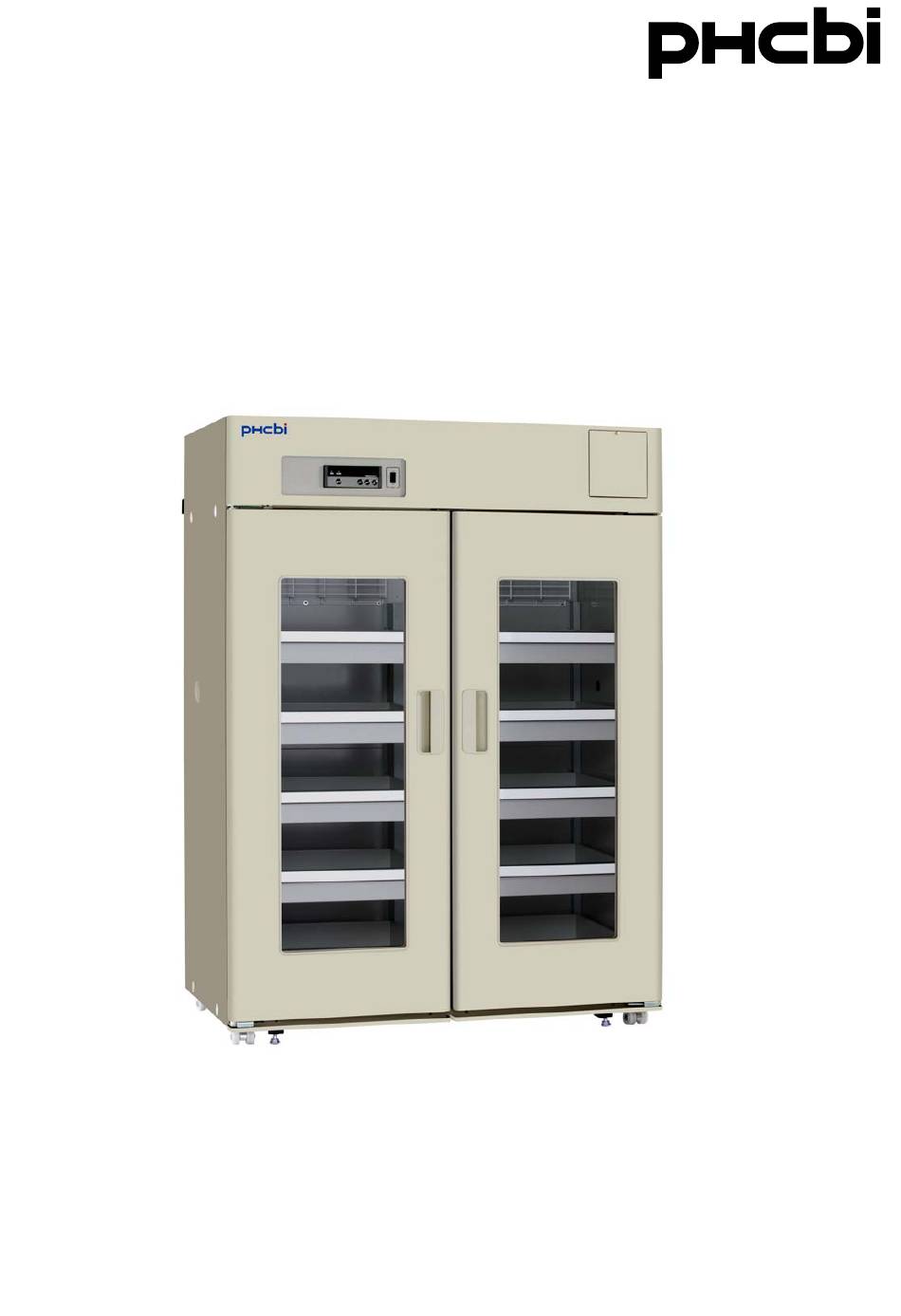

- Page 1 Operating Instructions Pharmaceutical Refrigerator MPR-1411R MPR-1411 Series MPR-1411R Please read the operating instructions carefully before using this product, and keep the operating instructions for future use. See page 32 for all model numbers.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ································································2 PRECAUTIONS FOR SAFE OPERATION ································3 SYMBOLS ON UNIT ····························································6 ENVIRONMENTAL CONDITIONS ··········································7 REFRIGERATOR COMPONENTS ·········································8 Inside of front cover ······················································ 10 Control panel ······························································· 11 INSTALLATION SITE ························································ 12 INSTALLATION ································································ 13 START-UP OF UNIT ························································· 14 STOCK OF CONTAINERS ··················································... -
Page 4: Introduction
INTRODUCTION Read the operating instructions carefully before using the appliance and follow the instructions for safety operation. PHC Corporation never guarantees any safety if the appliance is used for any objects other than intended use or used by any procedures other than those mentioned in the operating instructions. ... -
Page 5: Precautions For Safe Operation
PRECAUTIONS FOR SAFE OPERATION It is imperative that the user complies with the operating instructions as it contains important safety advice. Items and procedures are described so that you can use this unit correctly and safely. If the precautions advised are followed, this will prevent possible injury to the user and any other person. - Page 6 PRECAUTIONS FOR SAFE OPERATION WARNING Do not use the unit outdoors. Current leakage or electric shock may result if the unit is exposed to rain water. Only qualified engineers or service personnel should install the unit. The installation by unqualified personnel may cause electric shock or fire. Install the unit on a sturdy floor and take an adequate precaution to prevent the unit from turning over.
- Page 7 PRECAUTIONS FOR SAFE OPERATION WARNING Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. These may be harmful to your health. Never splash water directly onto the unit as this may cause electric shock or short circuit. Never put containers with liquid on the unit as this may cause electric shock or short circuit when the liquid is spilled.
-
Page 8: Symbols On Unit
PRECAUTIONS FOR SAFE OPERATION CAUTION This unit must be plugged into a dedicated circuit protected by branch circuit breaker. Use a dedicated power source as indicated on the rating label attached to the unit. A multiple-tap may cause fire resulting from abnormal heating. Connect the power supply plug to the power source firmly after removing the dust on the plug. -
Page 9: Environmental Conditions
ENVIRONMENTAL CONDITIONS This equipment is designed to be safe at least under the following conditions (based on the IEC 61010-1): Indoor use; Altitude up to 2000 m; Ambient temperature 5 C to 40 Maximum relative humidity 80 % for temperature up to 31 C decreasing linearly to 50 % relative humidity at 40 ... -
Page 10: Refrigerator Components
REFRIGERATOR COMPONENTS MPR-1411 MPR-1411R Rear side... - Page 11 REFRIGERATOR COMPONENTS 1. Front cover: A front cover opens when a bottom part is pulled to the front. Open this cover when you clean the condenser filter, or use a remote alarm terminal. Refer to page 10. 2. Control panel: Panel opens when the right top of the lower part cover is pushed. Refer to page 11. 3.
-
Page 12: Inside Of Front Cover
REFRIGERATOR COMPONENTS Inside of front cover 1. Condenser filter: This filter is for prevention of condenser clogged up. Clean the condenser filter every 3 month. 2. Remote alarm terminal: This is used to connect the unit to an exterior alarm to notify users of any malfunction. -
Page 13: Control Panel
REFRIGERATOR COMPONENTS Control panel 1. Door alarm lamp (DOOR): This lamp is lit when the door is opened. 2. Alarm lamp (ALARM): This lamp flashes during an alarm condition. 3. Digital temperature indicator: This indicator shows the present chamber temperature or set temperature. -
Page 14: Installation Site
INSTALLATION SITE To operate this unit properly and to obtain maximum performance, install the unit in a location with the following conditions: A location not subjected to direct sunlight Do not install the unit under direct sunlight. Installation in a location subjected to direct sunlight cannot obtain the intended performance. -
Page 15: Installation
INSTALLATION 1. Removing the packaging materials and tapes Remove all transportation packaging materials and tapes. Open the doors and ventilate the unit. If the outside panels are dirty, clean them with a diluted neutral dishwashing detergent. (Undiluted detergent can damage the plastic components. For the dilution, refer to the instruction of the detergent.) After the cleaning with the diluted detergent, always wipe it off with a wet cloth. -
Page 16: Start-Up Of Unit
START-UP OF UNIT Use the following procedure to start trial operation or actual operation of the unit. 1. Connect the power supply plug to the dedicated outlet with appropriate rating. CAUTION If the unit is unplugged or the power to the unit is interrupted, do not restart the unit for at least 5 minutes. This protects the compressor. -
Page 17: Stock Of Containers
STOCK OF CONTAINERS Always distribute items so as not to disturb the air circulation in the chamber. Disruption of the air flow can cause items to freeze or reduce the uniformity of the chamber temperature. Never put any articles on the top of the unit. Intake air vent Do not block this vent with containers. -
Page 18: Chamber Temperature Setting
CHAMBER TEMPERATURE SETTING Table 1 shows the basic procedure for setting the chamber temperature. Perform key operations in the sequence indicated in the table. The example in the table is based on the assumption that the desired temperature is 4 Note: The chamber temperature is set to 5 C at the factory. -
Page 19: Alarm Temperature Setting
ALARM TEMPERATURE SETTING This unit is provided with both high and low temperature alarms. The temperature at which the alarm is activated may be changed. The available set range for high temperature alarm is between +2 C and +14 C and -2 C and -14 C for low temperature alarm against the chamber temperature. -
Page 20: Setting Of Delay Of Door Alarm
SETTING OF DELAY OF DOOR ALARM The door check indicator is lit when the door is opened, and the alarm buzzer sounds with some delay to notice the door opening. The delay time (between lighting of the door check indicator and activation of the alarm buzzer) can be changed. -
Page 21: Setting Of Alarm Resume Time
SETTING OF ALARM RESUME TIME The alarm buzzer and remote alarm are silenced by pressing the buzzer stop key (BUZZER) on the control panel during alarm condition. However, if the alarm condition is continued after the “alarm resume time” has passed, the buzzer sounds again. It is possible to change the alarm resume time by the procedure shown in the Table.6. -
Page 22: Defrost Cycles
DEFROST CYCLES There is no need for routine defrosting of the unit as this occurs automatically as follows: Cycle defrost When the ambient humidity is high, or a large amount of damp product is being stored inside the chamber, there is a possibility that cycle defrost may not be enough to remove all of the frost on the evaporator. -
Page 23: Alarms & Safety Functions
ALARMS & SAFETY FUNCTIONS This unit has the alarms and safety functions shown in Table 7, and also self diagnostic functions. Table 7 Alarms and safety functions Alarm & Safety Situation Indication Buzzer Safety operation If the chamber temperature deviates from Alarm lamp is flashed. -
Page 24: Routine Maintenance
ROUTINE MAINTENANCE WARNING Always disconnect the power supply to the unit prior to any repair or maintenance of the unit in order to prevent electric shock or injury. Ensure you do not inhale or consume medication or aerosols from around the unit at the time of maintenance. -
Page 25: Replacement Of Fluorescent Lamp
ROUTINE MAINTENANCE Replacement of fluorescent lamp The fluorescent lamp is placed vertically at the center of the chamber. Follow the procedure below to replace the lamp. 1. Turn off the fluorescent light switch and disconnect Lamp the power supply plug. 2. -
Page 26: Replacement Of Glow Starter
ROUTINE MAINTENANCE Replacement of glow starter A glow starter is located inside the front cover. Water-proof rubber 1. Disconnect the power supply plug. Socket 2. Remove the water-proof rubber. 3. Remove the glow starter and replace with a new one. 4. -
Page 27: Troubleshooting
TROUBLESHOOTING If the unit malfunctions, check out the following before calling for service. Malfunction Check/Remedy If nothing operates even There is a power failure. when plugged in The circuit breaker is activated. The unit is not connected to the power supply. When no key operation is ... - Page 28 DISPOSAL OF UNIT Information on Disposal for Users of Waste Electrical & Electronic Указания за изхвърляне на електрически и електронни отпадъци (за Equipment (private households) битови потребители) This symbol on the products and/or accompanying documents Този символ върху изделия и-или в придружаваща means that used electrical and electronic products should not документация...
- Page 29 DISPOSAL OF UNIT Oplysninger til brugerne om afhændelse af elektriske apparater og Informaţii pentru utilizatori, privind eliminarea echipamentelor electrice şi elektronisk udstyr (private husholdninger) electronice uzate (proprietate particulară) Når produkter og/eller medfølgende dokumenter indeholder Acest simbol, de pe produse şi/sau documentele însoţitoare, dette symbol, betyder det, at elektriske apparater og elektronisk are semnificaţia că...
- Page 30 DISPOSAL OF UNIT Informace pro uživatele k likvidaci elektrických a elektronických zařízení Informacija naudotojams dėl nenaudojamos elektros ir elektroninės (domácnosti) įrangos utilizacijos (naudojantiems ją buityje) Tento symbol na produktech anebo v průvodních dokumentech Šis simbolis, pažymėtas ant gaminių ir / arba lydimųjų znamená, že použité...
- Page 31 DISPOSAL OF UNIT Informacije za uporabnike o odstranitvi odpadne električne in elektronske Tietoja sähkö- ja elektroniikkalaitteiden hävittämisestä (kotitaloudet) opreme (zasebna gospodinjstva) Tämä symboli tuotteissa ja/tai niiden käyttöohjeissa osoittaa, Ta simbol, ki se nahaja na izdelkih in/ali priloženih dokumentih, että käytettyjä sähkö- ja elektroniikkalaitteita ei saa hävittää pomeni, da se rabljeni električni in elektronski izdelki ne smejo tavallisen kotitalousjätteen mukana.
-
Page 32: Temperature Recorder (Option)
TEMPERATURE RECORDER (OPTION) CAUTION Always disconnect the power supply to the unit prior to attachment of a temperature recorder in order to prevent electric shock or injury. A temperature recorder is available for this refrigerator as an optional accessory. Contact our sales representative or agent for the installation of the temperature recorder. -
Page 33: Specifications
SPECIFICATIONS Product name Pharmaceutical Refrigerator MPR-1411/MPR-1411R Model No. MPR-1411 MPR-1411R External dimensions W1440 mm x D830 mm x H1950 mm Internal dimensions W1320 mm x D710 mm x H1500 mm Effective capacity 1364 L 1359 L Exterior Painted steel Interior Painted steel Door Double layer pair glass/steel plate, automatic closing mechanism, 2 doors... -
Page 34: Performance
PERFORMANCE Product name Pharmaceutical Refrigerator MPR-1411/MPR-1411R Model No. MPR-1411-PA MPR-1411-PB MPR-1411-PK MPR-1411-PE MPR-1411R-PA MPR-1411R-PB MPR-1411-PR MPR-1411R-PE MPR-1411R-PK MPR-1411R-PR Cooling performance C to 14 C (ambient temperature; -5 C to 0 C, no load) C to 23 C (ambient temperature; 0 C to 35 C, no load) Temperature control range... -
Page 35: Safety Check Sheet
CAUTION Please fill in this form before servicing. Hand over this form to the service engineer to keep for his and your safety. Safety check sheet 1. Unit contents: □ □ Risk of infection: □ □ Risk of toxicity: □ □... - Page 36 1-1-1 Sakada, Oizumi-machi, Ora-gun, Gunma 370-0596, Japan Printed in Japan LDCL036600-1 © PHC Corporation 2018 S0418-11118...
