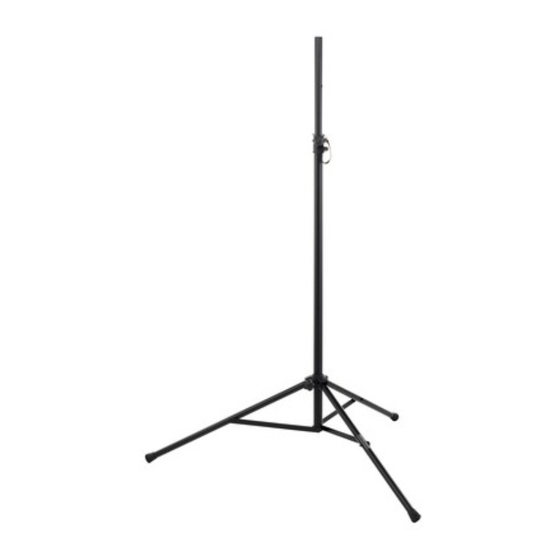

- Page 1 BS-2010 Stand...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 30.10.2023, ID: 320824 (V3)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features................................9 Operation..............................10 Technical specifications........................14 Protecting the environment......................16 BS-2010 Stand... - Page 4 BS-2010 Stand...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. - Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This speaker stand is used for stable fixing and height-adjustable installation of loudspeaker cabinets. Use the product only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 8 Safety instructions CAUTION! Risk of injury due to tipping of stand on an unsuitable ground! When the stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid ground. CAUTION! Risk of injury due to tipping of the stand from excessive loading! In case of excessive loading, the stand might tip over, causing injury and property damage.
-
Page 9: Features
Features Features Special characteristics: Steel speaker stand Extendible up to a height of about 2 m Centric load capacity up to 30 kg 25 mm pipe diameter at the pole mount Including adapter from 25 mm diameter to M6 thread (12 mm long) Foot diameter 1000 mm Transport length when folded: 1.19 m BS-2010... -
Page 10: Operation
Operation Operation Unpack and check carefully there is no transportation damage before using the product. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 Operation CAUTION! Risk of injury due to tipping of the stand during loaded transport! If the stand is moved without having removed the installed devices, the stand may tip over and cause injuries and property damage. Remove the installed devices before transporting the stand. Comply with regulations When installing and operating, make sure to follow the standards and regulations that apply in your country.
- Page 12 Operation Setup Perform the steps described below: Unfold the feet of the stand until the cross braces are in a horizontal position. Fix this position with the safety screw on the carriage to which the three feet are attached. Pull out the safety cotter and loosen the safety screw on the extension tube. Pull out the extension tube to the desired height and slide the safety cotter through the corresponding grid hole.
- Page 13 Operation Disassembly Remove the speaker box. Pull out the safety cotter and hold the extension tube while you loosen the safety screw on the extension tube. Slide the extension tube all the way down and slide the safety cotter through the corre‐ sponding grid hole.
-
Page 14: Technical Specifications
Technical specifications Technical specifications Height, max. 2.00 m Adjustable stand height 1.19 m … 2.00 m Footprint Æ 1.00 m Stand tube diameter Æ 25 mm Flange, Æ 25 mm Mount type Adapter, Æ 25 mm / M6 thread Load, max. (with centric load) 30 kg Transport length when folded 1.19 m... - Page 15 Technical specifications Further information Set of 2 stands Material Steel Crank stand Ringlock Pneumatics Foot type Tripod BS-2010 Stand...
-
Page 16: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 17 Notes BS-2010 Stand...
- Page 18 Notes BS-2010 Stand...
- Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
