BLAUBERG Ventilatoren VENTO Eco A50-4 Pro1 User Manual

BLAUBERG Ventilatoren VENTO Eco A50-4 Pro1 User Manual

Heat regeneration single-room reversible ventilator

Advertisement

Quick Links

Heat regeneration single-room reversible ventilator
vento eco a50-4 Pro1
vento eco2 a50-4 Pro1
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VENTO Eco A50-4 Pro1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BLAUBERG Ventilatoren VENTO Eco A50-4 Pro1

  • Page 1 Heat regeneration single-room reversible ventilator vento eco a50-4 Pro1 vento eco2 a50-4 Pro1 USER’S MANUAL...
  • Page 2: Table Of Contents

    vento eco www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................6 Mounting and set-up .................................. 8 Connection to power mains ..............................11 Technical maintenance ................................
  • Page 3 vento eco www.blaubergventilatoren.de The information in this user’s manual was correct at the time of the document’s preparation. The Company reserves the right to modify the technical characteristics, design, or configuration of its products at any time in order to incorporate the latest technological developments. Never touch the unit with wet or damp hands.
  • Page 4: Purpose

    It is equipped with a regenerator that enables supply of fresh filtered air heated by means of extract air heat energy recovery. The ventilator is designed for installation on external walls. The ventilator is rated for continuous operation. DELIVERY SET Quantity Name VENTO Eco A50-4 Pro1 VENTO Eco2 A50-4 Pro1 2 pcs. Air duct 1 pc. 2 pcs.
  • Page 5: Technical Data

    The air duct length depends on the unit model (refer to the designation key, Air duct length (wall thickness) page 4). Air duct length VENTO Eco A50-4 Pro1 250(150*)-500 (10”(6”)-20”) VENTO Eco2 A50-4 L Pro1 250 (150*)-700 (10”(6”)-28”) Ø 160 * Minimum air duct length with the hood for thin walls AH-S The ventilation hood model depends on the unit model.
  • Page 6: Design And Operating Principle

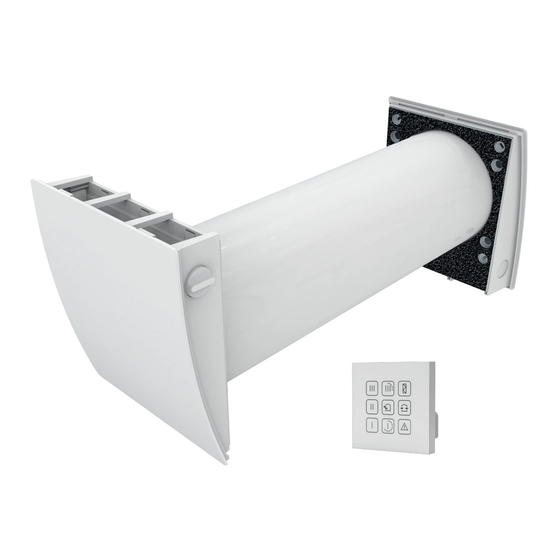

    vento eco www.blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE The ventilator consists of an indoor assembly unit with a decorative front panel, a cartridge, an air duct with a sound absorbing mat and an outer ventilation hood. Cartridge is the basic functioning part of the unit. It consists of a fan, a regenerator and two filters that ensure primary air filtration and prevent ingress of dust and foreign objects into the regenerator and the fan.
  • Page 7 vento eco www.blaubergventilatoren.de VENTILATOR OPERATION MODES The ventilator has two operation modes: Ventilation mode. The ventilator operates in the air supply or air extract mode at set speed. In this mode in case of installation of two ventilators one ventilator supplies air to the room and the other one extracts used air. Regeneration mode.
  • Page 8: Mounting And Set-Up

    vento eco www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. INSTALLATION OF WALL-MOUNTED CONTROL PANEL MAKE SURE THAT THE CONTROL PANEL IS NOT MANAGED. DO NOT USE A DAMAGED CONTROL PANEL! DO NOT INSTALL THE CONTROL PANEL ON AN UNEVEN SURFACE! WHEN TIGHTENING THE SCREWS DO NOT APPLY EXCESSIVE FORCES TO AVOID THE UNIT DEFORMATION.
  • Page 9 vento eco www.blaubergventilatoren.de VENTILATOR MOUNTING READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. DO NOT BLOCK THE AIR DUCT OF THE INSTALLED UNIT WITH DUST ACCUMULATING MATERIALS, SUCH AS CURTAINS, CLOTH SHUTTERS, ETC. AS IT PREVENTS AIR CIRCULATION IN THE ROOM. 1.
  • Page 10 vento eco www.blaubergventilatoren.de 3. Insert the sound absorbing roll in the air duct. Before inserting the sound absorbing mat adjust its length with respect to dimensions of the cartridge, indoor unit and ventilation hood. Insert the cartridge during adjustment in the air duct and close it with the internal grille.
  • Page 11: Connection To Power Mains

    vento eco www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.
  • Page 12 vento eco www.blaubergventilatoren.de WIRING DIAGRAM FOR THE VENTILATOR WITH CONTROL PANEL WITH LCD DISPLAY Ventilator 1 Ventilator 2 (Air supply) (Air extract) 100-230 V 50/60 Hz VENTILATOR CONTROL The ventilator is controlled via the control panel. These parameters are editable with the control panel: •...
  • Page 13 vento eco www.blaubergventilatoren.de 1. Turning ventilator on. Connect the ventilator to power supply. The display shows the timer operating status. Press the button to turn the ventilator on. The display shows current speed, active operation mode and timer operating status. 2.
  • Page 14 vento eco www.blaubergventilatoren.de 5. Parameter setting in the engineering menu. filter servicing timer The serviced hour number is displayed. To reset the filter servicing timer press and hold the button for 4-5 seconds. configuration Parameter setting using the buttons. One ventilator 1. Two ventilators 2.
  • Page 15 vento eco www.blaubergventilatoren.de REMOTE VENTILATOR CONTROL Turning the unit on/o . Speed setting Regeneration mode The ventilator rotation direction changes to opposite every 70 seconds, alternately changing air supply and air extract. This operation mode enables Turning low speed heat regeneration. for 8 hours Turning high speed Ventilation mode.
  • Page 16: Technical Maintenance

    vento eco www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Maintenance of the ventilator consists in regular cleaning of the surfaces of dust and cleaning or replacement of the filters. To access the main serviced units follow the next steps: Remove the front panel of the indoor unit, disconnect the connector and pull the cord to remove the cartridge from the air duct.
  • Page 17: Troubleshooting

    vento eco www.blaubergventilatoren.de TROUBLESHOOTING TROUBLES AND TROUBLESHOOTING Trouble Possible reasons Troubleshooting The fan does not move up during start-up of the unit. Contact a qualified electrician to check power The control panel displays No power supply. supply and troubleshoot a connection error if no information and does not required.
  • Page 18: Manufacturer's Warranty

    vento eco www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 19: Certificate Of Acceptance

    vento eco www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Heat regeneration single-room reversible ventilator Model VENTO Eco ____________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 20 www.blaubergventilatoren.de B127-1EN-01...

This manual is also suitable for:

Vento eco2 a50-4 pro1
