BLAUBERG Ventilatoren Solo A35A S4 Pro R User Manual

BLAUBERG Ventilatoren Solo A35A S4 Pro R User Manual

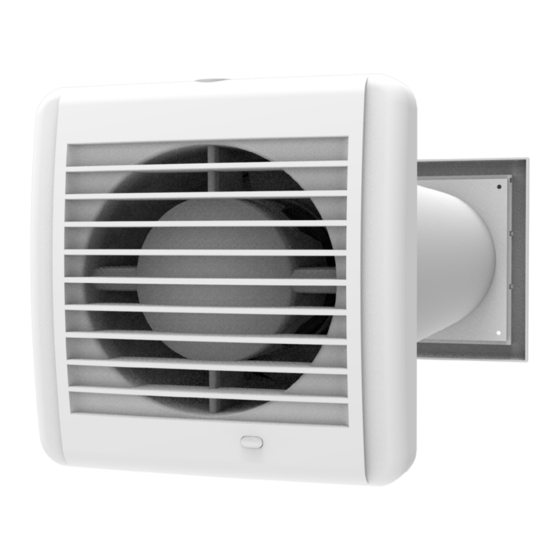

Single-room reversible energy recovery ventilator

Advertisement

Quick Links

Single-room reverSible energy recovery ventilator
Solo A35A S4 Pro R
Solo A35 S4 Pro R
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solo A35A S4 Pro R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BLAUBERG Ventilatoren Solo A35A S4 Pro R

  • Page 1 Single-room reverSible energy recovery ventilator Solo A35A S4 Pro R Solo A35 S4 Pro R USER’S MANUAL...
  • Page 2: Table Of Contents

    Solo A35(A) S4 Pro R www.blaubergventilatoren.de CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................5 Technical data ....................................6 Design and operating principle ............................7 Installation and set-up................................8 Connection to power mains ..............................10 Technical maintenance ................................
  • Page 3: Safety Requirements

    Solo A35(A) S4 Pro R www.blaubergventilatoren.de SAFETY REQUIREMENTS All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit. Disconnect the unit from power supply prior to any connection, servicing, maintenance, and repair operations.
  • Page 4 Solo A35(A) S4 Pro R www.blaubergventilatoren.de • Do not allow children to play with the unit. • Cleaning and user maintenance shall not be made by children without supervision. • The information in this user’s manual was correct at the time of the document’s preparation. •...
  • Page 5: Purpose

    Solo A35(A) S4 Pro R www.blaubergventilatoren.de PURPOSE The ventilator is designed to ensure continuous mechanical air exchange in flats, cottages, hotels, cafes and other domestic and public premises. The ventilator is equipped with a regenerator that enables supply of fresh filtered air heated by means of extract air heat energy recovery.
  • Page 6: Technical Data

    Solo A35(A) S4 Pro R www.blaubergventilatoren.de TECHNICAL DATA The temperature in the room where the indoor unit of the ventilator is installed must be in the range from +1 ˚C to +40 ˚C with relative humidity up to 60 %. The transported air temperature must be in the range from -15 ˚C to +40 ˚C. The ventilator is rated as a class II electric appliance.
  • Page 7: Design And Operating Principle

    Solo A35(A) S4 Pro R www.blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE The ventilator consists of an air duct, a ventilation unit and an outer ventilation hood. Two filters, a regenerator, a distance ring and two air flow rectifiers are installed in the air duct. The air filters are designed to purify supply air and prevent foreign object ingress into the heat exchanger and the fan.
  • Page 8: Installation And Set-Up

    Solo A35(A) S4 Pro R www.blaubergventilatoren.de INSTALLATION AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. DO NOT BLOCK THE AIR DUCT OF THE INSTALLED VENTILATOR WITH DUST ACCUMULATING MATERIALS, SUCH AS CURTAINS, CLOTH SHUTTERS, ETC. AS IT PREVENTS AIR CIRCULATION IN THE ROOM. 1.
  • Page 9 Solo A35(A) S4 Pro R www.blaubergventilatoren.de 4. Press the latches on the side surfaces of the decorative grille to remove the front part of the fan. 5. Attach the mounting plate and mark the places for the dowels with a pencil or marker. Drill the holes and insert the dowels. Then mount the mounting plate on the wall and install the rear part of the ventilation unit in the duct.
  • Page 10: Connection To Power Mains

    Solo A35(A) S4 Pro R www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.
  • Page 11: Technical Maintenance

    Solo A35(A) S4 Pro R www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Maintenance of the ventilator means regular cleaning of the ventilator surfaces of dust and cleaning and replacement of the filters. Accessing the main units for servicing and maintenance is as follows. Remove the front side of the ventilation unit by unscrewing the self-tapping screw.
  • Page 12: Storage And Transportation Regulations

    Solo A35(A) S4 Pro R www.blaubergventilatoren.de POSSIBLE REASONS AND TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line is connected correctly, No power supply. otherwise troubleshoot the connection error. When switching on the ventilator the fan does not Turn the ventilator off.
  • Page 13: Manufacturer's Warranty

    Solo A35(A) S4 Pro R www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 14: Certificate Of Acceptance

    Solo A35(A) S4 Pro R www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Single-room reversible energy recovery ventilator Model Solo A35 ________________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 15 Solo A35(A) S4 Pro R www.blaubergventilatoren.de...
  • Page 16 www.blaubergventilatoren.de B132EN-07...
