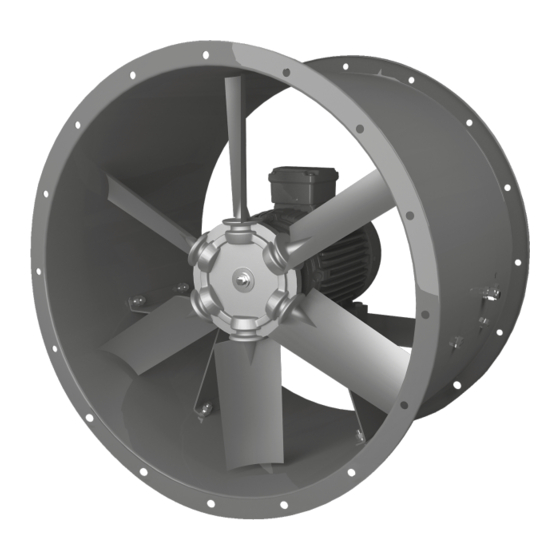

BLAUBERG Ventilatoren AXIS-P Series User Manual

BLAUBERG Ventilatoren AXIS-P Series User Manual

Pressurisation fan

Advertisement

Quick Links

AxiAl pressurisAtion fAn
Axis-P
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXIS-P Series and is the answer not in the manual?

Questions and answers

Summary of Contents for BLAUBERG Ventilatoren AXIS-P Series

  • Page 1 AxiAl pressurisAtion fAn Axis-P USER’S MANUAL...
  • Page 2: Table Of Contents

    Axis-p www.blaubergventilatoren.de CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................6 Technical data ....................................7 Unit design and operating principle ..........................8 Mounting and set-up .................................. 9 Connection to power mains ..............................11 Commissioning ....................................
  • Page 3: Safety Requirements

    Axis-p www.blaubergventilatoren.de SAFETY REQUIREMENTS • Please read the user’s manual carefully prior to installing and operating the unit. • All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit.
  • Page 4 Axis-p www.blaubergventilatoren.de • Do not touch the unit controls • Do not wash the unit with with wet hands. water. • Do not carry out the • Protect the electric parts of the installation and maintenance unit against ingress of water. operations with wet hands.
  • Page 5: Purpose

    PURPOSE The axial pressurisation fan of Axis-P series is used for ventilation of industrial, administrative, residential and other buildings. It is also used for pressurisation of fire-fighting equipment and fresh air supply in case of fire. The fan is intended for general ventilation in systems with high air flow rates.
  • Page 6: Designation Key

    Axis-p www.blaubergventilatoren.de DESIGNATION KEY Casing Motor Impeller Modification AxIS-P 6 3 0 K-2 D / 5.5- 8 / 3 5 / A L - U 1 - K Axis-P: axial pressurisation fan Standard size (air duct size) [mm] Casing modification: _: standard casing K: shortened casing Number of the motor poles...
  • Page 7: Technical Data

    Axis-p www.blaubergventilatoren.de TECHNICAL DATA • Transported air temperature depends on the applied climatic category (see the designation key). • The maximum permissible concentration of solids and dust in the handled air is 10 mg/m3. • The unit is rated as a Class I electrical appliance. •...
  • Page 8: Unit Design And Operating Principle

    Axis-p www.blaubergventilatoren.de UNIT DESIGN AND OPERATING PRINCIPLE Fan with a casing modi cation without terminal box Fan with a casing modi cation with a terminal box Impeller Impeller Access door Access door Inlet ring VK-AF * Inlet ring VK-AF * Protective mesh SZ-AF * Terminal box...
  • Page 9: Mounting And Set-Up

    Axis-p www.blaubergventilatoren.de MOUNTING AND SET-UP ALL OPERATIONS DESCRIBED IN THIS USER’S MANUAL MUST BE PERFORMED BY QUALIFIED PERSONNEL ONLY, PROPERLY TRAINED AND QUALIFIED TO INSTALL AND MAINTAIN VENTILATION EQUIPMENT. DO NOT ATTEMPT TO INSTALL THE PRODUCT YOURSELF. IT IS UNSAFE AND IMPOSSIBLE WITHOUT SPECIAL KNOWLEDGE. WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAINTENANCE AND REPAIR.
  • Page 10 Axis-p www.blaubergventilatoren.de Mounting in case of no ductwork upstream of the fan Obstructed space installation If the ductwork is not available at the fan inlet, the inlet cone VK-AF must To ensure normal operation of the fan in an obstructed space make sure be installed to improve aerodynamic parameters of the air flow.
  • Page 11: Connection To Power Mains

    Axis-p www.blaubergventilatoren.de CONNECTION TO POWER MAINS DISCONNECT THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. CONNECTION OF THE UNIT TO POWER MAINS IS ALLOWED BY A QUALIFIED ELECTRICIAN WITH A WORK PERMIT FOR THE ELECTRIC UNITS UP TO 1000 V AFTER CAREFUL READING OF THE PRESENT USER’S MANUAL.
  • Page 12 Axis-p www.blaubergventilatoren.de ASYNCHRONOUS ELECTRIC MOTOR STARTING METHODS There are several methods for starting asynchronous squirrel-cage electric motors. The most common methods are: direct-on-line (DOL), with a soft starter (SS) or with a frequency converter (FC). Direct-on-line starting In case of direct-on-line starting (i.e. by connecting the motor to the electric mains with a simple line contactor), the motor starting time significantly increases due to high inertia of the impeller, which, in turn, results in high in-rush starting currents in the circuit.
  • Page 13: Commissioning

    Axis-p www.blaubergventilatoren.de Problems associated with DOL starting The problems caused by DOL starting may be divided into two groups: An abrupt start causes mechanical shock, jolts in the mechanism, shock removal of free play etc. A heavy start cannot be completed. Let us review three variations of a heavy start: 1.
  • Page 14: Technical Maintenance

    Axis-p www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! PRIOR TO COMMENCING ANY TECHNICAL MAINTENANCE PUT UP A PROHIBITORY SIGN ON THE FAN STARTING PANEL: “DO NOT SWITCH ON! MEN AT WORK!” AVOID LIQUID SPILLS ON THE MOTOR! DO NOT USE AGGRESSIVE SOLVENTS AND SHARP OBJECTS FOR CLEANING! Prior to performing any technical maintenance and repair disconnect the fan from the electric mains and wait until its rotating parts come to a complete stop.
  • Page 15 Axis-p www.blaubergventilatoren.de The fan fails to reach the Fan motor overloaded. Eliminate the overload. required rotation speed due to Improper fan starting method. Use a soft starter or frequency converter to start the motor serious overheating of the fan (see “Asynchronous Electric Motor Starting Methods” motor.
  • Page 16: Storage And Transportation Regulations

    Axis-p www.blaubergventilatoren.de STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 °C to + 40 °C and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation.
  • Page 17: Manufacturer's Warranty

    Axis-p www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC.
  • Page 18 Axis-p www.blaubergventilatoren.de...
  • Page 19: Acceptance Certificate

    Axis-p www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Axial pressurisation fan Model Axis-P _______________________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 20 www.blaubergventilatoren.de B118EN-05...
