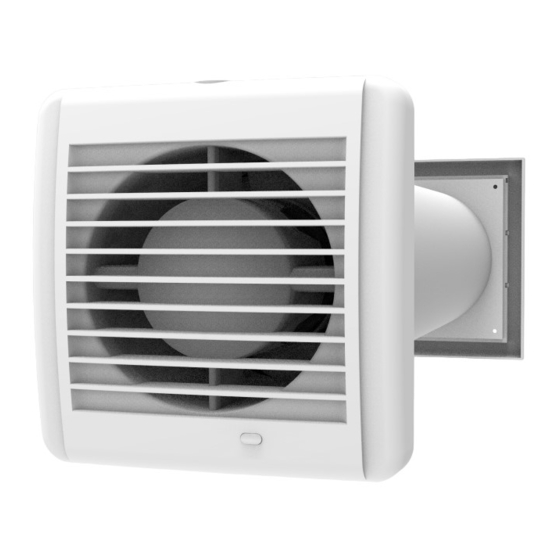

- Page 1 Single-room reverSible energy recovery ventilator Solo a35 S4 Pro r Solo a35 S4 Pro r v.2 Solo a50 S4 Pro r v.2 Solo a60 S4 Pro r v.2 USER’S MANUAL...
-
Page 2: Table Of Contents
Solo a35/50/60 S4 Pro r (v.2) www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and functioning ................................6 Mounting and set-up .................................. 7 Connection to power mains ..............................9 Technical maintenance ................................ - Page 3 Solo a35/50/60 S4 Pro r (v.2) www.blaubergventilatoren.de All operations described in this manual must be performed by qualified personnel only, properly trained and qualified to install, make electrical connections and maintain ventilation units. Do not attempt to install the product, connect it to the mains, or perform maintenance yourself. This is unsafe and impossible without special knowledge.
-
Page 4: Purpose
The ventilator is designed for installation on external walls. The unit is rated for continuous operation. DELIVERY SET NAME NUMBER Solo A35 S4 Pro R Solo A35 S4 Pro R V.2; Solo A50 S4 Pro R V.2; Solo A60 S4 Pro R V.2 Ventilator 1 pc. 1 pc. -
Page 5: Technical Data
A mounting the ventilator D1 thickness L Solo A35 S4 Pro R 120 – 125 Solo A35 S4 Pro R V.2 Solo A50 S4 Pro R V.2 145 – 150 Solo A60 S4 Pro R V.2 170 – 175... -
Page 6: Design And Functioning
Solo a35/50/60 S4 Pro r (v.2) www.blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE The ventilator consists of an air duct, a ventilation unit and an outer ventilation hood. Two filters, a regenerator, a distance ring and two air flow rectifiers are installed in the air duct. The air filters are designed to purify supply air and prevent foreign object ingress into the regenerator and the fan. -
Page 7: Mounting And Set-Up
Solo a35/50/60 S4 Pro r (v.2) www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. BEFORE INSTALLING ADDITIONAL EXTERNAL DEVICES, READ THE RELEVANT USER MANUALS DO NOT BLOCK THE AIR DUCT OF THE INSTALLED VENTILATOR WITH DUST ACCUMULATING MATERIALS, SUCH AS CURTAINS, CLOTH SHUTTERS, ETC. - Page 8 Solo a35/50/60 S4 Pro r (v.2) www.blaubergventilatoren.de 3. Install the assembled regenerator and the limit ring into the air duct. In Solo RA1-35-9 R and Solo RA1-35-9 R V.2 models, the limit ring is connected to the regenerator. In Solo RA1-50-9 R V.2 and Solo RA1-60-9 R V.2 models the limit ring is inserted separately.
-
Page 9: Connection To Power Mains
The unit is equipped with an electric motor, which has two fixed speeds. Controlling the Solo A35 S4 Pro R ventilator using a pull cord switch The ventilator is connected to power mains using a cord with a plug with a switch on the wire. - Page 10 Solo a35/50/60 S4 Pro r (v.2) www.blaubergventilatoren.de Controlling the Solo A35 S4 Pro R V.2, Solo A50 S4 Pro R V.2, Solo A60 S4 Pro R V.2 ventilator using the remote control The ventilator is connected to power mains using a cord with a plug.
-
Page 11: Technical Maintenance
Solo a35/50/60 S4 Pro r (v.2) www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION Maintenance of the ventilator means regular cleaning of the ventilator surfaces of dust and cleaning and replacement of the filters. Accessing the main units for servicing and maintenance is as follows. - Page 12 Solo a35/50/60 S4 Pro r (v.2) www.blaubergventilatoren.de 3. Replacing the battery in the remote control (when needed). No response of the ventilator for pressing the remote control buttons indicates the need to replace the battery. The battery type is CR2025. To replace the battery of the remote control, remove the battery holder with a battery.
-
Page 13: Storage And Transportation Regulations
Solo a35/50/60 S4 Pro r (v.2) www.blaubergventilatoren.de STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 °C to + 40 °C and relative humidity up to 70 %. •... -
Page 14: Manufacturer's Warranty
Solo a35/50/60 S4 Pro r (v.2) www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 15: Certificate Of Acceptance
Solo a35/50/60 S4 Pro r (v.2) www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Single-room reversible energy recovery ventilator Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 16 www.blaubergventilatoren.de B132EN-09...
