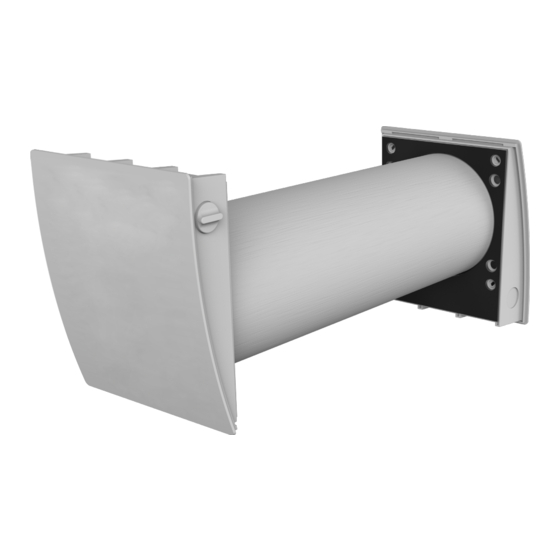

- Page 1 Single-room reverSible energy recovery ventilator vento eco a50-4 Pro vento eco2 a50-4 Pro USER'S MANUAL...
-
Page 2: Table Of Contents
vento eco(2) a50-4 Pro www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Unit design and operating principle ..........................6 Installation and set-up................................8 Connection to power mains and control ........................11 Technical maintenance ................................ - Page 3 vento eco(2) a50-4 Pro www.blaubergventilatoren.de • Do not change the power cable length at your own discretion. Do not bend the • Do not lay the power cable of the unit in power cable. Avoid damaging the power close proximity to heating equipment. cable.
-
Page 4: Purpose
vento eco(2) a50-4 Pro www.blaubergventilatoren.de PURPOSE The ventilator is designed to ensure continuous mechanical air exchange in flats, cottages, hotels, cafés and other domestic and public premises. The ventilator is equipped with a regenerator that enables supply of fresh filtered air heated by means of extract air heat energy recovery. -
Page 5: Technical Data
vento eco(2) a50-4 Pro www.blaubergventilatoren.de TECHNICAL DATA The ventilator is rated for indoor application with the ambient temperature ranging from -15 °C (5 °F) up to +40 °C (104 °F) and relative humidity up to 50 %. The unit is rated as a class II electric appliance. Ingress protection rating against access to hazardous parts and water ingress is IP24. -
Page 6: Unit Design And Operating Principle
vento eco(2) a50-4 Pro www.blaubergventilatoren.de Control panel Electrical parameters of the control panel The sensor panel contains touch buttons for Supply voltage, 50 (60) Hz [V] 100–240 unit control and an emergency indicator. Temperature range [°C] (°F) from +10 (+50) up to +45 (+113) Humidity range [%] 10-80 (no condensation) Service life, number of operating hours... - Page 7 vento eco(2) a50-4 Pro www.blaubergventilatoren.de Ventilator design Outer ventilation hood Prevents ingress of water and foreign objects into the ventilator. Each ventilator model has a matching outer hood model. Sound absorbing material A layer of sound-absorbing material for attenuation of noise generated during the ventilator operation. Cartridge Construction consisting of a fan, a regenerator and filters.
-
Page 8: Installation And Set-Up
vento eco(2) a50-4 Pro www.blaubergventilatoren.de INSTALLATION AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. WALL-MOUNTED CONTROL PANEL INSTALLATION MAKE SURE THAT THE CONTROL PANEL IS NOT DAMAGED. DO NOT USE A DAMAGED CONTROL PANEL! DO NOT INSTALL THE CONTROL PANEL ON AN UNEVEN SURFACE! WHILE TIGHTENING THE SCREWS, DO NOT APPLY EXCESSIVE FORCE TO PREVENT THE CONTROL PANEL CASING DEFORMATION. - Page 9 vento eco(2) a50-4 Pro www.blaubergventilatoren.de VENTILATOR MOUNTING READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. DO NOT BLOCK THE AIR DUCT OF THE INSTALLED UNIT WITH DUST ACCUMULATING MATERIALS, SUCH AS CURTAINS, CLOTH SHUTTERS, ETC. AS IT PREVENTS AIR CIRCULATION IN THE ROOM. 1.
- Page 10 vento eco(2) a50-4 Pro www.blaubergventilatoren.de 3. Insert the sound-absorbing layer in the air duct. Prior to installation adjust its length with respect to the dimensions of the cartridge, the indoor unit, and the outer hood. Insert the cartridge during adjustment in the air duct and cover it with the internal grille.
-
Page 11: Connection To Power Mains And Control
vento eco(2) a50-4 Pro www.blaubergventilatoren.de CONNECTION TO POWER MAINS AND CONTROL POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. - Page 12 vento eco(2) a50-4 Pro www.blaubergventilatoren.de EXTERNAL CONNECTIONS WIRING DIAGRAM OF THE VENTILATOR WITH A CONTROL PANEL Each unit is connected as an Each unit is connected as an air supply unit air exhaust unit T P + - T P + - 100–240 V 100–240 V 50 (60) Hz...
- Page 13 vento eco(2) a50-4 Pro www.blaubergventilatoren.de VENTILATOR CONTROL The ventilator is operated with a control panel. WARNING! • The control panel must be fixed on a surface in operational position! • Do not switch the buttons on the unsecured panel to avoid false speed switching! •...
- Page 14 vento eco(2) a50-4 Pro www.blaubergventilatoren.de AIR DUCT CLOSING The indoor unit has a swivel damper. To open or close the air duct, turn one of the handles on the side walls of the indoor unit until it stops, as shown in the Open figure.
-
Page 15: Technical Maintenance
vento eco(2) a50-4 Pro www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Maintenance of the ventilator means regular cleaning of the ventilator surfaces of dust and cleaning or replacement of the filters. To access the basic assembly units follow the steps: Remove the front part of the indoor unit, disconnect the connector and remove the cartridge from the air duct by pulling the cord. -
Page 16: Troubleshooting
vento eco(2) a50-4 Pro www.blaubergventilatoren.de TROUBLESHOOTING Possible faults and troubleshooting Problem Possible reasons Troubleshooting The fan does not start up during the ventilator start-up. Contact a qualified electrician to check mains The control panel displays No power supply. connection and eliminate a connection error if no information and does there is one. -
Page 17: Manufacturer's Warranty
vento eco(2) a50-4 Pro www.blaubergventilatoren.de MANUFACTURER'S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC. - Page 18 vento eco(2) a50-4 Pro www.blaubergventilatoren.de...
-
Page 19: Certificate Of Acceptance
vento eco(2) a50-4 Pro www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Single-room reversible energy recovery ventilator Model Vento Eco ____________ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 20 www.blaubergventilatoren.de B127-2EN-01...
