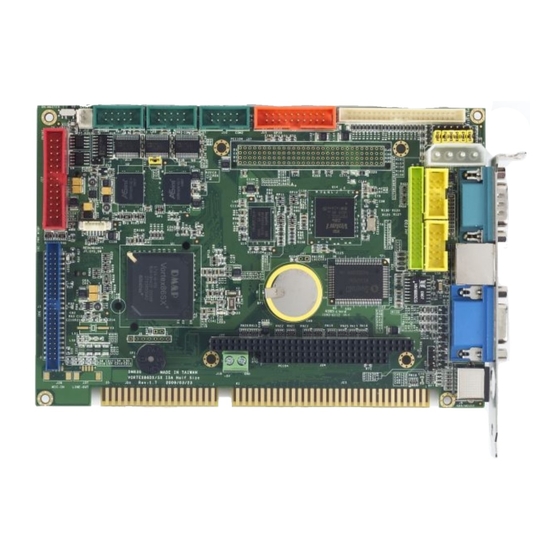

Full 16-bit ISA Bus
VSX-6124-FD-V2
DM&P Vortex86SX 300MHz
Half-Size CPU Module
with 4S/4USB/VGA/LCD/LAN/GPIO/FDD
128MB DDR2 Onboard
User's Manual
(Revision 1.1A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSX-6124-FD-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for ICOP Technology VSX-6124-FD-V2

Summary of Contents for ICOP Technology VSX-6124-FD-V2

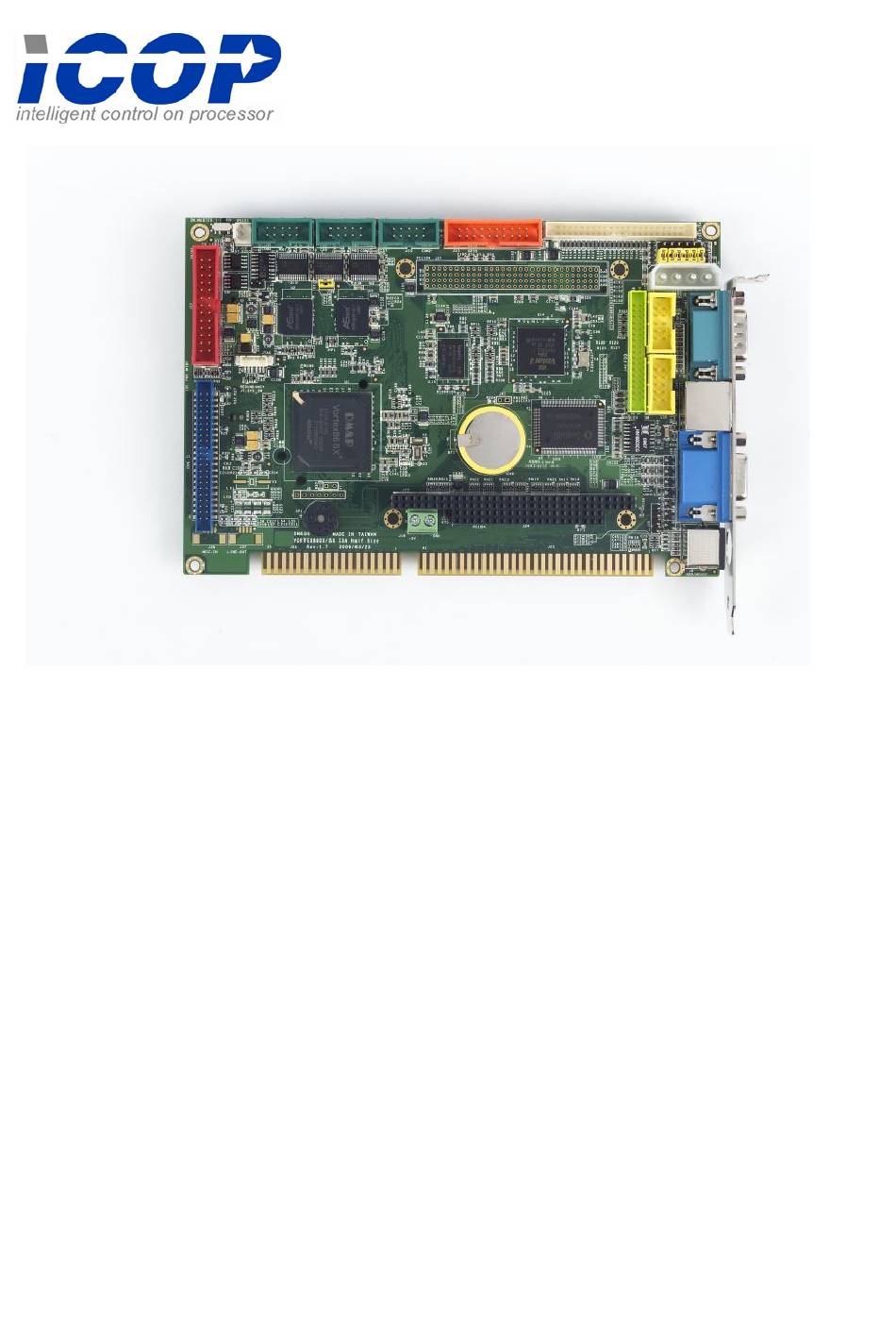

  • Page 1 Full 16-bit ISA Bus VSX-6124-FD-V2 DM&P Vortex86SX 300MHz Half-Size CPU Module with 4S/4USB/VGA/LCD/LAN/GPIO/FDD 128MB DDR2 Onboard User’s Manual (Revision 1.1A)
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc.. ©Copyright 2007 ICOP Technology Inc.

  • Page 3: Table Of Contents

    T a b l e C o n t e n t s T a b l e o f C o n t e n t s .............iii C h a p t e r 1 Introduction……………………………………………1 Packing List............1 Product Description ..........

  • Page 4: Chapter 1 Introduction

    Package Embedded Vortex86SX CPU All-in-One Board Manual & Drivers CD x 1 RS232 cable x 3 PRINT cable x1 VSX-6124-FD-V2 IDE cable x 1 FDD cable x 1 USB cable x 2 (USB port x 2 GPIO cable x 1 YKB for PS/2 Keyboard &...

  • Page 5: Product Description

    Half-Size controller. The VSX-6124-FD-V2 family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering.

  • Page 6: Specifications

    1.3 Specifications Features VSX-6124-FD-V2 DM&P SoC CPU Vortex86SX- 300MHz Real Time Clock with Lithium Battery Backup Cache L1:16K I-Cache, 16K D-Cache BIOS AMI BIOS Bus Interface PC/104 Standard Compliant (Optional: PCI-104) System Memory 128 /256MB DDR2 Onboard Software programmable from 30.5 us to 512 seconds x2...
  • Page 7 2.54 mm ∅ 26-pin box header for Print x1 Connectors 2.54 mm ∅ 10-pin box header for RS-232 x3 2.54 mm ∅ 10-pin box header for USB x2 2.54 mm ∅ 20-pin box header for 16-bit GPIO x1 2.54 mm ∅ 3-pin header for RS-485 x1 2.54 mm ∅...

  • Page 8: Board Dimension

    1.4 Board Dimension Vortex86SX™ Half-Size CPU Module Vortex86SX-6124-FD-V2...

  • Page 9: Chapter 2 Installation

    C h a p t e r 2 Installation 2.1 Board Outline (Note1: COM2 RS232/422/485 is selected by BIOS setting) (Note2: PCI-104 connector is optional) (Note3: Audio is optional) (Note4: Redundancy Signal and System-Fail-SW are optional) Vortex86SX™ Half-Size CPU Module Vortex86SX-6124-FD-V2...

  • Page 10: Connectors & Jumpers Location

    Connectors & Jumpers Location Connectors Vortex86SX™ Half-Size CPU Module Vortex86SX-6124-FD-V2...
  • Page 11 Jumpers & LEDs Vortex86SX™ Half-Size CPU Module Vortex86SX-6124-FD-V2...

  • Page 12: Connectors & Jumpers Summary

    Connectors & Jumpers Summary Summary Table Description Type of Connections Pin nbrs. 44-pin Box Header, 2.0∅ , 22x2 USB1 10-pin Box Header, 2.54∅ , 5x2 USB2 10-pin Box Header, 2.54∅ , 5x2 JTAG 6-pin Wafer, 1.25∅ , 6x1 Reset 2-pin Pin Header, 2,54∅,1x2 Redundancy (Optional) 7-pin...
  • Page 13 J40 Master/Slave for IDE & CF 3-pin Slide Switch J41 Console Redirection (Optional) 2-pin Pin Header, 2,54∅,1x2 J42 FDD 34-pin Box Header, 2.0∅ ,17x2 PWR-L Power Active LED (Red) LED-SMD IDE- IDE Active LED (Green ) LED-SMD MTBF- MTBF-Out (Orange) LED-SMD CF1 Compact Flash 50-pin...

  • Page 14: Pin Assignments & Jumper Settings

    2.4 Pin Assignments & Jumper Settings J1: IDE (44 Pins) Pin # Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID...
  • Page 15 J3: USB 2 Pin # Signal Name Pin # Signal Name LUSBD2- LUSBD3- LUSBD2+ LUSBD3+ GGND GGND J4: JTAG (Default setting: off) Pin # Signal Name Pin # Signal Name J5: RESET Pin # Signal Name Pin # Signal Name Reset J6: Redundancy (Optional) Pin #...
  • Page 16 J8: PS/2 KBD / Mouse Pin # Signal Name Pin # Signal Name KBCLK MSCLK KBDAT MSDAT J9: COM 1 (Optional: TTL/ GPIO-P4) Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 J10: COM2 RS232 / RS422 / RS485 (Optional: TTL) Pin # Signal Name Pin #...
  • Page 17 J11: GPIO (Port 0 / Port 1) Pin # Signal Name Pin # Signal Name GP00 GP10 GP01 GP11 GP02 GP12 GP03 GP13 GP04 GP14 GP05 GP15 GP06 GP16 GP07 GP17 J12: RS485 (Auto direction) Pin # Signal Name RS485＋ RS485－...
  • Page 18 J18: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J19: COM3 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 J20: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT-...
  • Page 19 J22: PC/104 Connector – 64pin Pin # Signal Name Signal Name IOCHCHK * RESETDRV IRQ9 DRQ2 -12V +12V IOCHRDY SMEMW * SA19 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12 REFRESH * SA11...
  • Page 20 J24: PC/104 Connector – 40pin Pin # Signal Name Pin # Signal Name MEMCS16 * SBHE * IOCS16 * SA23 IRQ10 SA22 IRQ11 SA21 IRQ12 SA20 IRQ15 SA19 IRQ14 SA18 DACK0 * SA17 DRQ0 MEMR * DACK5 * MEMW * DRQ5 DACK6 * DRQ6...
  • Page 21 J27: PC/104 + (Optional) VI/O Default setting: +5V If you need to use VI/O as +3.3V, please see the page 19. Pin # AD00 VI/O(+5V) AD02 AD01 AD05 AD04 AD03 C/BE0# AD07 AD06 AD09 AD08 AD11 VI/O(+5V) AD10 AD14 AD13 AD12 +3.3V C/BE1#...
  • Page 22 Please remove the R229 and add 0 ohm (1206 type) on R230 Vortex86SX™ Half-Size CPU Module Vortex86SX-6124-FD-V2...
  • Page 23 J28: VGA (D-Sub connector) Pin # Signal Name Pin # Signal Name R OUT G OUT B OUT DDCDAT HSYNC VSYNC DDCCLK J29: LCD Connector Pin # Signal Name Pin # Signal Name +3.3V +3.3V LCLK LHSYNC LVSYNC LVDDEN LBACKL (Please refer to Appendix A, for TFT Flat Panel Data Output) Vortex86SX™...
  • Page 24 J30~J35: Display type setup (CRT /LCD) Connector Pin # Signal Name GPIOA GPIOB GPIOC GPIOD GPIOE GPIOF (Please refer to Appendix D, for Display type setup) J36: LAN Pin # Signal Name Pin # Signal Name Vortex86SX™ Half-Size CPU Module Vortex86SX-6124-FD-V2...
  • Page 25 J37: LINE OUT (Optional) Pin # Signal Name LOUTR LOUTL J38: MIC-IN (Optional) Pin # Signal Name MICVREF MIC-IN J39: JTAG Disable (Default setting: Pin 1 & Pin 2 short) Pin # Signal Name Pin # Signal Name JTAG Disable J41: Console Redirection (Pin 1 &...
  • Page 26 J42: FDD Pin # Signal Name Pin # Signal Name DENSEL INDEX\ MTRO\ DS1\ DS0\ MTR1\ DIR\ STEP\ TR0\ HDSEL\ DSKCHG\ Vortex86SX™ Half-Size CPU Module Vortex86SX-6124-FD-V2...

  • Page 27: System Mapping

    System Mapping Vortex86SX™ Half-Size CPU Module Vortex86SX-6124-FD-V2...
  • Page 28 Vortex86SX™ Half-Size CPU Module Vortex86SX-6124-FD-V2...
  • Page 29 Vortex86SX™ Half-Size CPU Module Vortex86SX-6124-FD-V2...

  • Page 30: Watchdog Timer

    Watchdog Timer There are two watchdog timers in Vortex86SX/DX CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:...

  • Page 31: Gpio

    GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX/DX for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:...

  • Page 32: Spi Flash

    SPI flash (Serial Peripheral Interface) As SPI Flash Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver).

  • Page 33: Chapter 3 Driver Installation

    C h a p t e r Driver Installation The Vortex86SX processor also use external Display chip ““Volari™ Z9s” which is an ultra low powered graphics chipset with total power consumption at around 1-1.5 W. It is capable in providing VGA display output upto 1600x1200. With DVO interface, developers could easily connect flat Panel to support TFT and LVDS output.

  • Page 34: Appendix

    Appendix TFT Flat Panel Data Output Vortex86SX™ Half-Size CPU Module Vortex86SX-6124-FD-V2...

  • Page 35: Tft Flat Panel Support List

    TFT Flat Panel Support List Size Brand Resolution Model No. 5.7” Data image 320x240 FG050701DSSWBG01 5.7” Optrex 320x240 55264GD057J-FW-ABN 5.7” TOSHIBA 320x240 LTA057A343F 5.7” Sharp 320x240 (QVGA / VGA) LQ057Q3DC02 5.7” Kyocera 320x240 (QVGA / VGA) TCG057QV1AC-G10 5.7” 320x240 (QVGA / VGA) PD057VU4 /U5 5.7”...

  • Page 36: Lvds Flat Panel Support List

    LVDS Flat Panel Support List If you would like to use LVDS Flat Panel with Vortex86SX / Vortex86DX series, please contact our regional sales to get ICOP-0096 information or visit ICOP website: http://www.icop.com.tw/pddetail.aspx?id=65&pid=4 ICOP–0096 : 18-bit TFT to LVDS converter and Cable-LVDS-30: LVDS Cable 30cm Approved LVDS Flat Panel List Size Brand...

  • Page 37: Flat Panel Hardware Setting

    D. Flat Panel Hardware Setting: The Vortex86SX-6124-FD-V2 offers the Hardware setting for the various TFT LCD Flat Panels support and please make sure the jumper setting (J30~J35) before you connect the LCD. Display type setup Connector Note: "C" means close; "X" means open Vortex86SX™...

  • Page 38: Flat Panel Wiring And Lighting

    E. Flat Panel Wiring and Lighting Hardware Before you connect the TFT LCD Flat Panel with Vortex86SX-6124-FD-V2, please make sure that the input Voltage of LCD is +3.3V or Not BIOS Please contact or e-mail our regional sales to get the special BIOS for any TFT LCD Flat Panels.

  • Page 39: Tcp/Ip Library For Dos Real Mode

    TCP/IP library for DOS real mode DSock is a TCP/IP library for DOS real mode, which is used by RSIP. It provides simple C functions for programmer to write Internet applications. ICOP also provide Internet examples using DSock: BOOTP/DHCP, FTP server, SMTP client/server, HTTP server, TELNET server, Talk client/server, etc.

  • Page 40: Bios Default Setting

    BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9”...

  • Page 41: Warranty

    Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
