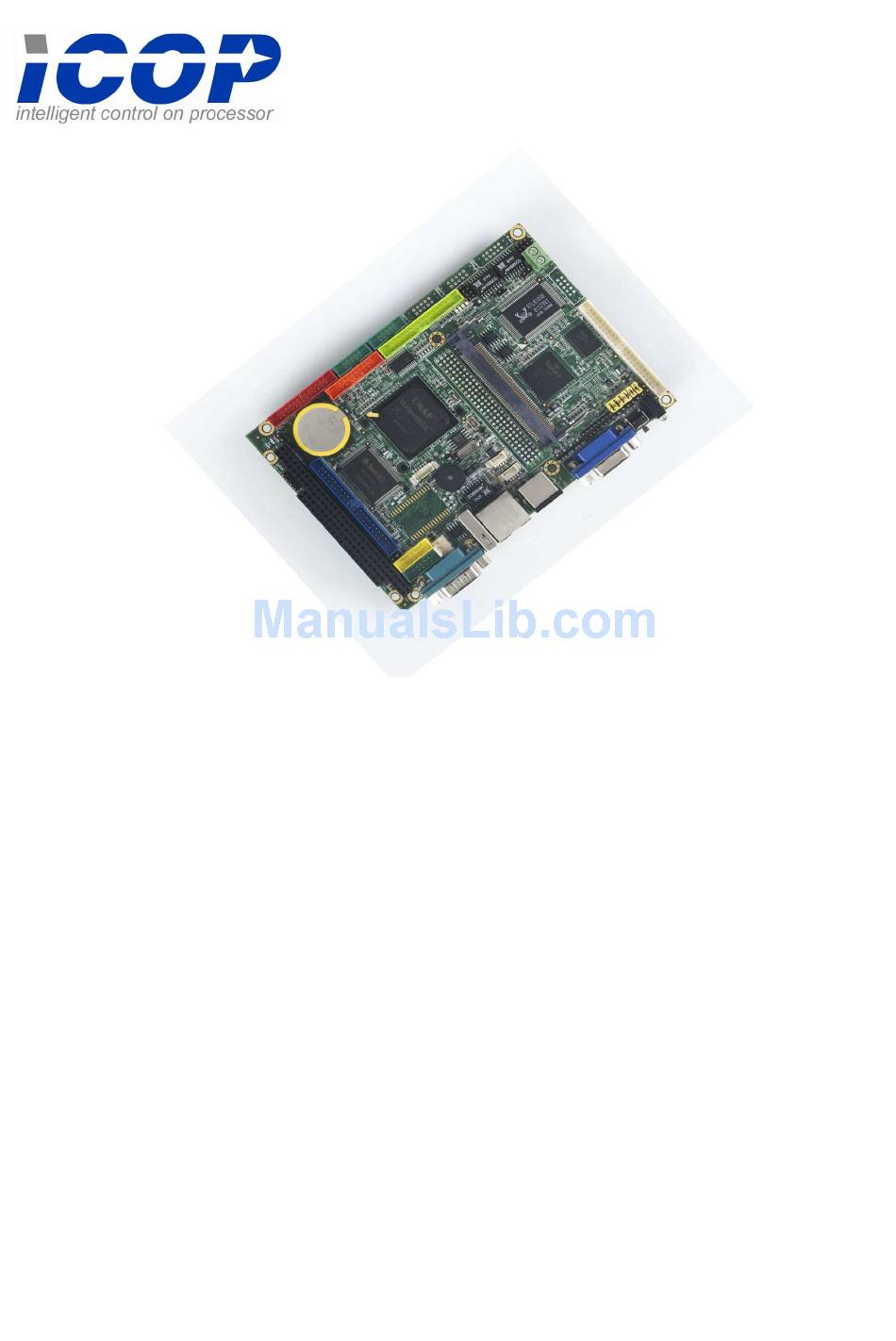

VDX-6326RD / VDX-6326RD-512
DM&P Vortex86DX 800MHz
3.5" CPU Module
with 4S/3USB/VGA/LCD/LVDS/AUDIO/3LAN/GPIO/
CF/FDD/PWMx16
256MB DDR2 Onboard
User's Manual
(Revision 1.2A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDX-6326RD and is the answer not in the manual?

Questions and answers

Summary of Contents for ICOP Technology VDX-6326RD

  • Page 1 VDX-6326RD / VDX-6326RD-512 DM&P Vortex86DX 800MHz 3.5” CPU Module with 4S/3USB/VGA/LCD/LVDS/AUDIO/3LAN/GPIO/ CF/FDD/PWMx16 256MB DDR2 Onboard User’s Manual (Revision 1.2A)
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2008 ICOP Technology Inc.
  • Page 3: Table Of Contents

    T a b l e C o n t e n t s T a b l e o f C o n t e n t s ............. iii C h a p t e r 1 Introduction……………………………………………1 Packing List ............1 Product Description ..........
  • Page 4 This page is blank...
  • Page 5: Chapter 1 Introduction

    Product Name Package Embedded Vortex86DX CPU All-in-One Board Manual & Drivers CD x 1 RS232 cable x 3 PRINT cable x1 VDX-6326RD IDE cable x 1 & FDD cable x 1 USB cable x 1 (USB port x 2 VDX-6326RD-512...
  • Page 6: Product Description

    3.5” controller. The VDX-6326RD family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering.
  • Page 7: Specifications

    1.3 Specifications Features VDX-6326RD DM&P SoC CPU Vortex86DX- 800MHz Real Time Clock with Lithium Battery Backup L1:16K I-Cache, 16K D-Cache L2:128KB Cache Cache AMI BIOS BIOS PC/104 Standard Compliant Bus Interface PCI-104 (Optional) 256/ 512MB DDR2 Onboard System Memory Software programmable from 30.5 us to 512 seconds x2...
  • Page 8 44-pin IDE to Micro SD (Optional) 16~24 Channels 512KB (Optional) SRAM support Single Voltage +5V @ 880mA Power Requirement 102 X 144mm (4.01 x 5.67 inches) Dimension 150g Weight C ~ +70 Operating Temperature -40°C ~ +85°C (Optional) VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 9: Board Dimension

    Board Dimension VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 10: Chapter 2 Installation

    (Note1: COM2 RS232/422/485 is selected by BIOS setting) (Note2: J39 Default setting of JTAG Has to be Disable: Pin 1 & Pin 2 short) (Note3: PCI-104 connector is optional) (Note4: VI/O Default setting of PCI-104 connector is +5V) (Note5: VDX-6326RD-512 is optional) VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 11: Connectors & Jumpers Location

    Connectors & Jumpers Location Connectors VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 12 Jumpers & LEDs VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 13: Connectors & Jumpers Summary

    Pin Header, 2.0∅ 8x2 Display type Setup 3-pin Pin Header, 2.54∅ , 3x1 44-pin Box Header,2.0∅ ,22x2 JTAG Disable (Default setting) 2-pin Pin Header, 2,54∅,1x2 LINE-OUT 4-pin Wafer, 1.25∅ , 4x1 MIC-IN 4-pin Wafer, 1.25∅ , 4x1 VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 14 Pin Header, 2.54∅, 2x1 LAN3 Enable/Disable 2-pin Pin Header, 2.54∅, 2x1 Compact Flash 50-pin Type I/II CF Connector PWR_L POWER Active LED (Red) IDE Active LED (Green ) IDE_LE MTBF- MTBF-Out (Orange) LED-SMD BUZZER RESET SWITCH VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 15: Pin Assignments & Jumper Settings

    IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID IDESA0 IDESA2 IDECS-0 IDECS1 IDELED J2: CF Card Master / Slave Select Pin # Signal Name CLOSE Master OPEN Slave VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 16 Pin # Signal Name J8: RESET Pin # Signal Name Pin # Signal Name Reset J9: PS/2 KBD / Mouse Pin # Signal Name Pin # Signal Name KBCLK MSCLK KBDAT MSDAT GGND GGND GGND VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 17 GP14 GP05 GP15 GP06 GP16 GP07 GP17 J12: COM2 RS232 / RS422 / RS485 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD2/422TX-/RS485- RXD2/422TX+/RS485+ TXD2 / 422RX+ DTR2 / 422RX- DSR2 RTS2 CTS2 VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 18 J17: COM3 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 J18: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- ACK- BUSY SLCT VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 19 Pin # Signal Name Pin # Signal Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 J20: FDD Pin # Signal Name Pin # Signal Name DENSEL INDEX\ MTRO\ DS1\ DS0\ MTR1\ DIR\ STEP\ TR0\ HDSEL\ DSKCHG\ VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 20 IOCHRDY SMEMW * SA19 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12 REFRESH* SA11 SYSCLK SA10 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2 * BALE VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 21 MEMR * DACK5 * MEMW * DRQ5 DACK6 * DRQ6 SD10 DACK7 * SD11 DRQ7 SD12 SD13 MASTER * SD14 SD15 J27: 4P Power Source (Interconnect to PC/104 – J25) Pin # Signal Name -12V +12V VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 22 AD22 +3.3V IDSEL0 IDSEL1 IDSEL2 AD24 C/BE3# VI/O(+5V) IDSEL3 AD26 AD25 AD29 AD28 AD27 AD30 AD31 REQ0# REQ1# VI/O(+5V) REQ2# GNT0# GNT1# VI/O(+5V) GNT2# CLK0 CLK1 CLK2 CLK3 INTD# RST# +12V INTA# INTB# INTC# -12V VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 23 Please remove the 0 ohm (1206 type) of R260 and add 0 ohm (1206 type) on R261 VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 24 Pin # Signal Name R OUT G OUT B OUT DDCDAT HSYNC VSYNC DDCCLK J31: LVDS Pin # Signal Name Pin # Signal Name VCC3 (3.3V) VCC3 (3.3V) RxIN0- RxIN0+ RxIN1- RxIN1+ RxIN2+ RxIN2- CKIN- CKIN+ VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 25 J32~J38: Display type setup (CRT /LCD) Connector Pin # Signal Name GPIOA GPIOB GPIOC GPIOD GPIOE GPIOF (Please refer to Appendix D, for Display type setup) VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 26 LVSYNC LBACKL LVDDEN (Please refer to Appendix A, for TFT Flat Panel Data Output) J39: JTAG Disable (Default setting: Pin 1 & Pin 2 short) Pin # Signal Name Pin # Signal Name JTAG Disable VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 27 LED01+ RX-1 LED11+ LED11 J43: LAN3 Pin # Signal Name Pin # Signal Name TX+2 TX-2 RX+2 LED02 LED02+ RX-2 LED12+ LED12 J44: LAN2 Enable/Disable Pin # Signal Name CLOSE LAN Off OPEN LAN ON VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 28 J45: LAN3 Enable/Disable Pin # Signal Name CLOSE LAN Off OPEN LAN ON VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 29: System Mapping

    System Mapping VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 30 VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 31 VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 32: Watchdog Timer

    The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 33: Gpio

    We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 34: Spi Flash

    Floppy (A: Driver or B: Driver). Then you must know how to set for this condition in CMOS Setup and boot up under DOS 6.22, X-DOS, DR-DOS and Free DOS. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 35: Pwm

    New Age x86 SoC platform and we also offer the sample code of PWM which will guide the engineer to control the PWM functionality smoothly. For more inquire of this sample code that please contact our sales team or mail to: info@icop.com.tw VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 36: Ide To Sd

    For further inquiries of SD-1917, please contact ICOP sales team or mail to: info@icop.com.tw for your request. <BIOS setting> Get into the BIOS setup Utility Choose Primary IDE Pin Select: SD card Press “F10” to Save configuration changes and exit setup SD-1917 SD-1917: http://www.icop.com.tw/pddetail.aspx?id=125&pid=4 VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 37: Chapter 3 Driver Installation

    Please get the drivers from the Driver CD which attached with the standard packing of Vortex86DX-6326RD board or please get it from DMP official website: http://www.dmp.com.tw/tech/vortex86dx/ Vortex86DX-6326RD also supports most of the popular Linux distributions, for more detail information, please visit DMP official website: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 38: Appendix

    Appendix TFT Flat Panel Data Output VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 39: Tft Flat Panel Support List

    7” Data image 800x480 FG0700A0DSSWBG01 7” LG-PHILIPS 800x480 (TFT 24 bits) LB070WV1 7” HITACHI 800x480 TX18D57VM2BAA 7” Samsung 800x480 LMS700KF05 7” 800x480 PM070WL4 7” 800x480 UMSH-8173MD-1T 7” CHI HSIN 800x480 LW700AT9309 8” Sharp 640x480 LQ080V3DG01 VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 40 800x600 (TFT 24bits) A080SN01 V0 8.4” Sharp 800x600 LQ084S3DG01 10.4” 640x480 PD104VT1/VT2 10.4” 640x480 NL6448AC33-18 10.4” 640x480 NL6448AC33-29 10.4” 640x480 NL6448BC33-59 10.4” Sharp 640x480 LQ104V1DG51/DG61 10.4” Sharp 640x480 LQ10d368 11” Sharp 800x480 LQ110Y3DG01 12.1” 800x600 NL8060BC31-01 VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 41: Lvds Flat Panel Support List

    G065VN01 8.4” 800x600 G084SN03 8.9” 1024x600 A089SW01 8.9” 1024x600 CLAA089NA0ACW 8.9” HannStar 1024x600 HSD089IFW1 10.4” MITSUBISHI 800x600 AA104SG01 10.4” 800x600 G104SN02 10.4” Sharp 800x600 LQ104S1LG61 12.1” MITSUBISHI 800x600 AA121SL03 12.1” 800x600 G121SN01 15” 1024x768 G150XG01 VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 42: Flat Panel Hardware Setting

    The Vortex86DX-6326RD offers the Hardware setting for the various TFT LCD Flat Panels support and please make sure the jumper setting (J32~J38) before you connect the LCD. Display type setup Connector Note: "C" means close; "X" means open VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 43: Flat Panel Wiring And Lighting

    Wiring LCD Cable Please refer to Page 22 (J33: LCD connector) and Page 34~39. Or for more LCD lighting and integration service, please contact our regional sales or mail to info@icop.com.tw you have any questions. VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 44: Tcp/Ip Library For Dos Real Mode

    ICOP also provide the business version of DSock for those customers who are using other x86 CPUs. If you would like to use DSock or business version of DSock, Please mail to info@icop.com.tw contact your regional sales. Please download the trial DSock software and Utilities from our website: http://www.dmp.com.tw/tech/dmp-lib/dsock/ VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 45: Bios Default Setting

    CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9” to Load Optimized Defaults Press “F10” to Save configuration changes and exit setup VDX-6326RD Vortex86DX™ 3.5” CPU Module...
  • Page 46: Warranty

    Authorization can be obtained by calling or faxing the vendor and requesting a Return Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. VDX-6326RD Vortex86DX™ 3.5” CPU Module...
