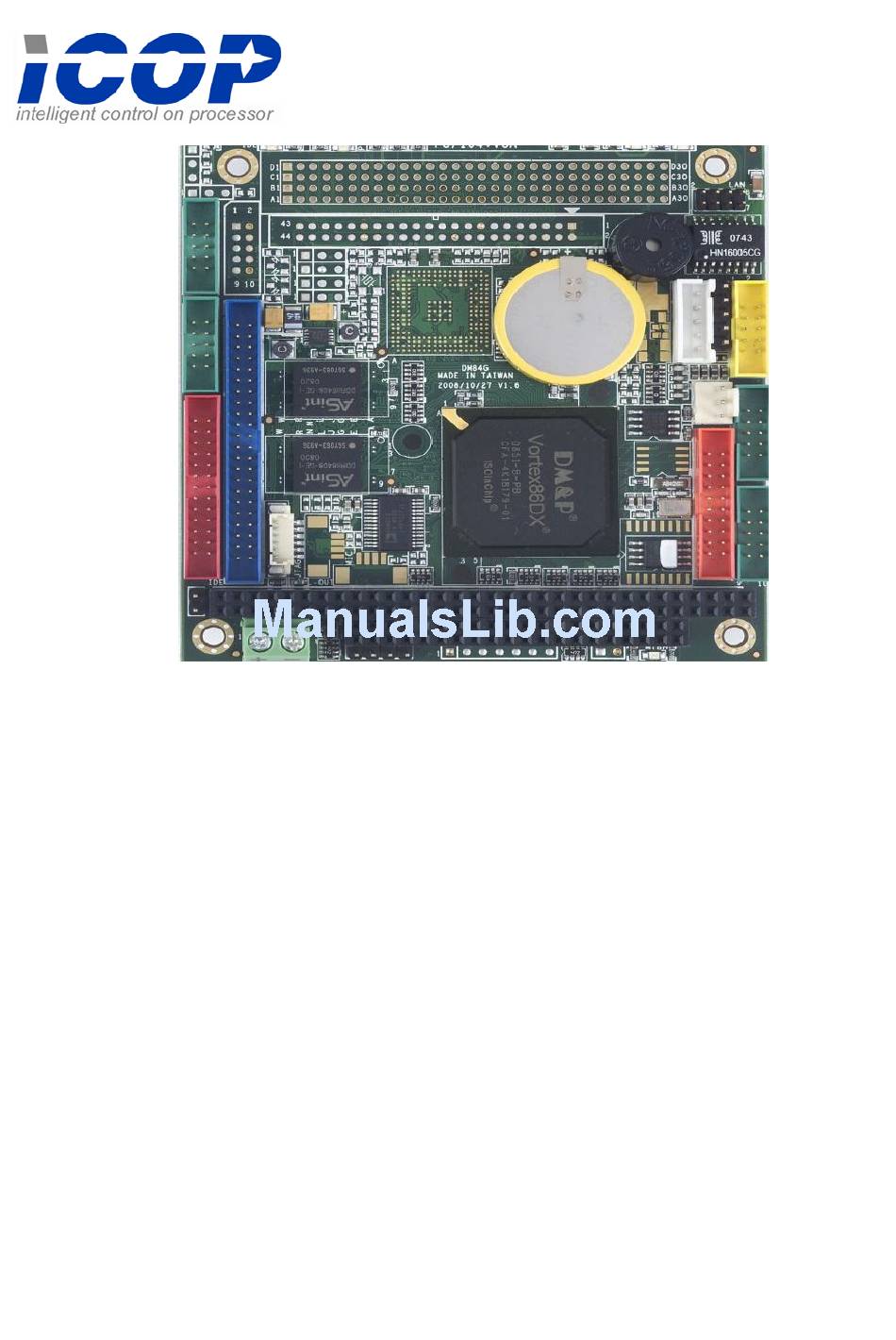

- Page 1 VDX-6350E / VDX-6350E-PLUS DM&P Vortex86DX 800MHz PC/104 CPU Module with 4S/2USB/LAN/GPIO/PWMx16 256MB DDR2 Onboard User’s Manual (Revision 1.0A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc.. ©Copyright 2008 ICOP Technology Inc.
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s .............iii C h a p t e r 1 Introduction……………………………………………1 Packing List............1 Product Description .......... -
Page 4: Table O F C O N T E N T S
C h a p t e r Introduction Packing List Product Name Package Embedded Vortex86DX CPU All-in-One Board Manual & Drivers CD x 1 VDX-6350E RS232 cable x 4 PRINT cable x1 & IDE cable x 1 USB cable x 1 (USB port x 2... -
Page 5: Product Description
PC/104 controller. The VDX-6350E family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering. -
Page 6: Specifications
Specifications Features VDX-6350E DM&P SoC CPU Vortex86DX- 800MHz Real Time Clock with Lithium Battery Backup L1:16K I-Cache, 16K D-Cache L2:128KB Cache Cache AMI BIOS BIOS PC/104 Standard Compliant (Optional: PCI-104) Bus Interface 256 / 512MB DDR2 Onboard System Memory Software programmable from 30.5 us to 512 seconds x2... -
Page 7: Board Dimension
Board Dimension Vortex86DX-6350E Vortex86DX™ PC/104 CPU Module... -
Page 8: Chapter 2 Installation
Board Outline (Note1: COM2 RS232/485 is selected by BIOS setting) (Note2: PCI-104 connector is optional) (Note3: VI/O Default setting of PCI-104 connector is +5V) (Note4: VDX-6350E-512 is optional) (Note5: Redundancy Signal and System-Fail-SW are optional) Vortex86DX-6350E Vortex86DX™ PC/104 CPU Module... -
Page 9: Connectors & Jumpers Location
Connectors & Jumpers Location Connectors (Note1: J7 /J8 /J23 are Optional) Vortex86DX-6350E Vortex86DX™ PC/104 CPU Module... - Page 10 Jumpers & LEDs Vortex86DX-6350E Vortex86DX™ PC/104 CPU Module...
-
Page 11: Connectors & Jumpers Summary
Connectors & Jumpers Summary Summary Table Description Type of Connections Pin nbrs. 44-pin Box Header, 2.0∅ ,22x2 10-pin Box Header,2.0∅ , 5x2 8-pin Pin Header, 2.0∅ , 4x2 JTAG 6-pin Wafer, 1.25∅ , 6x1 Reset 2-pin Pin Header, 2,54∅,1x2 Redundancy (Optional) 7-pin Pin Header, 2.54∅, 7x1 System –Fail-Switch (Optional) -
Page 12: Pin Assignments & Jumper Settings
Pin Assignments & Jumper Settings J1: IDE (44 Pins) Pin # Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID IDESA0... - Page 13 J4: LAN Pin # Signal Name Pin # Signal Name ATX+ ATX- ARX+ LED0 LED0+ ARX- LED1+ LED1 J5: JTAG Pin # Signal Name Pin # Signal Name J6: RESET Pin # Signal Name Pin # Signal Name RST_SW J7: Redundancy (Optional) Pin # Signal Name Pin # Signal Name...
- Page 14 J9: PS/2 Keyboard Pin # Signal Name Pin # Signal Name KBCLK KBDAT J10: PS/2 Mouse Pin # Signal Name Pin # Signal Name MSCLK MSDATA J11: COM 1 (Optional TTL/ GPIO-P4 / PWMx8) Signal Signal Pin # Pin # Name Name DCD1...
- Page 15 J13: GPIO ( Port 0 / 1 /PWMx16) Pin # Signal Name Pin # Signal Name GP00 GP10 GP01 GP11 GP02 GP12 GP03 GP13 GP04 GP14 GP05 GP15 GP06 GP16 GP07 GP17 J15: RS485 (Auto direction) Pin # Signal Name RS485＋...
- Page 16 J18: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- ACK- BUSY SLCT J19: COM4 Pin # Signal Name Pin # Signal Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 Vortex86DX-6350E Vortex86DX™ PC/104 CPU Module...
- Page 17 J20: PC104 Connector – 64pin Pin # Signal Name Pin # Signal Name IOCHCHK * RESETDRV IRQ9 DRQ2 -12V +12V IOCHRDY SMEMW * SA19 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12...
- Page 18 J21: PC104 Connector – 40pin Pin # Signal Name Pin # Signal Name MEMCS16 * SBHE * IOCS16 * SA23 IRQ10 SA22 IRQ11 SA21 IRQ12 SA20 IRQ15 SA19 IRQ14 SA18 DACK0 * SA17 DRQ0 MEMR * DACK5 * MEMW * DRQ5 DACK6 * DRQ6...
- Page 19 J23: PC/104 + (Optional) VI/O Default setting: +5V If you need to use VI/O as +3.3V, please see the page 19. Pin # AD00 VI/O(+5V) AD02 AD01 AD05 AD04 AD03 C/BE0# AD07 AD06 AD09 AD08 AD11 VI/O(+5V) AD10 AD14 AD13 AD12 +3.3V C/BE1#...
- Page 20 Please remove the 0 ohm (1206 type) of R212 and add 0 ohm (1206 type) on R213 Vortex86DX-6350E Vortex86DX™ PC/104 CPU Module...
- Page 21 J33: LINE OUT (Optional) Pin # Signal Name LOUTR LOUTL J34: MIC-IN (Optional) Pin # Signal Name MICVREF MIC-IN Vortex86DX-6350E Vortex86DX™ PC/104 CPU Module...
-
Page 22: System Mapping
System Mapping Vortex86DX-6350E Vortex86DX™ PC/104 CPU Module... - Page 23 Vortex86DX-6350E Vortex86DX™ PC/104 CPU Module...
- Page 24 Vortex86DX-6350E Vortex86DX™ PC/104 CPU Module...
-
Page 25: Watchdog Timer
Watchdog Timer There are two watchdog timers in Vortex86SX/DX CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 26: Gpio
GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX/DX for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 27: Spi Flash
SPI flash (Serial Peripheral Interface) As SPI Flash Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver). -
Page 28: Pwm
PWM (Pulse-width modulation) Pulse-width modulation (PWM) of a signal or power source involves the modulation of its duty cycle, to either convey information over a communications channel or control the amount of power sent to a load. The popular applications of pulse width modulation are in speed control of electric motors, volume control of Class D audio amplifiers or brightness control of light sources and many other power electronics applications. -
Page 29: Ide To Sd
IDE to SD (Micro-SD) Vortex86DX SoC also built-in simulation circuit to adapt SD to IDE in order to allow your system to recognize Micro-SD card as C: or D: Driver SD-1917: 44 pins IDE to SD Adapter is an ideal solution for industrial PC or embedded system and 44 pins IDE to SD Adapter can be easily installed on all Vortex86DX-63xx CPU boards. -
Page 30: Chapter 3 Driver Installation
C h a p t e r Driver Installation The Vortex86DX processor also integrated 10/100Mbps Ethernet controller that supports both 10/100BASE-T and allows direct connection to your 10/100Mbps Ethernet based Local Area Network for full interaction with local servers, wide area networks such as the Internet. The controller supports: Half / Full-Duplex Ethernet function to double channel bandwidth, auto media detection. -
Page 31: Appendix
Appendix A. TCP/IP library for DOS real mode DSock is a TCP/IP library for DOS real mode, which is used by RSIP. It provides simple C functions for programmer to write Internet applications. ICOP also provide Internet examples using DSock: BOOTP/DHCP, FTP server, SMTP client/server, HTTP server, TELNET server, Talk client/server, etc. -
Page 32: Bios Default Setting
B. BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9”... -
Page 33: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
