ICOP Technology VDX-6372RD User Manual

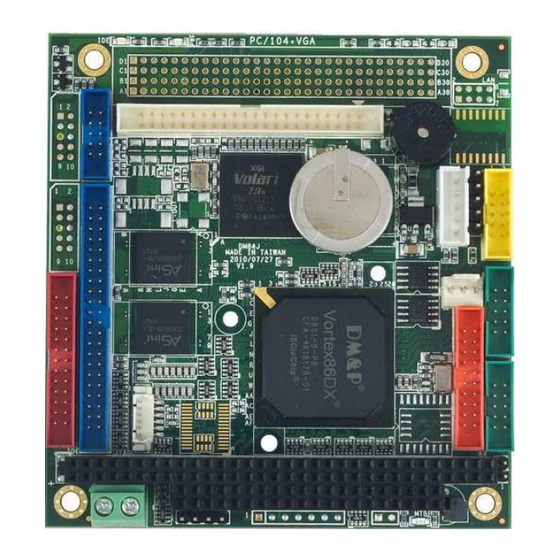

Dm&p vortex86dx 600mhz pc/104 cpu module with 2s/2usb/vga/lcd/gpio/pwmx16 128mb ddr2 onboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

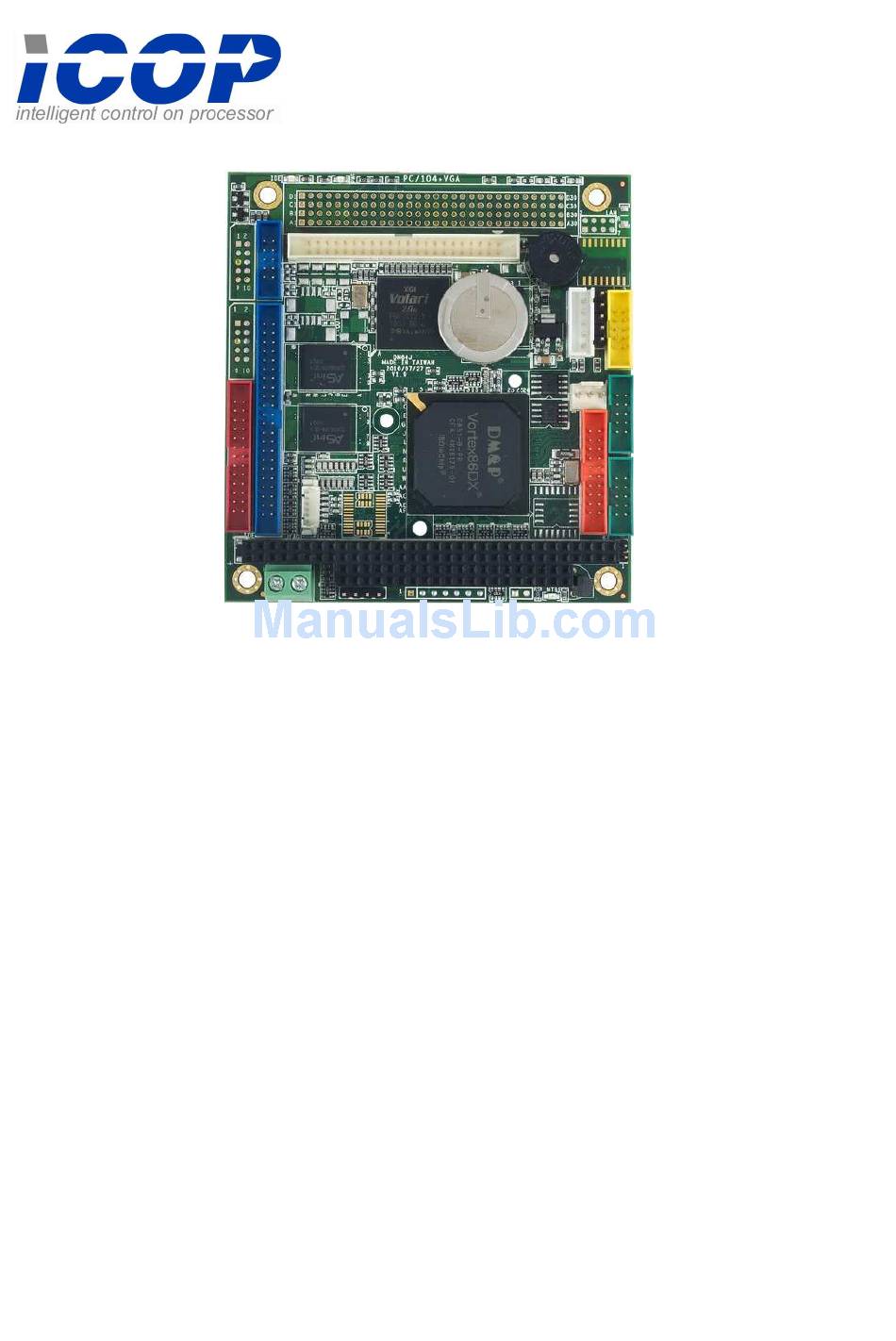

VDX-6372RD/VDX-6372RD-Plus
DM&P Vortex86DX 600MHz
PC/104 CPU Module
with 2S/2USB/VGA/LCD/GPIO/PWMx16
128MB DDR2 Onboard
User's Manual
(Revision 1.1A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDX-6372RD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICOP Technology VDX-6372RD

Summary of Contents for ICOP Technology VDX-6372RD

  • Page 1 VDX-6372RD/VDX-6372RD-Plus DM&P Vortex86DX 600MHz PC/104 CPU Module with 2S/2USB/VGA/LCD/GPIO/PWMx16 128MB DDR2 Onboard User’s Manual (Revision 1.1A)
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc.. Copyright 2008 ICOP Technology Inc.

  • Page 3: Table Of Contents

    T a b l e C o n t e n t s T a b l e o f C o n t e n t s ............. iii C h a p t e r 1 Introduction……………………………………………1 Packing List ............1 Product Description ..........
  • Page 4 This page is blank...

  • Page 5: Table O F C O N T E N T S

    Product Name Package Embedded Vortex86DX CPU All-in-One Board Manual & Drivers CD x 1 RS232 cable x 2 PRINT cable x1 VDX-6372RD IDE cable x 1 USB cable x 1 (USB port x 2 & VGA cable x 1 GPIO cable x 1...

  • Page 6: Product Description

    Product Description The VDX-6372RD family of low-power x86 embedded controller is designed to meet PC/104 specification, and integrated with the following features. 600 MHz Vortex86DX SoC VGA, TFT/ LVDS LCD support up to PC/104-Plus expansion bus 1280x1024 resolution Meet PC/104 stacking spec.

  • Page 7: Specifications

    Specifications Features VDX-6372RD DM&P SoC CPU Vortex86DX- 600MHz Real Time Clock with Lithium Battery Backup L1:16K I-Cache, 16K D-Cache, L2 Cache 128KB Cache AMI BIOS BIOS PC/104 Standard Compliant (Optional: PCI-104) Bus Interface 128MB DDR2 Onboard System Memory Software programmable from 30.5 us to 512 seconds x2...
  • Page 8 16~24 channels Single Voltage +5V @ 600mA Power Requirement 90 X 96mm (3.54 x 3.77 inches) Dimension Weight C ~ +70 Operating -40°C ~ +85°C (Optional) Temperature VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 9: Board Dimension

    Board Dimension VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 10: Chapter 2 Installation

    C h a p t e r 2 Installation Board Outline (Note1: COM2 RS232/422/485 is selected by BIOS setting) (Note2: PCI-104 connector is optional) (Note3: VI/O Default setting of PCI-104 connector is +5V) (Note4: Redundancy Signal and System-Fail-SW are optional) VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 11: Connectors & Jumpers Location

    Connectors & Jumpers Location Connectors VDX-6372RD Vortex86DX™ PC/104 CPU Module...
  • Page 12 Jumpers & LEDs VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 13: Connectors & Jumpers Summary

    Box Header, 2.0∅ , 30x4 J24 VGA 10-pin Box Header, 2.0∅ ,5x2 J25 LCD Connector 44-pin Box Header,2.0∅ ,22x2 PWR- Power Active LED (Red) LED-SMD IDE- IDE Active LED (Green ) LED-SMD MTBF- MTBF-Out (Orange) LED-SMD VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 14: Pin Assignments & Jumper Settings

    IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID IDESA0 IDESA2 IDECS-0 IDECS1 IDELED J2: USB Pin # Signal Name Pin # Signal Name LUSBD3- LUSBD2- LUSBD3+ LUSBD2+ GGND GGND VDX-6372RD Vortex86DX™ PC/104 CPU Module...
  • Page 15 Pin # Signal Name Pin # Signal Name SYS-FAIL-OUT SYS-FAIL-IN GPCS0 SYS-GPCS-IN TXD9\ RXD9\ J8: System-Fail-Switch (Optional) Pin # Signal Name SYS-SW-IN J9: PS/2 Keyboard Pin # Signal Name Pin # Signal Name KBCLK KBDAT VDX-6372RD Vortex86DX™ PC/104 CPU Module...
  • Page 16 J12: COM2 RS232 / 422 / 485 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD2/ 422TX- / RS485- RXD2 / 422TX+ / RS485+ TXD2 / 422RX+ DTR2 / 422RX- DSR2 RTS2 CTS2 VDX-6372RD Vortex86DX™ PC/104 CPU Module...
  • Page 17 J15: RS485 (Auto direction) Pin # Signal Name RS485＋ RS485－ J16: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J18: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- VDX-6372RD Vortex86DX™ PC/104 CPU Module...
  • Page 18 SMEMW * SA19 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12 REFRESH * SA11 SYSCLK SA10 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2 * BALE VDX-6372RD Vortex86DX™ PC/104 CPU Module...
  • Page 19 IRQ10 SA22 IRQ11 SA21 IRQ12 SA20 IRQ15 SA19 IRQ14 SA18 DACK0 * SA17 DRQ0 MEMR * DACK5 * MEMW * DRQ5 DACK6 * DRQ6 SD10 DACK7 * SD11 DRQ7 SD12 SD13 MASTER * SD14 SD15 VDX-6372RD Vortex86DX™ PC/104 CPU Module...
  • Page 20 AD22 +3.3V IDSEL0 IDSEL1 IDSEL2 AD24 C/BE3# VI/O(+5V) IDSEL3 AD26 AD25 AD29 AD28 AD27 AD30 AD31 REQ0# REQ1# VI/O(+5V) REQ2# GNT0# GNT1# VI/O(+5V) GNT2# CLK0 CLK1 CLK2 CLK3 INTD# RST# +12V INTA# INTB# INTC# -12V VDX-6372RD Vortex86DX™ PC/104 CPU Module...
  • Page 21 Please remove the 0 ohm (1206 type) of R212 and add 0 ohm (1206 type) on R213 VDX-6372RD Vortex86DX™ PC/104 CPU Module...
  • Page 22 G OUT B OUT HSYNC VSYNCD J25: LCD (DVO) Connector Pin # Signal Name Pin # Signal Name +3.3V +3.3V LCLK LHSYNC LVSYNC LBACKL LVDDEN (Please refer to Appendix A, for TFT Flat Panel Data Output) VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 23: System Mapping

    System Mapping VDX-6372RD Vortex86DX™ PC/104 CPU Module...
  • Page 24 VDX-6372RD Vortex86DX™ PC/104 CPU Module...
  • Page 25 VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 26: Watchdog Timer

    The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 27: Gpio

    We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 28: Spi Flash

    Floppy (A: Driver or B: Driver). Then you must know how to set for this condition in CMOS Setup and boot up under DOS 6.22, X-DOS, DR-DOS and Free DOS. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 29: Pwm

    New Age x86 SoC platform and we also offer the sample code of PWM which will guide the engineer to control the PWM functionality smoothly. For more inquire of this sample code that please contact our sales team or mail to: info@icop.com.tw VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 30: Ide To Sd

    For further inquiries of SD-1917, please contact ICOP sales team or mail to: info@icop.com.tw for your request. <BIOS setting> Get into the BIOS setup Utility Choose Primary IDE Pin Select: SD card Press “F10” to Save configuration changes and exit setup SD-1917 SD-1917: http://www.icop.com.tw/pddetail.aspx?id=125&pid=4 VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 31: Chapter 3 Driver Installation

    Please get the drivers from the Driver CD which attached with the standard packing of Vortex86DX-6372RD board or please get it from DMP official website: http://www.dmp.com.tw/tech/vortex86dx/ Vortex86DX-6372RD also supports most of the popular Linux distributions, for more detail information, please visit DMP official website: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 32: Appendix

    Appendix TFT Flat Panel Data Output VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 33: Tft Flat Panel Support List

    7” Data image 800x480 FG0700A0DSSWBG01 7” LG-PHILIPS 800x480 (TFT 24 bits) LB070WV1 7” HITACHI 800x480 TX18D57VM2BAA 7” Samsung 800x480 LMS700KF05 7” 800x480 PM070WL4 7” 800x480 UMSH-8173MD-1T 7” CHI HSIN 800x480 LW700AT9309 8” Sharp 640x480 LQ080V3DG01 VDX-6372RD Vortex86DX™ PC/104 CPU Module...
  • Page 34 800x600 (TFT 24bits) A080SN01 V0 8.4” Sharp 800x600 LQ084S3DG01 10.4” 640x480 PD104VT1/VT2 10.4” 640x480 NL6448AC33-18 10.4” 640x480 NL6448AC33-29 10.4” 640x480 NL6448BC33-59 10.4” Sharp 640x480 LQ104V1DG51/DG61 10.4” Sharp 640x480 LQ10d368 11” Sharp 800x480 LQ110Y3DG01 12.1” 800x600 NL8060BC31-01 VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 35: Lvds Flat Panel Support List

    Approved LVDS Flat Panel List Size Brand Resolution Model No. 3.5” 640x480 PD035VL1 5” 640x480 PD050VL1 6.5” 640x480 G065VN01 8.4” 800x600 G084SN03 8.9” 1024x600 A089SW01 8.9” 1024x600 CLAA089NA0ACW 10.4” 800x600 G104SN02 12.1” 800x600 G121SN01 15” 1024x768 G150XG01 VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 36: Flat Panel Wiring And Lighting

    Flat Panels. Wiring LCD Cable Please refer to Page 19 (J25: LCD connector) and Page 29~34. For more LCD lighting and integration service, please contact our regional sales or mail to info@icop.com.tw you have any questions. VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 37: Tcp/Ip Library For Dos Real Mode

    ICOP also provide the business version of DSock for those customers who are using other x86 CPUs. If you would like to use DSock or business version of DSock, Please mail to info@icop.com.tw contact your regional sales. Please download the trial DSock software and Utilities from our website: http://www.dmp.com.tw/tech/dmp-lib/dsock/ VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 38: Bios Default Setting

    CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9” to Load Optimized Defaults Press “F10” to Save configuration changes and exit setup VDX-6372RD Vortex86DX™ PC/104 CPU Module...

  • Page 39: Warranty

    Authorization can be obtained by calling or faxing the vendor and requesting a Return Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. VDX-6372RD Vortex86DX™ PC/104 CPU Module...

This manual is also suitable for:

Vdx-6372rd-plus
