T a b l e C o n t e n t s T a b l e o f C o n t e n t s .............iii C h a p t e r 1 Introduction……………………………………………1 Packing List............1 Product Description ..........
Embedded Vortex86SX CPU All-in-One Board Manual & Drivers CD x 1 RS232 cable x 4 PRINT cable x1 IDE cable x 1 VSX-6158-V2 USB cable x 1 (USB port x 2 VGA cable x 1 LAN cable x 2 GPIO cable x 1...

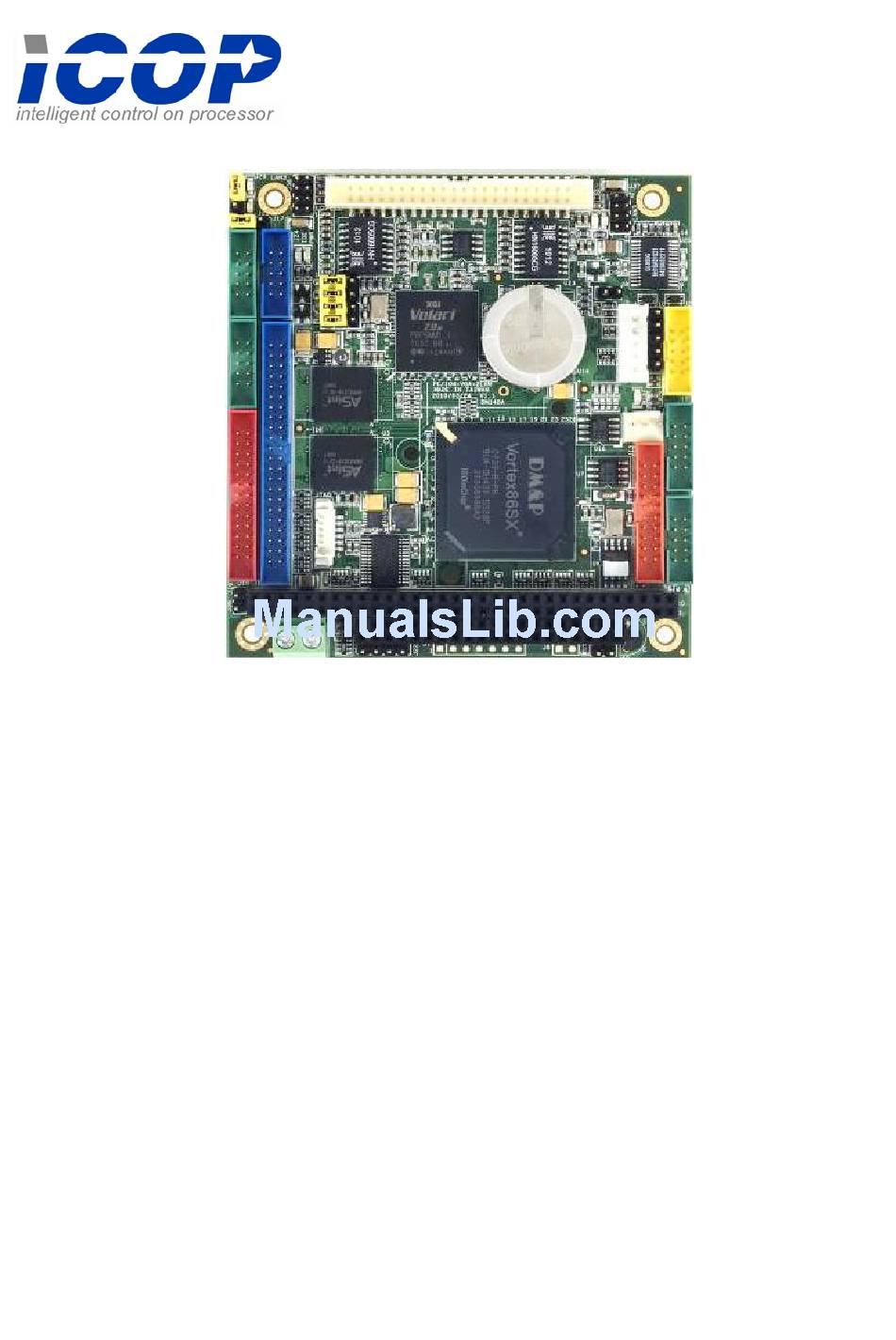

PC/104 controller. The VSX-6158-V2 family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering.
Specifications Features VSX-6158-V2 DM&P SoC CPU Vortex86SX- 300MHz Real Time Clock with Lithium Battery Backup Cache L1:16K I-Cache, 16K D-Cache BIOS AMI BIOS Bus Interface PC/104 Standard Compliant System Memory 128 / 256MB DDR2 Onboard Watchdog Timer Software programmable from 30.5 us to 512 seconds x2...
Page 7
Flash Disk Support Onboard 2MB SPI Flash Disk (Driver: A) 44-pin IDE Flash Disk( EmbedDisk 16MB or above) SRAM support 512KB (Optional) Power Requirement Single Voltage +5V @ 600 mA Dimension 90 X 96mm (3.54 x 3.77 inches) Weight Operating C ~ +70 Temperature -40°C ~ +85°C (Optional)

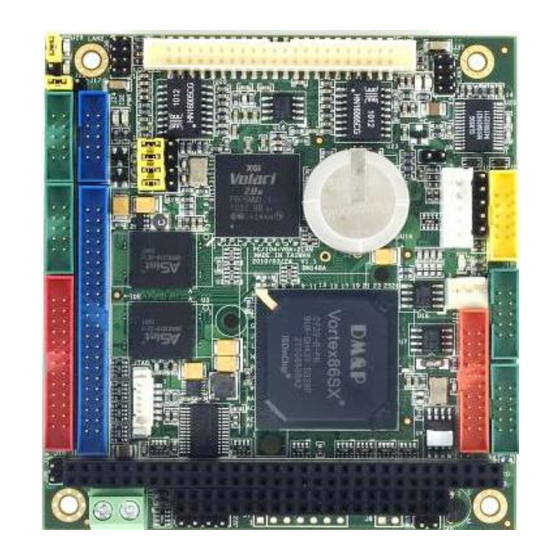

C h a p t e r 2 Installation Board Outline (Note1: COM2 RS232/422/485 is selected by BIOS setting) (Note2: Redundancy Signal and System-Fail-SW are optional) (Note3: Console Redirection is optional) Vortex86SX™ PC/104 CPU Module Vortex86SX-6158-V2...
Page 13
IDE- IDE Active LED (Green ) LED-SMD MTBF- MTBF-Out (Orange) LED-SMD LED 6 LAN Active LED (Green) LED-SMD LED 7 LAN Link LED ( Yellow ) LED-SMD LED 8 LAN Active LED (Green) LED-SMD LED 9 LAN Link LED ( Yellow ) LED-SMD Vortex86SX™...
Pin Assignments & Jumper Settings J1: IDE (44 Pins) Pin # Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID IDESA0...
Page 15
J5: JTAG Pin # Signal Name Pin # Signal Name J7: Redundancy (Optional) Pin # Signal Name Pin # Signal Name SYS-FAIL-OUT SYS-FAIL-IN GPCS0 SYS-GPCS-IN TXD9\ RXD9\ J8: Redundancy (System-Fail-Switch) (Optional) Pin # Signal Name SYS-SW-IN J9: PS/2 Keyboard Pin # Signal Name Pin # Signal Name KBCLK KBDAT...
Page 16
J10: PS/2 Mouse Pin # Signal Name Pin # Signal Name MSCLK MSDATA J11: COM 1 (Optional: TTL/ GPIO-P4 ) Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 J12: COM2 RS232 / 422 / 485 (Optional: TTL) Pin # Signal Name Pin #...
Page 17
J13: GPIO (Port 0 / 1 ) Pin # Signal Name Pin # Signal Name GP00 GP10 GP01 GP11 GP02 GP12 GP03 GP13 GP04 GP14 GP05 GP15 GP06 GP16 GP07 GP17 J15: RS485 (Auto direction) Pin # Signal Name RS485+ RS485-...
Page 18
J18: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- ACK- BUSY SLCT J19: COM4 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 Vortex86SX™ PC/104 CPU Module Vortex86SX-6158-V2...
Page 21
J24: VGA Signal Signal Pin # Pin # Name Name R OUT G OUT B OUT HSYNC VSYNCD J25: LCD (DVO) Connector Pin # Signal Name Pin # Signal Name +3.3V +3.3V LCLK LHSYNC LVSYNC LBACKL LVDDEN (Please refer to Appendix A, for TFT Flat Panel Data Output) Vortex86SX™...
Page 22
J26~J31: Display type setup (CRT /LCD) Connector Pin # Signal Name GPIOA GPIOB GPIOC GPIOD GPIOE GPIOF (Please refer to Appendix D, for Display type setup) Vortex86SX™ PC/104 CPU Module Vortex86SX-6158-V2...
Page 23
J36: LAN1 Pin # Signal Name Pin # Signal Name TX+1 TX-1 RX+1 LED01 LED01+ RX-1 LED11+ LED11 J37: LAN2 Pin # Signal Name Pin # Signal Name TX+2 TX-2 RX+2 LED02 LED02+ RX-2 LED12+ LED12 J38: Buzzer Pin # Signal Name Pin # Signal Name Buzzer J39: Console Redirection...
Watchdog Timer There are two watchdog timers in Vortex86SX/DX CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:...
GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX/DX for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:...
SPI flash (Serial Peripheral Interface) As SPI Flash Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver).
C h a p t e r Driver Installation The Vortex86SX processor also use external Display chip ““Volari™ Z9s” which is an ultra low powered graphics chipset with total power consumption at around 1-1.5 W. It is capable in providing VGA display output upto 1600x1200. With DVO interface, developers could easily connect flat Panel to support TFT and LVDS output.
LVDS Flat Panel Support List If you would like to use LVDS Flat Panel with Vortex86SX / Vortex86DX series, please contact our regional sales to get ICOP-0096 information or visit ICOP website: http://www.icop.com.tw/pddetail.aspx?id=65&pid=4 ICOP–0096 : 18-bit TFT to LVDS converter and Cable-LVDS-30: LVDS Cable 30cm Approved LVDS Flat Panel List Size Brand...
D. Flat Panel Hardware Setting: The Vortex86SX-6158-V2 offers the Hardware setting for the various TFT LCD Flat Panels support and please make sure the jumper setting (J26~J31) before you connect the LCD. Display type setup Connector Note: "C" means close; "X" means open Vortex86SX™...
E. Flat Panel Wiring and Lighting Hardware Before you connect the TFT LCD Flat Panel with Vortex86SX-6158-V2, please make sure that the input Voltage of LCD is +3.3V or Not BIOS Please contact or e-mail our regional sales to get the special BIOS for the any TFT LCD Flat Panels.
TCP/IP library for DOS real mode DSock is a TCP/IP library for DOS real mode, which is used by RSIP. It provides simple C functions for programmer to write Internet applications. ICOP also provide Internet examples using DSock: BOOTP/DHCP, FTP server, SMTP client/server, HTTP server, TELNET server, Talk client/server, etc.
BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9”...
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
