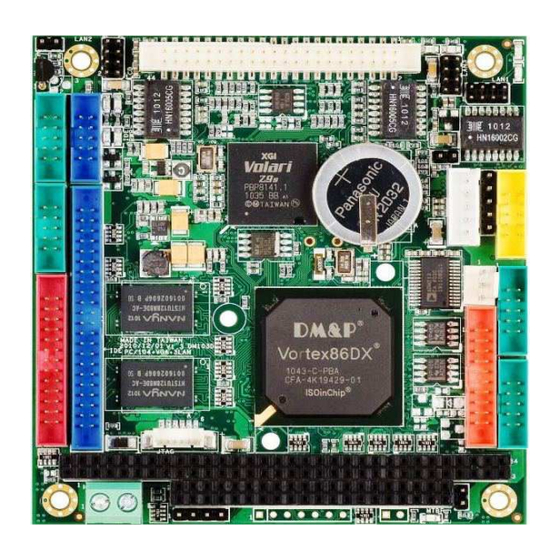

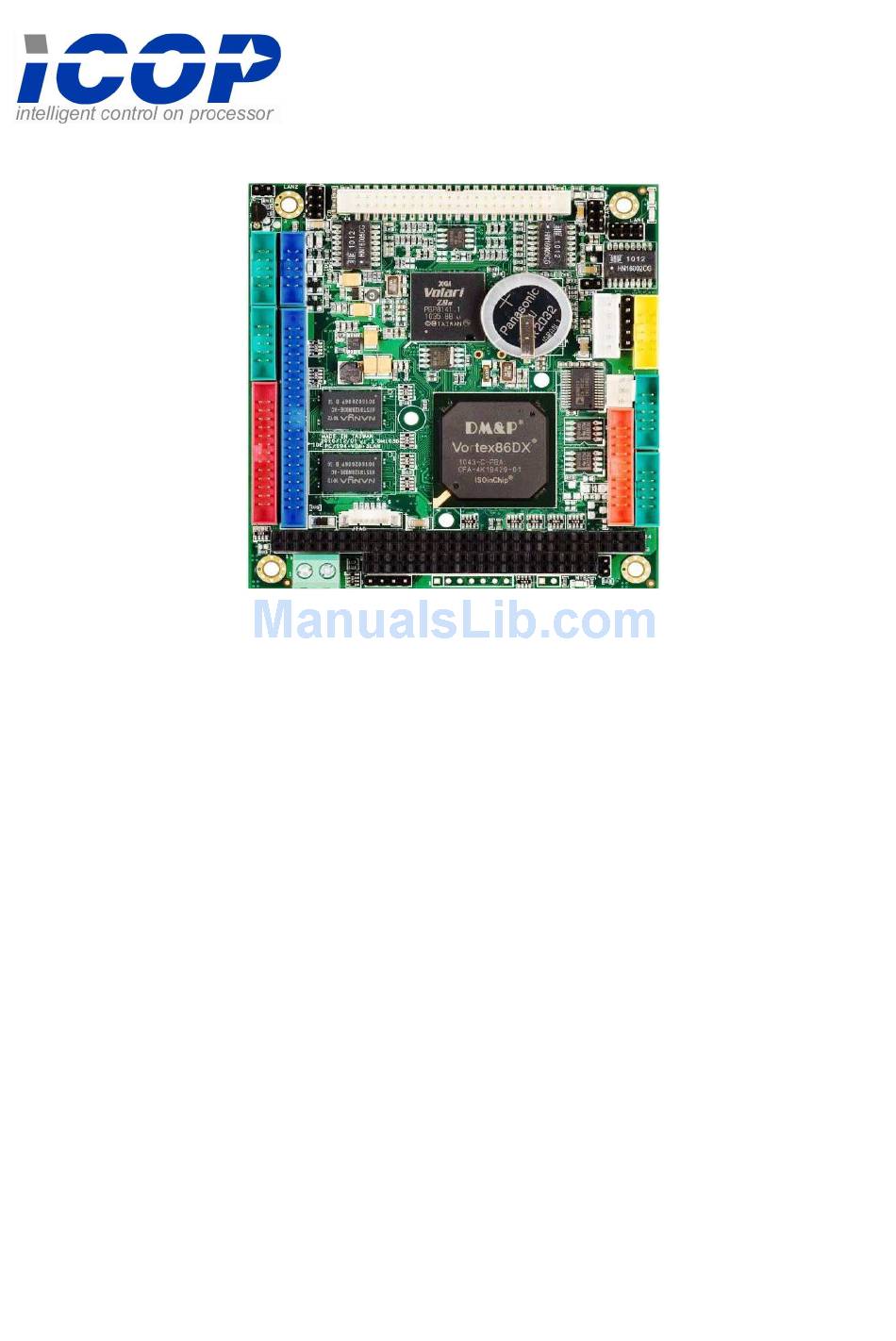

- Page 1 VDX-6357RD / VDX-6357RD-512 DM&P Vortex86DX 800MHz PC/104 CPU Module with 4S/2USB/VGA/LCD/3LAN/GPIO/PWMx16 256MB DDR2 Onboard User’s Manual (Revision 1.1A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc.. Copyright 2008 ICOP Technology Inc.
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s ............. iii C h a p t e r 1 Introduction……………………………………………1 Packing List ............1 Product Description .......... - Page 4 This page is blank...
-
Page 5: Table O F C O N T E N T S
Product Name Package Embedded Vortex86DX CPU All-in-One Board Manual & Drivers CD x 1 RS232 cable x 4 PRINTER cable x1 VDX-6357RD IDE cable x 1 USB cable x 1 (USB port x 2 & VGA cable x 1 LAN cable x 3... -
Page 6: Product Description
Product Description The VDX-6357RD family of low-power x86 embedded controller is designed to meet PC/104 specification, and integrated with the following features. 800MHz Vortex86DX System-On-Chip VGA, TFT LCD support up to Onboard 4MB SPI Flash 1280x1024 resolution Meet PC/104 stacking spec. -
Page 7: Specifications
Specifications Features VDX-6357RD DM&P SoC CPU Vortex86DX- 800MHz Real Time Clock with Lithium Battery Backup L1:16K I-Cache, 16K D-Cache L2:128KB Cache Cache AMI BIOS BIOS PC/104 Standard Compliant Bus Interface 256 / 512MB DDR2 Onboard System Memory Software programmable from 30.5 us to 512 seconds x2... - Page 8 44-pin IDE to Micro SD (Optional) 16~24 Channels 512KB (Optional) SRAM support Single Voltage +5V @800mA Power Requirement 90 X 96mm (3.54 x 3.77 inches) Dimension Weight C ~ +70 Operating -40°C ~ +85°C (Optional) Temperature VDX-6357RD Vortex86DX™ PC/104 CPU Module...
-
Page 9: Board Dimension
Board Dimension VDX-6357RD Vortex86DX™ PC/104 CPU Module... -
Page 10: Chapter 2 Installation
C h a p t e r 2 Installation Board Outline (Note1: Redundancy Signal and System-Fail-SW are optional) (Note2: COM2 RS232/422/485 is selected by BIOS setting) VDX-6357RD Vortex86DX™ PC/104 CPU Module... -
Page 11: Connectors & Jumpers Location
Connectors & Jumpers Location VDX-6357RD Vortex86DX™ PC/104 CPU Module... - Page 12 Jumpers & LEDs VDX-6357RD Vortex86DX™ PC/104 CPU Module...
-
Page 13: Connectors & Jumpers Summary
2-pin Pin Header, 2.54∅ , 2x1 J39 Console Redirection (Optional) 2-pin Pin Header, 2.54∅ , 2x1 J40 Reset 2-pin Pin Header, 2,54∅,1x2 PWR- Power Active LED (Red) LED-SMD IDE- IDE Active LED (Green ) LED-SMD VDX-6357RD Vortex86DX™ PC/104 CPU Module... - Page 14 LED 5 LAN Duplex LED ( Yellow ) LED-SMD LED 6 LAN Active LED (Green) LED-SMD LED 7 LAN Link LED ( Yellow ) LED-SMD LED 8 LAN Active LED (Green) LED-SMD LED 9 LAN Link LED ( Yellow ) LED-SMD VDX-6357RD Vortex86DX™ PC/104 CPU Module...
-
Page 15: Pin Assignments & Jumper Settings
IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID IDESA0 IDESA2 IDECS-0 IDECS1 IDELED J2: USB Pin # Signal Name Pin # Signal Name LUSBD3- LUSBD2- LUSBD3+ LUSBD2+ GGND GGND VDX-6357RD Vortex86DX™ PC/104 CPU Module... - Page 16 J5: JTAG Pin # Signal Name Pin # Signal Name J7: Redundancy (Optional) Pin # Signal Name Pin # Signal Name SYS-FAIL-OUT SYS-FAIL-IN GPCS0 SYS-GPCS-IN TXD9\ RXD9\ J8: Redundancy (System-Fail-Switch) (Optional) Pin # Signal Name SYS-SW-IN VDX-6357RD Vortex86DX™ PC/104 CPU Module...
- Page 17 J12: COM2 RS232 / 422 / 485 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD2/ 422TX- / RS485- RXD2 / 422TX+ / RS485+ TXD2 / 422RX+ DTR2 / 422RX- DSR2 RTS2 CTS2 VDX-6357RD Vortex86DX™ PC/104 CPU Module...
- Page 18 Pin # Signal Name RS485＋ RS485－ J16: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J17: COM3 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 VDX-6357RD Vortex86DX™ PC/104 CPU Module...
- Page 19 Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- ACK- BUSY SLCT J19: COM4 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 VDX-6357RD Vortex86DX™ PC/104 CPU Module...
- Page 20 SMEMW * SA19 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12 REFRESH * SA11 SYSCLK SA10 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2 * BALE VDX-6357RD Vortex86DX™ PC/104 CPU Module...
- Page 21 MEMR * DACK5 * MEMW * DRQ5 DACK6 * DRQ6 SD10 DACK7 * SD11 DRQ7 SD12 SD13 MASTER * SD14 SD15 J22: 4P Power Source (Interconnect to PC/104 – J20) Pin # Signal Name -12V +12V VDX-6357RD Vortex86DX™ PC/104 CPU Module...
- Page 22 G OUT B OUT HSYNC VSYNCD J25: LCD (DVO) Connector Pin # Signal Name Pin # Signal Name +3.3V +3.3V LCLK LHSYNC LVSYNC LBACKL LVDDEN (Please refer to Appendix A, for TFT Flat Panel Data Output) VDX-6357RD Vortex86DX™ PC/104 CPU Module...
- Page 23 LED02 LED02+ RX-2 LED12+ LED12 J39: Console Redirection (Optional: Pin 1 & Pin 2 short) Pin # Signal Name Pin # Signal Name Console J40: RESET Pin # Signal Name Pin # Signal Name Reset VDX-6357RD Vortex86DX™ PC/104 CPU Module...
-
Page 24: System Mapping
System Mapping VDX-6357RD Vortex86DX™ PC/104 CPU Module... - Page 25 VDX-6357RD Vortex86DX™ PC/104 CPU Module...
- Page 26 VDX-6357RD Vortex86DX™ PC/104 CPU Module...
-
Page 27: Watchdog Timer
The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6357RD Vortex86DX™ PC/104 CPU Module... -
Page 28: Gpio
We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6357RD Vortex86DX™ PC/104 CPU Module... -
Page 29: Spi Flash
Floppy (A: Driver or B: Driver). Then you must know how to set for this condition in CMOS Setup and boot up under DOS 6.22, X-DOS, DR-DOS and Free DOS. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6357RD Vortex86DX™ PC/104 CPU Module... -
Page 30: Pwm
New Age x86 SoC platform and we also offer the sample code of PWM which will guide the engineer to control the PWM functionality smoothly. For more inquire of this sample code that please contact our sales team or mail to: info@icop.com.tw VDX-6357RD Vortex86DX™ PC/104 CPU Module... -
Page 31: Ide To Sd
For further inquiries of SD-1917, please contact ICOP sales team or mail to: info@icop.com.tw for your request. <BIOS setting> Get into the BIOS setup Utility Choose Primary IDE Pin Select: SD card Press “F10” to Save configuration changes and exit setup SD-1917 SD-1917: http://www.icop.com.tw/pddetail.aspx?id=125&pid=4 VDX-6357RD Vortex86DX™ PC/104 CPU Module... -
Page 32: Chapter 3 Driver Installation
Please get the drivers from the Driver CD which attached with the standard packing of Vortex86DX-6357RD board or please get it from DMP official website: http://www.dmp.com.tw/tech/vortex86dx/ Vortex86DX-6357RD also supports most of the popular Linux distributions, for more detail information, please visit DMP official website: http://www.dmp.com.tw/tech/vortex86dx/ VDX-6357RD Vortex86DX™ PC/104 CPU Module... -
Page 33: Appendix
Appendix TFT Flat Panel Data Output VDX-6357RD Vortex86DX™ PC/104 CPU Module... -
Page 34: Tft Flat Panel Support List
Data image 800x480 FG0700A0DSSWBG01 7” LG-PHILIPS 800x480 (TFT 24 bits) LB070WV1 7” HITACHI 800x480 TX18D57VM2BAA 7” Samsung 800x480 LMS700KF05 7” 800x480 PM070WL4 7” 800x480 UMSH-8173MD-1T 8” Sharp 640x480 LQ080V3DG01 8” 800x600 (TFT 24bits) A080SN01 V0 VDX-6357RD Vortex86DX™ PC/104 CPU Module... - Page 35 Size Brand Resolution Model No. 8.4” Sharp 800x600 LQ084S3DG01 10.4” 640x480 PD104VT1/VT2 10.4” 640x480 NL6448AC33-18 10.4” 640x480 NL6448AC33-29 10.4” 640x480 NL6448BC33-59 10.4” Sharp 640x480 LQ104V1DG51/DG61 11” Sharp 800x480 LQ110Y3DG01 12.1” 800x600 NL8060BC31-01 VDX-6357RD Vortex86DX™ PC/104 CPU Module...
-
Page 36: Lvds Flat Panel Support List
Approved LVDS Flat Panel List Size Brand Resolution Model No. 3.5” 640x480 PD035VL1 5” 640x480 PD050VL1 6.5” 640x480 G065VN01 8.4” 800x600 G084SN03 8.9” 1024x600 A089SW01 8.9” 1024x600 CLAA089NA0ACW 10.4” 800x600 G104SN02 12.1” 800x600 G121SN01 15” 1024x768 G150XG01 VDX-6357RD Vortex86DX™ PC/104 CPU Module... -
Page 37: Flat Panel Wiring And Lighting
Wiring LCD Cable Please refer to Page 18 (J25: LCD connector) and Page 29~33. Or for more LCD lighting and integration service, please contact our regional sales or mail to info@icop.com.tw you have any questions. VDX-6357RD Vortex86DX™ PC/104 CPU Module... -
Page 38: Tcp/Ip Library For Dos Real Mode
ICOP also provide the business version of DSock for those customers who are using other x86 CPUs. If you would like to use DSock or business version of DSock, Please mail to info@icop.com.tw contact your regional sales. Please download the trial DSock software and Utilities from our website: http://www.dmp.com.tw/tech/dmp-lib/dsock/ VDX-6357RD Vortex86DX™ PC/104 CPU Module... -
Page 39: Bios Default Setting
CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9” to Load Optimized Defaults Press “F10” to Save configuration changes and exit setup VDX-6357RD Vortex86DX™ PC/104 CPU Module... -
Page 40: Warranty
Return authorization must be obtained from the vendor before returned merchandise will be accepted. Authorization can be obtained by calling or faxing the vendor and requesting a Return Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. VDX-6357RD Vortex86DX™ PC/104 CPU Module...
