About the ReachNXT 100-8t Port Extender

The ReachNXT 100-8t port extender is an 8-port 10/100 switch with Gigabit uplink capability. It features
eight 10/100BASE-T ports for user access and one combination Gigabit Ethernet uplink port, which
connects to a switch running ExtremeXOS software.
The ReachNXT 100-8t does not run ExtremeXOS software, but instead is controlled by the ExtremeXOS
switch to which it is connected. The ReachNXT 100-8t operates as an extension of the ExtremeXOS
switch, providing additional access ports, aggregating network traffic from those ports, and sending the
traffic to the uplinked switch.

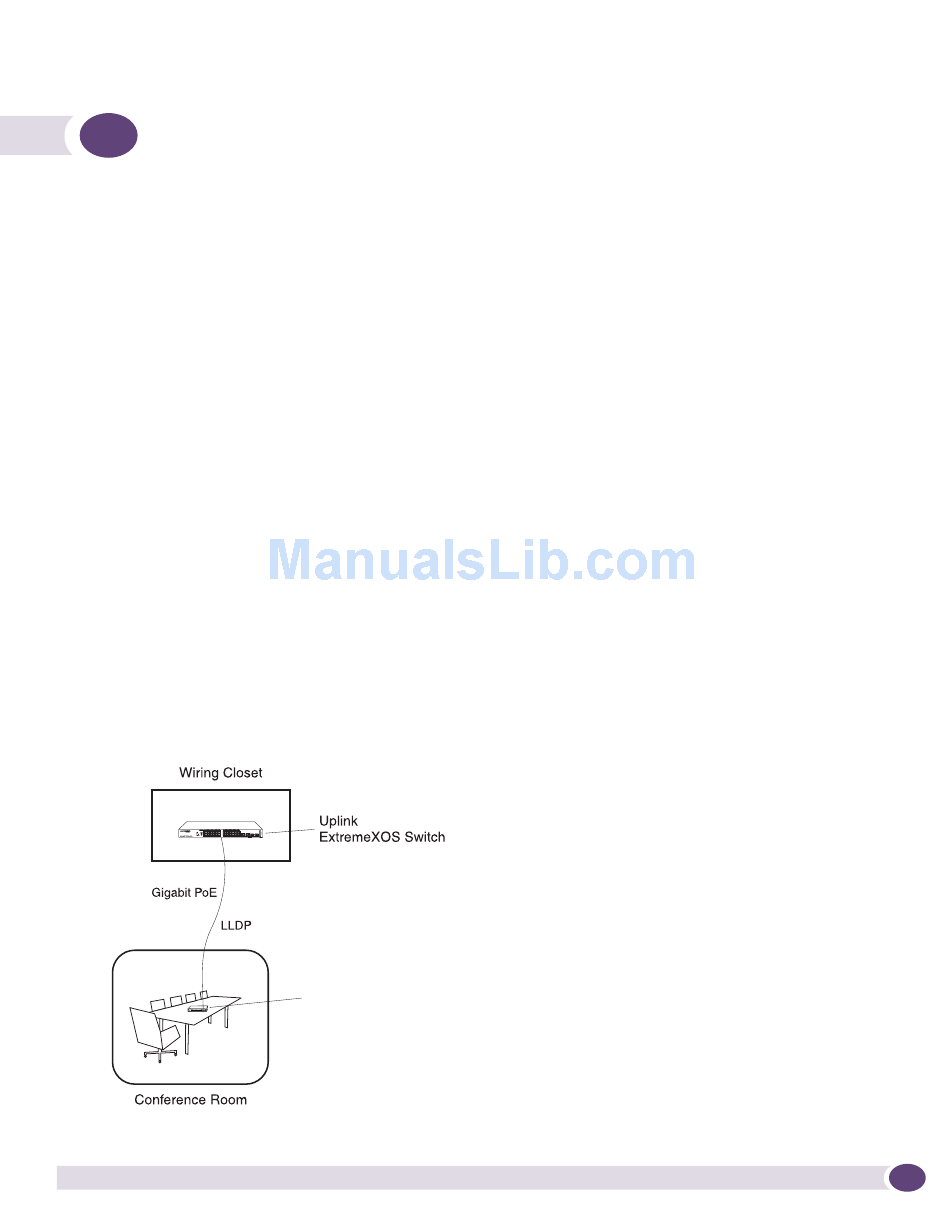

A typical application for the ReachNXT 100-8t is in a conference room, as illustrated in
Figure 1: Typical ReachNXT 100-8t Installation
ReachNXT 100-8t User Guide
®
ReachNXT
ReachNXT 100-8t
RCH_004
-8t Port Extender
™ ®
100-8t ExtremeXOS port extender. It
Figure 2.
