Installing the ReachNXT 100-8t
Insert the locking device into the Kensington lock slot on the ReachNXT 100-8t rear panel
then turn it in the locking direction.

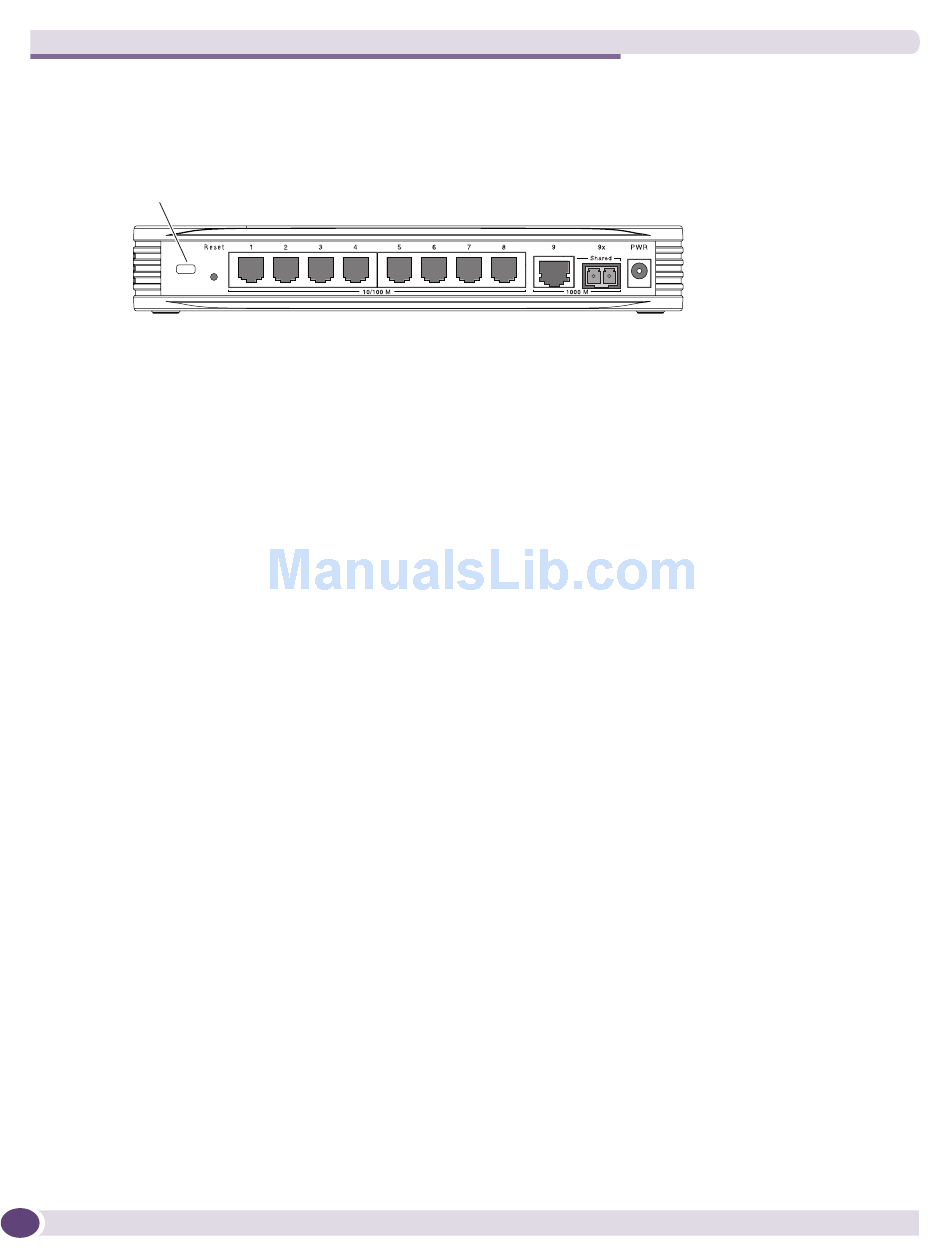

Figure 4: Kensington Lock Slot on the ReachNXT 100-8t Rear Panel
Kensington lock slot
4 If the ReachNXT 100-8t will be powered using AC power, connect the unit as follows:
a Connect the optional AC adapter to the power socket on the ReachNXT 100-8t (labeled PWR).
b Select and attach the appropriate plug style to match the AC outlet to which you are connecting
the adapter.
c Plug the AC adapter into a wall outlet.

Using the Magnet Mounting Kit

The optional magnet mounting kit allows you to mount the ReachNXT 100-8t in a fixed location using
magnets attached to the unit. The magnet mounting kit contains the following items:
Two magnets
●
Two rubber stabilizing pads
●
Mounting plate
●
Screws and anchors
●
The magnets are attached to two slots on the bottom of the ReachNXT 100-8t unit
other two corners, rubber stabilizing pads prevent the unit from rocking.
