Enclosure Dimensions - Altronix HubSat8Di Installation Manual

The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the
presence of an insulated DANGEROUS VOLTAGE within the product's enclosure that may be of sufficient
magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
1.20"
(31mm)
1.40"
(36mm)
5.10"
(130mm)
5.10"
(130mm)
3.25"
(83mm)
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: info@altronix.com. Lifetime Warranty, Made in U.S.A.
IIHubSat8Di
- 8 -
CAUTION: To reduce the risk of electric shock do not open enclosure. There
are no user serviceable parts inside. Refer servicing to qualified service personnel.

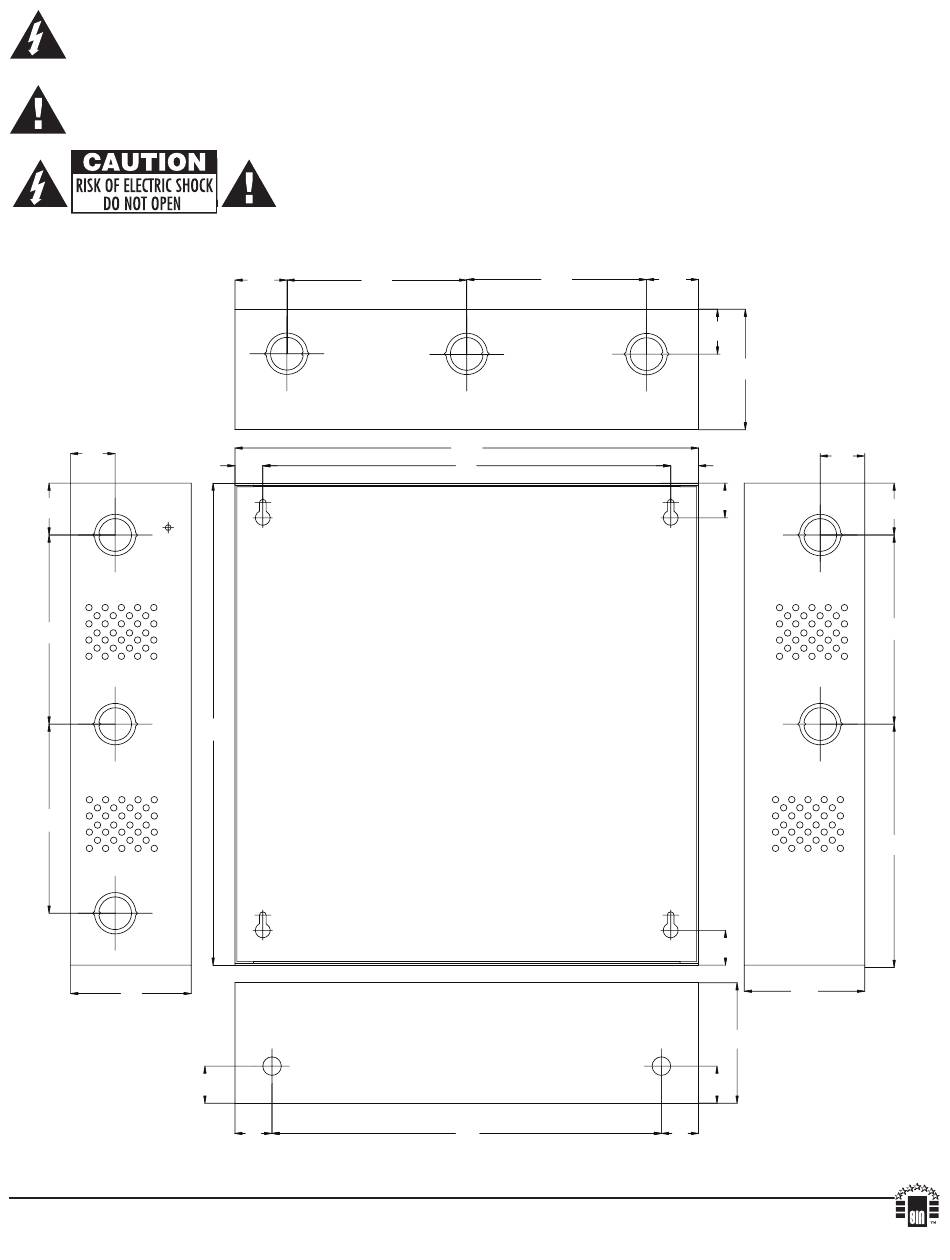

Enclosure Dimensions

13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm)
1.40" 4.85"
(36mm) (123mm)
0.75"
(19mm)
13.0"
(330mm)
1.0"
(25mm)
1.0"
(25mm)
(H x W x D approximate)
4.85"
(123mm)
12.5"
(318mm)
11.0"
(279mm)
10.5"
(267mm)
L01P
:
1.40"
(36mm)
1.20"
(31mm)
3.25"
(83mm)
1.20"
0.75"
(31mm)
(19mm)
0.9375"
(24mm)
0.9375"
(24mm)
3.25"
(83mm)
3.25"
(83mm)
1.0"
(25mm)
1.0"
(25mm)
1.40"
(36mm)
5.10"
(130mm)
6.5625"
(167mm)
