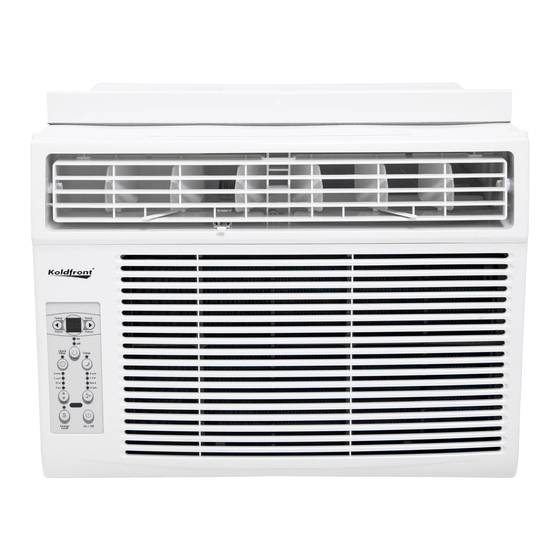

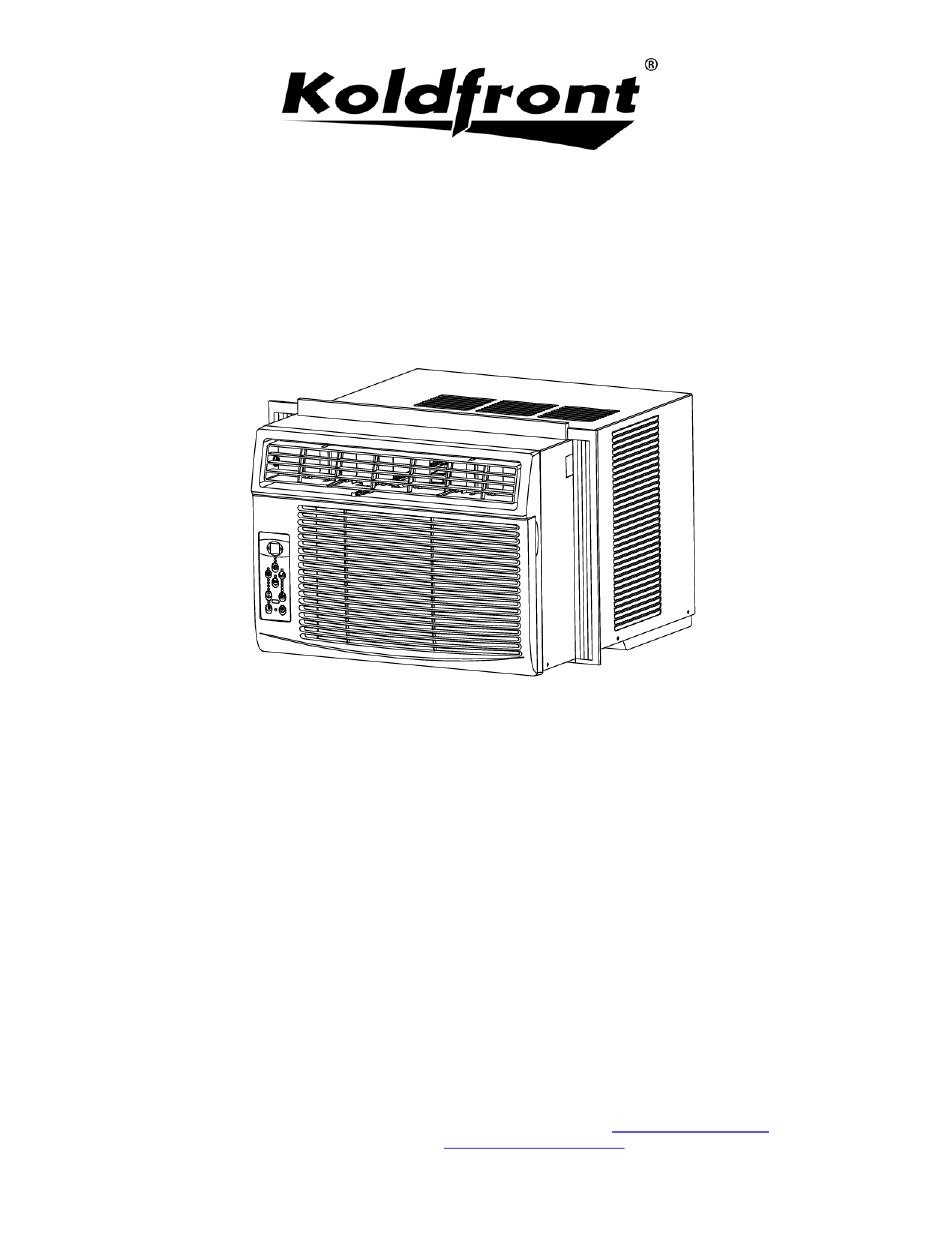

- Page 1 Window Air Conditioner WAC10002WCO WAC12002WCO Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com To use the EdgeStar self-diagnostic tool, go to https://support.edgestar.com V2.5-07132018...
- Page 2 Important Safety Information Warning: The water produced by the window AC is not potable or suitable for drinking. Do not drink the water drained from the unit as it contains contaminates and could make you sick. Improper handling can cause serious damage to the appliance and/or to the user. Please read the following safety information Electrical Safety ...
-
Page 3: Operation Of Safety Plug
Operation of Safety Plug Note: Electrical products should not be disposed of with household waste. Please contact your local recycling center for more information on how to recycle electronic waste. Your cool-only window air conditioner is supplied with a Leakage-Current Detection and Interruption (LCDI) safety plug. -
Page 4: Table Of Contents
Table of Contents IMPORTANT SAFETY INFORMATION .......................... I …………………........................ PERATION OF AFETY TABLE OF CONTENTS…………………........................III INTRODUCTION…………………………........................1 PARTS IDENTIFICATION……………..........................2 ……………………………........................2 RONT PREPARATIONS FOR INSTALLATION ........................3 ... -
Page 5: Introduction
Introduction Thank you for purchasing this Koldfront by EdgeStar window air conditioner. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
Parts Identification CAUTION: Make sure the drain plug is firmly installed before using the unit to prevent leaking. Front/Side View... -
Page 7: Preparations For Installation
Preparations for Installation Note: You may need to contact your electrician if your room’s circuit is not able to power your unit. Note: To avoid risk of injury and/or product/property damage, please take the following precautions: - Two or more people are needed to properly handle and install. - Use proper lifting and carrying techniques. -
Page 8: Window Installation Instructions
Window Installation Instructions Note: When choosing your window make sure the power supply cord is within 4 feet of a grounded 3-prong outlet. Please follow all installation instructions to avoid personal injury or damage. It is important that you save all original packaging materials in case you need to safely transport your window air conditioner. - Page 9 4. To attach the side curtains to the air conditioner, start by gently extending the accordion panel until you can insert the open end into the connector tabs located on the side of the unit. 5. Insert the top and bottom of the curtain housing to the top curtain and bottom curtain channel.
-
Page 10: Installing Unit Into Window
Installing Unit into Window Note: When choosing your window make sure the power supply cord is within 4 feet of a grounded 3-prong outlet. Follow the steps listed below to install the air conditioner into the window. 1. Center the air conditioner cabinet into the window: ... - Page 11 2. Extend both Side Curtains outward until they are flush with the window frame. 3. Attach Curtain Brackets The Curtain Brackets will secure the lower frame of the side curtains to the window sill. Place the Curtain Bracket in between the accordion extensions as shown in the image below.
-
Page 12: Sealing Air Gaps
5. Attach Window Lock Bracket Secure the lower window sash to the upper window sash with the Window Lock Bracket. Use two (2) ½” Philips head screws to attach the bracket to the upper window sash. Once installed, the bracket will prevent the lower window sash from being raised upwards. Sealing Air Gaps 1. - Page 13 2. Install Energy Efficient Insulation Panels This unit comes with insulating sheets that should be installed into each of the side curtains to maximize energy efficiency. Start by measuring the inner width of both side curtains. Locate the insulation panel supplied with this unit and cut each panel to the correct width. ...
-
Page 14: Completing Installation
3. Attach Weather Stripping In order to minimize air leaks, this unit comes with weather stripping that should be installed as needed to plug any gaps that may be present after you have secured the air conditioner into the window. ... -
Page 15: Control Panel Operations
Control Panel Operations On / Off Energy Saver Timer Mode Check Filter Fan Speed Sleep Temp / Timer Up Temp / Timer Down Using the Control Panel To Turn the Unit on: Press On/Off Button. Note: The Energy Saver feature will automatically turn on in “Cool,” “Dry,” and “Auto” modes. To Change the Temperature: Press or hold either Up or Down... -
Page 16: To Select The Operating Mode
To Select the Operating Mode: To choose the operating mode, press the Mode button . Each time you press the button a mode is selected in a sequence that goes from Auto, Cool, Dry, to Fan. The indicator light adjacent to the mode label will be illuminated and remain on once the mode is selected. To Operate in Auto Mode: ... -
Page 17: To Use The Check Filter Feature
To Use the Check Filter Feature: This feature is a reminder to clean the Air Filter for more efficient operation. The LED light will illuminate after 250 hours of operation. To reset the check filter timer and to turn off the Check Filter indicator, simply clean the filter as indicated in the maintenance section of this manual and press Check Filter button Digital Display:... -
Page 18: Remote Operations
Remote Operations Warning: This product contains a lithium button/coin cell battery which is a potential Chemical Burn Hazard. Keep away from children. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep away from children. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. -
Page 19: Additional Notes On Remote Operations
Additional Notes on Remote Operations The remote control has an operating range of 16 ft from the appliance. The remote signal receiver/sensor is located on the control panel of the air conditioner. Reception of signal commands is confirmed by an audible beep. ... -
Page 20: Maintenance
Maintenance Clean the air conditioner and filters regularly to maximize performance and efficiency, and prolong the unit’s life. Be sure to always unplug the air conditioner from the power outlet before cleaning. Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary. Trapped particles in the filter can build up and potentially cause an accumulation of frost on the cooling coils. -
Page 21: Cabinet Cleaning
Cabinet Cleaning Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild dishwashing detergent. Rinse thoroughly and wipe dry. ... -
Page 22: Troubleshooting
Troubleshooting Follow the troubleshooting guide below to resolve common issues. Issue Possible Cause Solution My air conditioner is not The wall plug is disconnected. Make sure the unit is plugged functioning at all. The LCDI power cord is Press the Reset button on the tripped. - Page 23 Issue Possible Cause Solution The air conditioner is cooling but The air directional louvers are Position the louvers for better the room is too warm. NO ice is positioned improperly. air distribution. forming on the cooling coil The front of the unit is blocked Clear any blockage in front of behind the decorative front.
-
Page 24: Specifications
Specifications Description of Product Window Air Conditioner Model WAC10002WCO/WAC12002WCO Voltage/Frequency 115V / 60Hz Plug Type LCDI Power Cord Length 6.5 ft BTUs (cooling) 10000/12000 Current (cooling) 7.5A/8.7A Rated CEER 12.0 Color White Coolant R410A Timer 24 Hour Dimensions 19” x 21 ”... -
Page 25: Edgestar Limited Warranty
Edgestar Limited Warranty Full Two-Year Parts and Labor This product is warrantied by EdgeStar and is subject to any conditions set forth as follows: WHAT IS COVERED: For a period of TWO (2) YEARS from the date of original retail purchase, EdgeStar will repair or replace any part free of charge, including labor, that fails due to a defect in materials or workmanship.
