Denham Entertainment Unit
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
C
dowel
screw
bolt
x20
x8
x12
K
I
J
bracket
plastic
bolt
x4
glide
x8
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E
D
F
locking
screw
Allen
Key
nut x12
x4
x1
M
N
L
bolt
wedge
screw
x16
x4
x4
Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
H
handle
hinge
x2
x4
O
P
screw
bolt
x5
x24
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Related Manuals for Mocka Denham
Summary of Contents for Mocka Denham

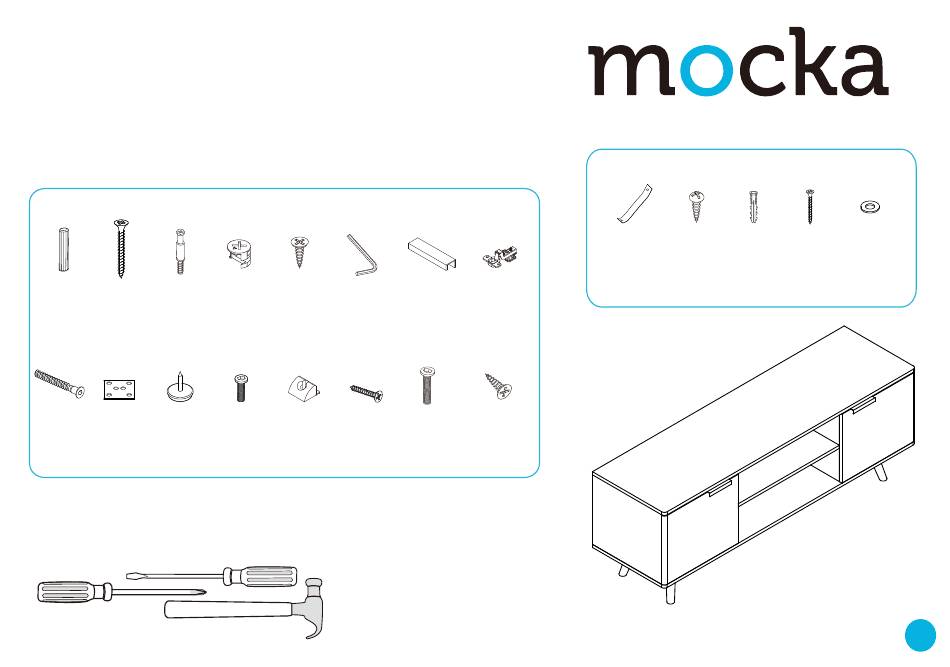

- Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Denham Entertainment Unit Assembly Instructions Panel layout Insert 8x bolts (C) into panel [1] and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Insert 2x bolts (C) into panel [6] and tighten with a screwdriver. Attach panels [6] to panel [7] with 4x dowels (A) and secure with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Slide panel [5] down along the grooves between the panels [3] and [4] to with 8x locking nuts (D). Tighten with a screwdriver. form the back of the unit as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panel [2] to panels [3], [4] and [6] with 8x dowels (A) and Attach panel [10] to panel [2] using 5x bolt (O). Tighten with an Allen key (F). secure with 8x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach legs [40] to panel [2] using 16x bolt (L) as shown. using 8x screws (P).Tighten with a screwdriver. Tighten with an Allen key (F). Attach 4x plastic glide (K) to the ends of the legs. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Ensure the doors open and close easily.Attach 1x handle (G) to panel [8] secure with 2x screws (E).Tighten with a 1x handle (G) to panel [9] secure with 2x screws (E).Tighten with a screwdriver. screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Fasten to the wall using 1x washer (Z) , 1x wall anchor (X) and using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver. 1x wall screw (Y). Ensure unit is balanced and steady before use.You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 MOVE DOOR BACK OR holes loosen 2 screws in oval holes. Screw in 2 screws in Loosen this screw a bit. Re-tighten this screw. FORTH holes a bit. round holes mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
