Denham Desk
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
C
D
dowel
screw
bolt
ocking
l
x10
x4
x10
nut x10
K
L
M
N
plastic
bolt
wedge
screw
glide
x24
x4
x4
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E
F
G
screw
Allen
handle
screw
Key
x4
x14
x2
x1
P
O
Q
R
hinge
screw
slide
slide
x2
x12
rail x1
rail x1

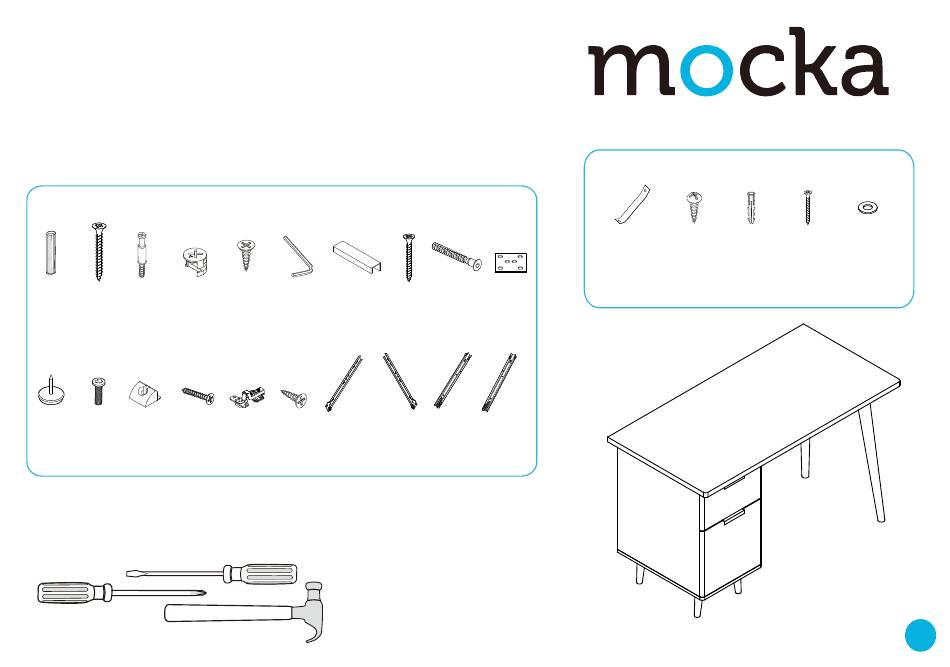

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
J
H
I
bolt
bracket
x4
x8
S
T
slide
slide
rail x1
rail x1
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Denham Desk
Summary of Contents for Mocka Denham Desk
- Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Denham Desk Assembly Instructions Panel layout Insert 4x bolts (C) into panel [1] and Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panels [3] and [4] to panel [6] with 2x dowels (A) and secure with 2x Insert 2x bolts (C) into panel [3] and panel [4] secure with 6x small locking nuts (D). Tighten with a screwdriver. screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Slide panel [5] down along the grooves between the panels [3] and [4] to form 4x locking nuts (D). Tighten with a screwdriver. the back of the unit as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach legs [40] to panel [2] using 16x bolt (L) and legs [41] to panel [1] using 8x bolt (L) as shown. Tighten with an Allen key (F). Attach 4x plastic glide (K) to the ends of the legs. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Assembly Instructions Insert 4x bolts (C) into panel [34]. Tighten with a screwdriver. Attach panels [30] and [31] to panel [32] as shown using 4x screws (H). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Slide panel [33] down along the grooves between the panels [30] Attach panel [34] to panels [30] and [31] secure with 4x locking nuts (D). and [31] to form the back of the unit as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach slide rail (S) and slide rail (T) to the underside of the side Attach 1x handle (G) to panel [34] secure with 2x screws (E).Tighten with panels as shown. Secure with 4x screws (E) and tighten with a a screwdriver. screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Attach hinges on panel [7] to the unit using 8x screws (P). Tighten with with a screwdriver. a screwdriver. Ensure the doors open and close easily. Attach 1x handle (G) to panel [7] secure with 2x screws (E).Tighten with a screwdriver mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 4x screws (N). Tighten with a screwdriver. Attach 1x safety straps (V) to the top of the back side of the unit as shown using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 11 (V). Fasten to the wall using 1x washer (Z), 1x wall anchor (X) and 1x wall screw (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 12 MOVE DOOR BACK OR holes loosen 2 screws in oval holes. Screw in 2 screws in Loosen this screw a bit. Re-tighten this screw. FORTH holes a bit. round holes mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
