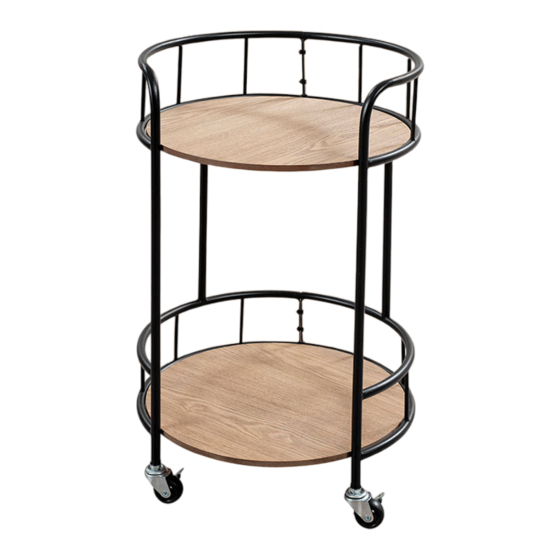

Detroit Trolley Side Table
Assembly Instructions
Thank you for your purchase.
Please follow t he instructions below for correct assembly.
A
B
C
screw
nut
screw
x4
x4
x8
Hardware Supplied
Phillips screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
caster
caster
spanner
wheel
wheel
x1
x2
x2
Maximum weight 5kgs
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Detroit Trolley Side Table
Summary of Contents for Mocka Detroit Trolley Side Table
- Page 1 Please follow t he instructions below for correct assembly. caster caster screw screw spanner wheel wheel Hardware Supplied Phillips screwdrivers For quicker assembly, we recommend the use of a power drill on a low-speed setting. Maximum weight 5kgs mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach panel [1] to panel [2] and secure with 4 x screws (A) and 4 x nuts Attach 2 x panel [3] to metal frame and secure with 8 x screws (C) as (B). Tighten with a screwdriver. shown. Tighten with a screwdriver, mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach 2 x caster wheels (E) to the front and 2 x caster wheels (D) to Place the trolley into position. You’re done, enjoy! the back as shown. Tighten with a spanner (F). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
