Summary of Contents for Clarke DWP100A

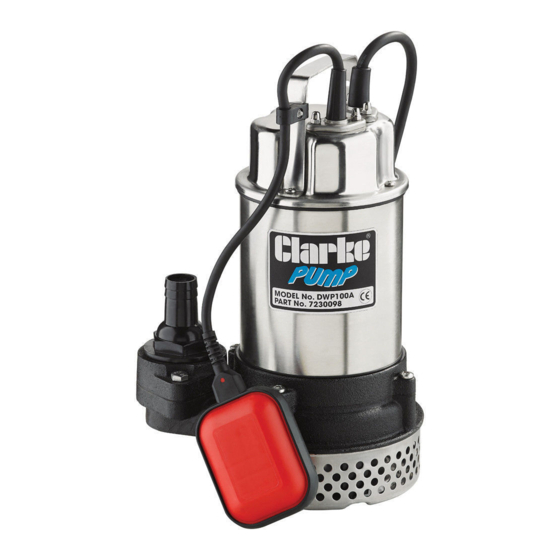

- Page 1 SUBMERSIBLE DIRTY WATER PUMP MODEL NO: DWP100A, DWP150A, DWP200A PART NO: 7230098, 7230099, 7230100 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1220 - ISS 3...
-
Page 2: Environmental Recycling Policy
The DWP100A and DWP150A have the ability to pump solids in suspension as large as 6.8 mm. The DWP200A has the ability to pump solids in suspension as large as 7 mm. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS GENERAL PUMP SPECIFIC 1. Read all instructions before use 1. Do not pump explosive / and save these instructions for flammable liquids or chemicals. future use. 2. Never allow the pump to run dry 2. An approved residual current or operate out of the water. -
Page 4: Part Identification
PART IDENTIFICATION WATER INLET WATER OUTLET FLOAT SWITCH HANDLE PLUG AND CABLE CABLE CLAMP Remove all packaging and make sure that the unit shows no visible damage. Dispose of all packaging appropriately. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. -
Page 6: Using The Pump
(not supplied) to the pump outlet. • Suitable hoses are available from your local Clarke dealer. 2. Place the pump on a flat surface in the area that you want to drain. • If there is sediment in the operating area, the pump should be placed vertically on house bricks, or similar. -
Page 7: Maintenance
IS UNPLUGGED FROM THE MAINS SUPPLY. IF THE UNIT IS HARD WIRED, ENSURE THE CIRCUIT BREAKER IS OPEN. This pump should require no maintenance other than regular cleaning. If the pump starts to show signs of wear or damage, contact your CLARKE dealer for advice. CLEANING 1. -
Page 8: Troubleshooting
7. Water level too low - float switch in OFF position - lift float to check switch. 8. If the pump still fails to start, consult your CLARKE dealer for advice. PUMP WILL 1. Check that the inlet is not blocked. -
Page 9: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 10: Parts List And Diagram
PARTS LIST & DIAGRAM Screw 18 Lower Bearing Seal Cover 35 Cable Gland Cover Strainer 19 Washer 36 Screw Lower Casing 20 Oil Plug Screw 37 Power Cable O Ring 21 O Ring 38 Spring Washer Bolt 22 Spring Washer 39 Bolt Spring Washer 23 Bolt... -
Page 11: Specifications
ACCESSORIES A wide range of suitable accessories such as delivery hoses, layflat hoses, hose clips and many more are available from your local Clarke dealer. SPECIFICATIONS DWP100A DWP150A DWP200A Voltage 230V~50Hz 230V~50Hz 230V~50Hz Outlet Diameter 2“ BSP (inc 2” - 2“...
