- Page 1 12&24V DIESEL FUEL TRANSFER PUMPS MODEL NO: DFT12 & DFT24 PART NO: 7160040 & 7160045 OPERATION & MAINTENANCE INSTRUCTIONS GC0816...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Pump. The DFT12 & 24 pumps are designed only for use with diesel, paraffin and light fuel oils and can be connected to vehicle batteries of either 12 or 24 Volts respectively. They must not be used with water, petroleum fuels or alcohol, nor if small solids are known to be in suspension. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all of the safety and operating instructions carefully before using this product. Keep these instructions in a safe place for future reference. WORK AREA 1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents. - Page 4 Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility. GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.

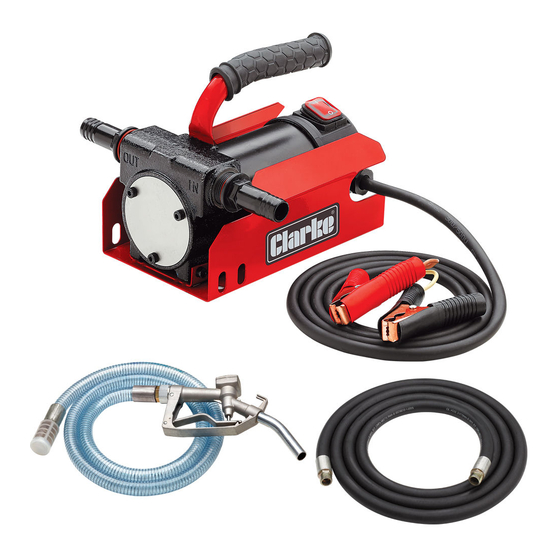

- Page 5 CONTENTS ITEM DESCRIPTION Rubber Outlet Hose (3/4” male BSP end fittings) Transparent Inlet Hose (3/4” male end fittings) Dispensing Nozzle assembly Carrying Handle c/w fixing screw/washer 12V or 24V Pump, c/w power cables & crocodile battery clips 3/4” BSP to 19mm Hose Adaptors (with O-rings) Foot Valve/Filter assembly Hose Clamps (pair) Parts &...
-
Page 6: Connection And Operation
CONNECTION & OPERATION WARNING: DO NOT USE WITH PETROL OR ANY OTHER HIGHLY FLAMMABLE LIQUID TO DUE TO THE POSSIBILITY OF SPARKING TAKING PLACE AND CAUSING FIRE. 1. Fit the carrying handle to the pump with the hex screw & washer provided. - Page 7 OFF (O) position BEFORE connecting the pump cables to the vehicle battery. CAUTION: ONLY CONNECT THE DFT12 PUMP TO A 12V BATTERY AND THE DFT24 PUMP TO A 24V BATTERY. 9. Ensure that the battery terminals are clean. 10. Connect the red-positive clamp to the red positive terminal first, then connect the black clamp to the black-negative terminal, ensuring the clamps are perfectly secure.
-
Page 8: Fault Finding
Pump rotor jammed. Check for possible damage or obstruction of the rotating parts. Motor fault. Return to Clarke Service Department for repair. Motor turns slowly Low supply voltage. Check condition of when starting. battery. -
Page 9: Maintenance
Keep the filter on the inlet hose free of accumulated dirt. Store the pump in dry conditions protected from the weather. For any problems requiring dismantling of the pump, contact your CLARKE dealer. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 10: Dft12/24 Component Parts
DFT12/24 COMPONENT PARTS PART NO DESCRIPTION PART NO DESCRIPTION Screw M5 x 10 Locknut Front Cover Tapered Bush O-Ring Nut M5 Rotor Cable Blade Motor 12V/24V Pump Body Bearing By-pass Spring Spring Collar Handle Seal Fuse 15A/25A By-pass Valve Fuse Holder... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
