Summary of Contents for Clarke DWP210A

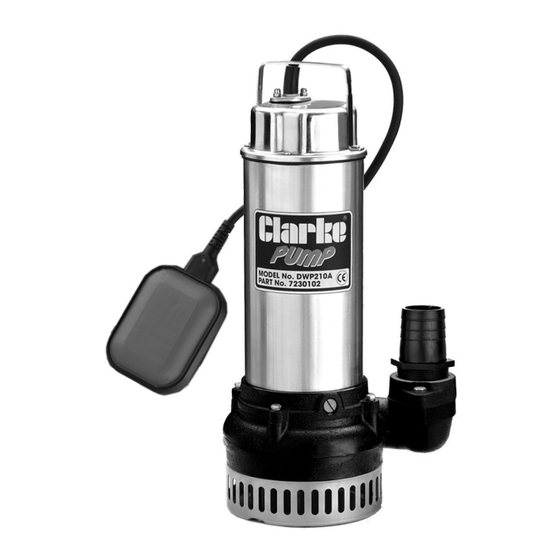

- Page 1 FOR USE WITH A 110V SUPPLY ONLY SUBMERSIBLE DIRTY WATER PUMP MODEL NO: DWP210A PART NO: 7230102 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS LS0620 - ISS 5...
-
Page 2: Environmental Recycling Policy
The DWP210A has the ability to pump solids in suspension as large as 7 mm. GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS GENERAL PUMP SPECIFIC 1. Read all instructions before use 1. Do not pump explosive / and store safely for future use. flammable liquids or chemicals. 2. The pump is to be supplied by an 2. Never allow the pump to run dry isolating transformer or supplied or operate out of the water. -
Page 4: Part Identification
PART IDENTIFICATION WATER INLET WATER OUTLET FLOAT SWITCH HANDLE CABLE Remove all packaging and make sure that the unit displays no visible damage. Dispose of all packaging appropriately. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO A POWER SUPPLY. This product can be connected to one of the following power supplies: • 110V Generator • 110V Isolating Transformer • 110V Site supply •... -
Page 6: Using The Pump
(not supplied) to the pump outlet. • Suitable hoses are available from your local Clarke dealer. 2. Place the pump on a flat surface in the area that you want to drain. • If there is sediment in the water, the pump should be placed vertically on house bricks, or similar. -
Page 7: Maintenance
IS UNPLUGGED FROM THE ELECTRICAL SUPPLY. IF THE UNIT IS HARD WIRED, ENSURE THE CIRCUIT BREAKER IS OPEN. This pump should require no maintenance other than regular cleaning. If the pump starts to show signs of wear or damage, contact your CLARKE dealer for advice. CLEANING 1. -
Page 8: Specifications
SPECIFICATIONS DWP210A Voltage 110V~50Hz Outlet Diameter 2“BSP (inc 2” Adaptor) Rated input Power 940W Power (at Maximum Flow) 1140 W Maximum Head Height 10 m Maximum Output 567 l/min. Maximum Depth Max Water Temperature Maximum Particle Size 7 mm Weight 22.3 kg... -
Page 9: Troubleshooting
7. Water level too low - float switch in OFF position - lift float to check switch. 8. If the pump still fails to start, consult your CLARKE dealer for advice. PUMP WILL 1. Check that the inlet is not blocked. -
Page 10: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 11: Parts List And Diagram
PARTS LIST & DIAGRAM To order a part, please quote ZGDWP210A+(Part ID number) Screw Washer 35 Spring Washer Strainer Oil Plug Screw 36 Screw Lower Casing O Ring 37 Handle O Ring Spring Washer 38 O Ring Bolt 39 Screw Spring Washer O Ring 40 Power Cable...
