Functional overview
• System-Monitoring display
• up to 4 temperature sensors
Pt1000
• 2 semiconductor relays for
pump speed control
• 9 basic systems to choose from
• heat quantity measurement
• RESOL VBus
®
• function control
• thermostat function
• thermal disinfection
• real time clock
• user-friendly operation
• easy-to-mount housing and
outstanding design
Technical data
Housing:
plastic, PC-ABS and PMMA
Protection type: IP 20 / DIN 40050
Ambient temp.: 0 ... 40 °C

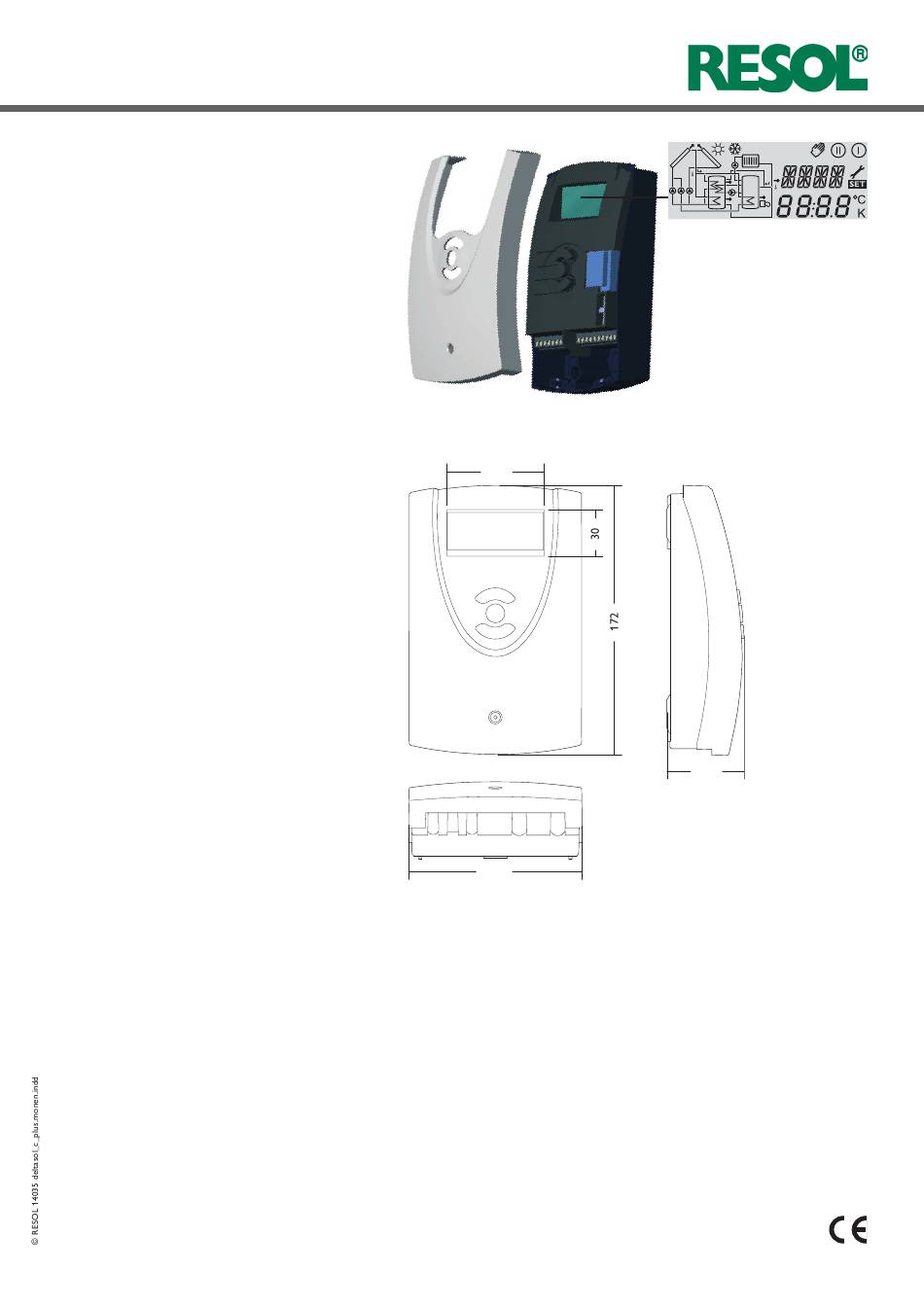

Dimensions: 172 x 111 x 49 mm
Mounting:
wall mounting, mounting into patch
panels is possible
Display: system monitor for systems
visualisation, 16-segment display, 7-seg-
ment display, pictograms
62
111
Operation: 3 push buttons at the
front of the housing
Functions: Thermal disinfection, func-
tion control, operating hours counter,
tube collector function, pump speed
control, thermostat function and heat
quantity measurement
Inputs: for 4 temperature sensors
Pt1000
Outputs: 2 semiconductor relays
Bus: RESOL VBus
®
ê
!
$
$
49
Power supply:
100 ... 240 V~
Total switching capacity:
2 (2) A (100 ... 240) V~
Switching capacity per relay:
semiconductor relay:
1 (1) A (100 ... 240) V~
