Resol DeltaSol C Plus Mounting, Connection, Operation, Troubleshooting, Examples page 7

C Plus
DeltaSol
®

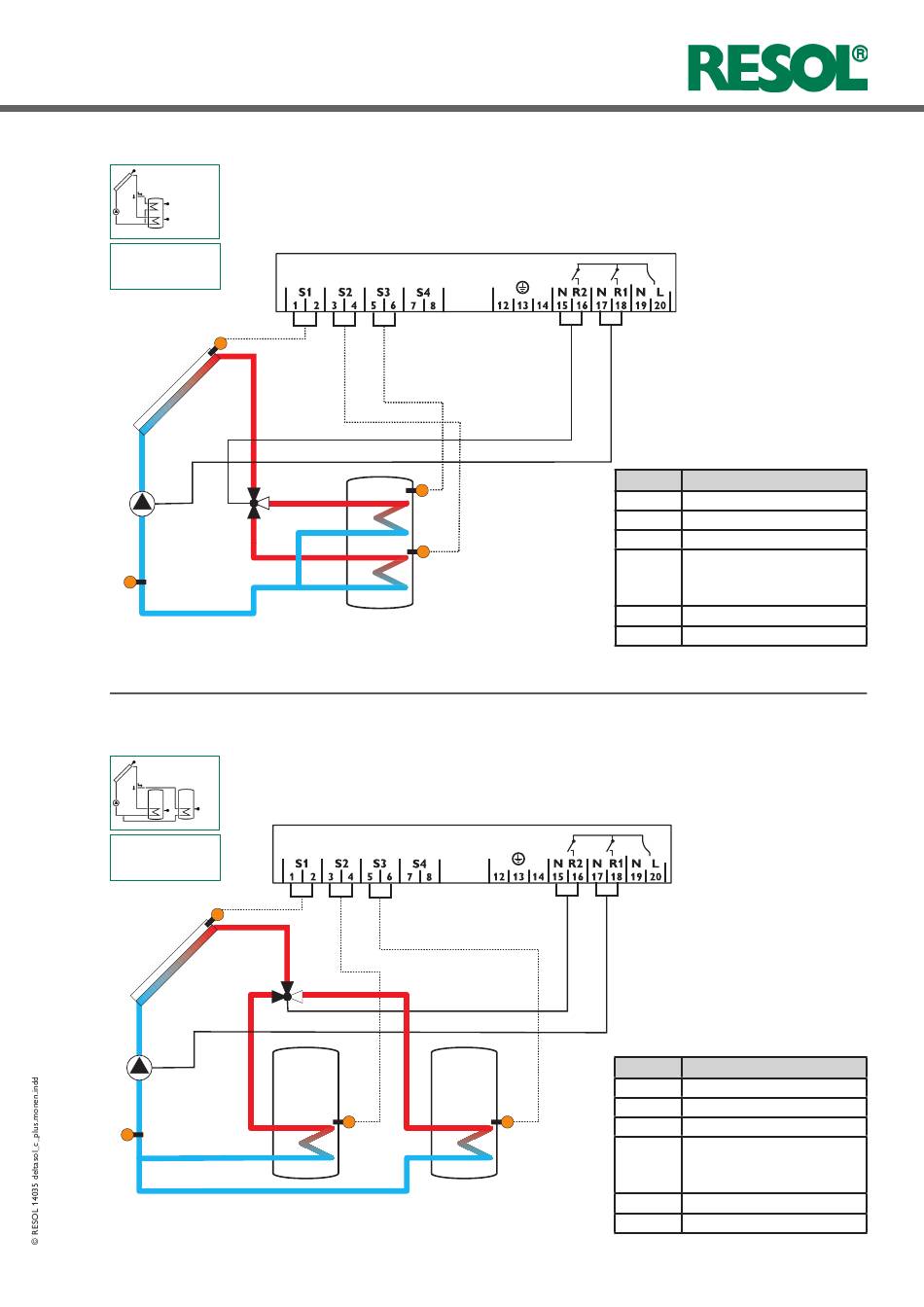

1.2.5 Terminal allocation Arr 4
ARR 4
S1
R1
R2
S4 / TRF
1.2.6 Terminal allocation Arr 5
ARR 5
S1
R2
R1
store 1
S4 / TRF
Solar system and vertical store charging with 1 store,
3 sensors, 1 solar pump and 3-port valve for vertical store
charging. Sensor S4 / TRF can optionnally be used for heat
quantity measurement.
S3
S2
2-store solar system with valve control with 2 stores,
3 sensors, 1 solar pump and 1 3-port valve. Sensor S4 / TRF
can optionnally be used for heat quantity measurement.
store 2
S2 S3
Symbol Description
S1 collector sensor
S2 store sensor base
S3 store sensor top
S4 / TRF sensor for heat quantity
measurement (optional)
R1 solar pump
R2 3-port valve
Symbol Description
S1 collector sensor
S2 store sensor 1
S3 store sensor 2
S4 / TRF sensor for heat quantity
measurement (optional)
R1 solar pump
R2 3-port valve
7
|
