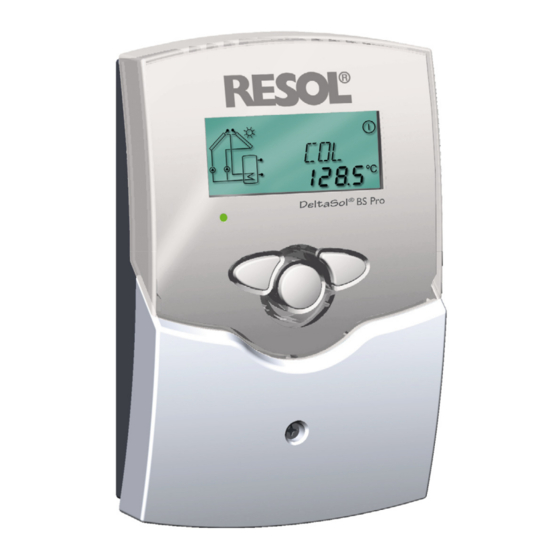

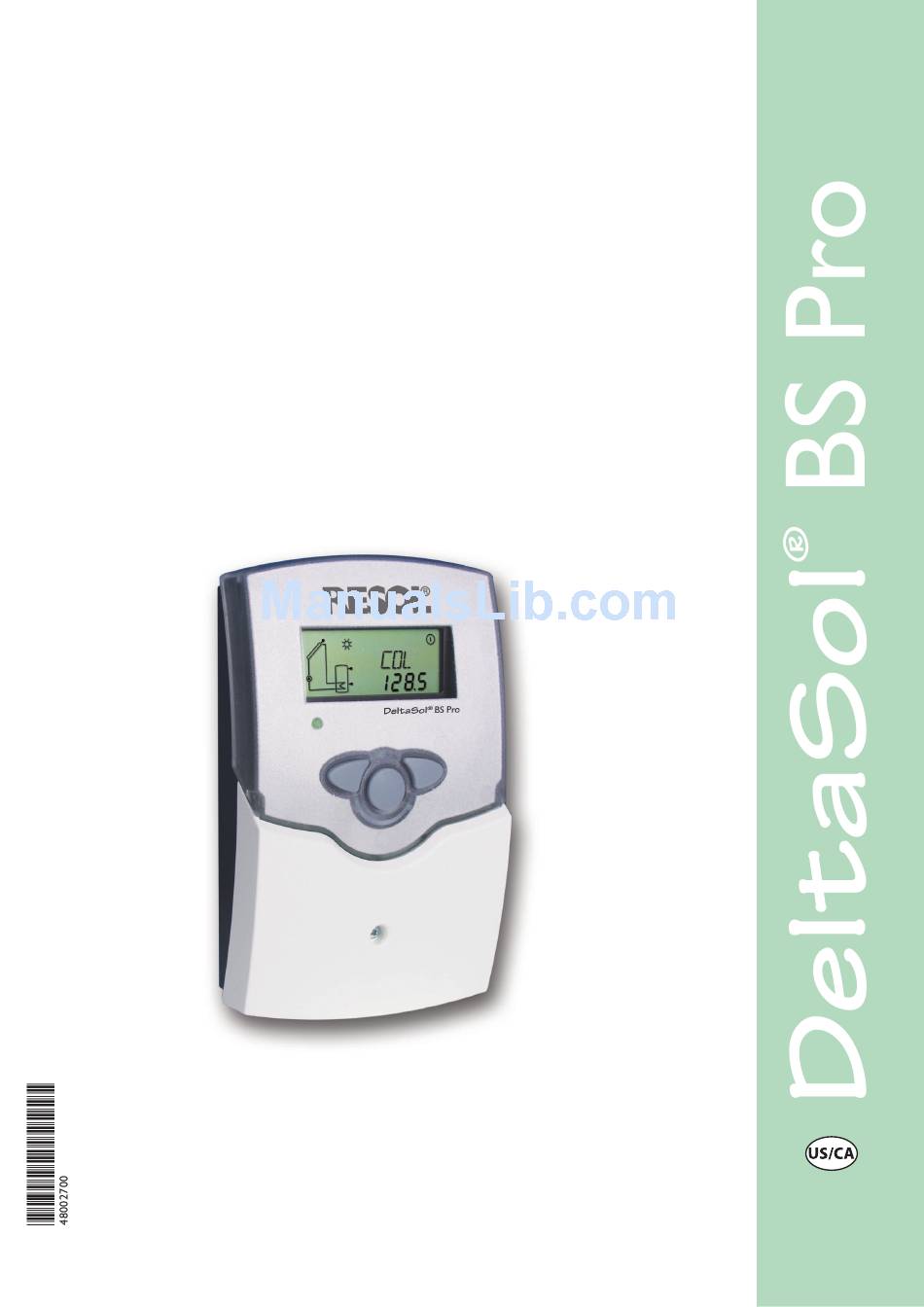

- Page 1 ® RESOL DeltaSol BS Pro Mounting Connection Handling Fault localization Examples manual Thanks for buying a RESOL product. Read this manual carefully to get the best perfomance from this unit. www.resol.de...
-
Page 2: Table Of Contents
Another use outside the copyright requires the solar system by wrong installation will be avoided. Please the approval of RESOL - Elektronische Regelungen GmbH. observe that the mounting is adapted to the characteristics This especially applies for copies, translations, micro films of the building, that the local regulations are respected and and the storage into electronic systems. -
Page 3: Technichal Data And Function Survey
BS Pro DeltaSol ® • System-monitoring-display • Up to 4 temperature sensors Pt1000 • 9 basic systems selectable • Heat balancing • Function control • User-friendly operation by simple handling • Housing in outstanding design and compact dimensions, easy to install ... -
Page 4: Installation
BS Pro DeltaSol ® Installation Warning! 1.1 Mounting Switch-off power supply before display opening the housing. The unit must only be located internally. It is not suitable for installation in hazardous locations and should not be sited near to any electromagnetic field. The controller must additionally be equipped with an all-polar gap of at least 3 mm pushbutton cover... -
Page 5: Standard Solar System
BS Pro DeltaSol ® 1.2.1 Allocation of clamps for system 1 Standard solar system with 1 store, 1 pump and 3 sen- sors. The sensor S4 / TRF can optionally be used for heat quantity balancing. Arr 1 Symbol Specification Collector sensor Store sensor lower Store sensor at the top... -
Page 6: Solar System And After-Heating
BS Pro DeltaSol ® 1.2.3 Allocation of clamps for system 3 Solar system and after-heating with 1 store, 3 sensors and after-heating. The sensor S4 / TRF can optionally be used for heat quantity balancing. Arr 3 Symbol Specification collector sensor store sensor lower store sensor at the top S4 / TRF... -
Page 7: 2-Store-Solar-System Valve Logic
BS Pro DeltaSol ® 1.2.5 Allocation of clamps for system 5 2-store-solar system with valve logic with 2 stores, 3 sensors, 1 solar pump and 1 3-way-valve. The sensor S4 / TRF can optionally be used for heat quantity balancing. Arr 5 Symbol Specification... -
Page 8: Solar System With 2 Collectors
BS Pro DeltaSol ® 1.2.7 Allocation of clamps for system 7 Solar system with east-west collectors, 1 store, 3 sensors and 2 solar pumps. Arr 7 Symbol Specification collector sensor 1 store sensor collector sensor 2 solar pump collector 1 solar pump collector 2 Solar system with after-heating by solid fuel boiler 1.2.8 Allocation of clamps for system 8... - Page 9 BS Pro DeltaSol ® 1.2.9 Allocation of clamps for system 9 Solar system and heating circuit reverse raising with 1 store, 4 sensors, 1 solar pump and 1 3-way-valve for heating circuit reverse raising. Arr 9 Symbol Specification collector sensor store sensor lower store sensor at the top heating circuit return...
-
Page 10: Operation And Function
BS Pro DeltaSol ® Operation and function 2.1 Pushbuttons for adjustment The controller is operated by 3 pushbuttons below the display. The forward-key (1) is used for scrolling forward through the indication menu or to increase the adjustment values. The backwards-key (2) is accordingly used for the reverse function. -
Page 11: System Screen
BS Pro DeltaSol ® 2.2.3 System screen The system screen (active system scheme) shows the schemes selected on the controller. It consists of several system component symbols, which are - depending on the current status of the system - either flashing, permanently shown or hidden. -
Page 12: Commissioning
BS Pro DeltaSol ® 3. Commissioning On commissioning you have to adjust primarily the system scheme 1. Ac power supply must be activated. The controller passes an initialisation phase in which the operating control lamp flashes red and green. After having finished the initialisation, Operation cont- the controller is in automatic operation with factory set- rol lamp... -
Page 13: Control Parameter And Indication Channels
BS Pro DeltaSol ® Controller parameter and indication channels 4.1 Channel-overview Corresponding channel is only available if the option heat Legend: quantity measurement is activated (OHQM). Corresponding channel is only available if the option heat Corresponding channel is available. quantity measurement is deactivated (OHQM). - Page 14 BS Pro DeltaSol ® Channel Specification Page option collector cooling collector 1 OCX1 option collector cooling collector 1 maximum temperature collector 1 CMX1 maximum temperature collector 1 option minimum limitation collector 1 OKN1 option minimum limitation collector 1 minimun temperature collector 1 CMN1 minimun temperature collector 1 option antifreeze collector 1...
- Page 15 BS Pro DeltaSol ® 4.1.1 Indicataion of collector temperatures Shows the current collector temperature. COL, COL1, COL2: Collector temperature • COL : collector temperature (1-collector-system) display range: -40 ... +480°F • COL1 : collector temperature 1 • COL2 : collector temperature 2 4.1.2 Indication of tank temperatures Shows the current tank temperature.
-
Page 16: Indication Channels
BS Pro DeltaSol ® 4.1.5 Operating hours counter The operating hours counter adds up the solar operating h P / h P1 / h P2: hours of the respective relay (h P / h P1 / hP2). Full hours operating hours counter are shown on the display. - Page 17 BS Pro DeltaSol ® 4.1.7 ∆T -regulation DT O / DT1O / DT2O / First the controller works in the same way as a standard differential controller. If the switch-on difference (DT O / DT3O: DT1O / DT2O) is reached, the pump is activated. If the Switch on temperature diff.
- Page 18 BS Pro DeltaSol ® 4.1.10 Collector temperature limitation If the adjusted collector limit temperature (EM / EM1 / Emergency shut down of the collector EM2) is exceeded the solar pump (R1/R2) is deactivated in order to avoid a damaging overheating of the solar components (collector emergency shutdown).
- Page 19 BS Pro DeltaSol ® 4.1.14 Oscillating charge Respective adjustment values: Factory setting Adjustment range priority [PRIO] (1 / Arr 5,6) (2 / Arr 4) oscillating break-time [tST] 2 min. 1-30 min. oscillating charge-time [tRUN] 15 min. 1-30 min. The DeltaSol BS Pro priority logic The above-mentioned options and parameters only have ®...
- Page 20 BS Pro DeltaSol ® 4.1.17 Thermostat function (Arr = 3) The thermostat function works independently from the after-heating use of surpluse energy solar operation and can e.g. be used for use of surplus energy or an after-heating. • AH O < AH F the thermostat function is used for after-heating •...
-
Page 21: Tips For Fault Localization
BS Pro DeltaSol ® 5. Tips for fault localization can fuse T4A If a malfunction occurs, a notification is given on the display of the controller: Warning symbol Operating control lamp Operating control lamp flashes red. On the display the Operating control lamp off symbols appear. -
Page 22: 5.1 Miscellaneous
BS Pro DeltaSol ® 5.1Various: Pump is overheated, but no heat transfer from collector Pump starts for a short moment, switches-on/off to the tank, feed flow and return flow are equally warm, reapeatedly possibly also bubble in the tubes Air in the system? Is the temperature diffe- Exhaust the system;... - Page 23 BS Pro DeltaSol ® Tanks are cooled during the night. Control the return flow Please also check further preventer in warm water pumps which are connec- circulation- o.k. ted to the solar tank. Does collector circuit pump run during the night? Check the controller Cleaning or replacement.
-
Page 24: Accessory
Overvoltage protection We highly recommend to install the RESOL overvoltage protection in order to avoid overvoltage damages at the collector (e.g. by lightening). Flowmeter...
