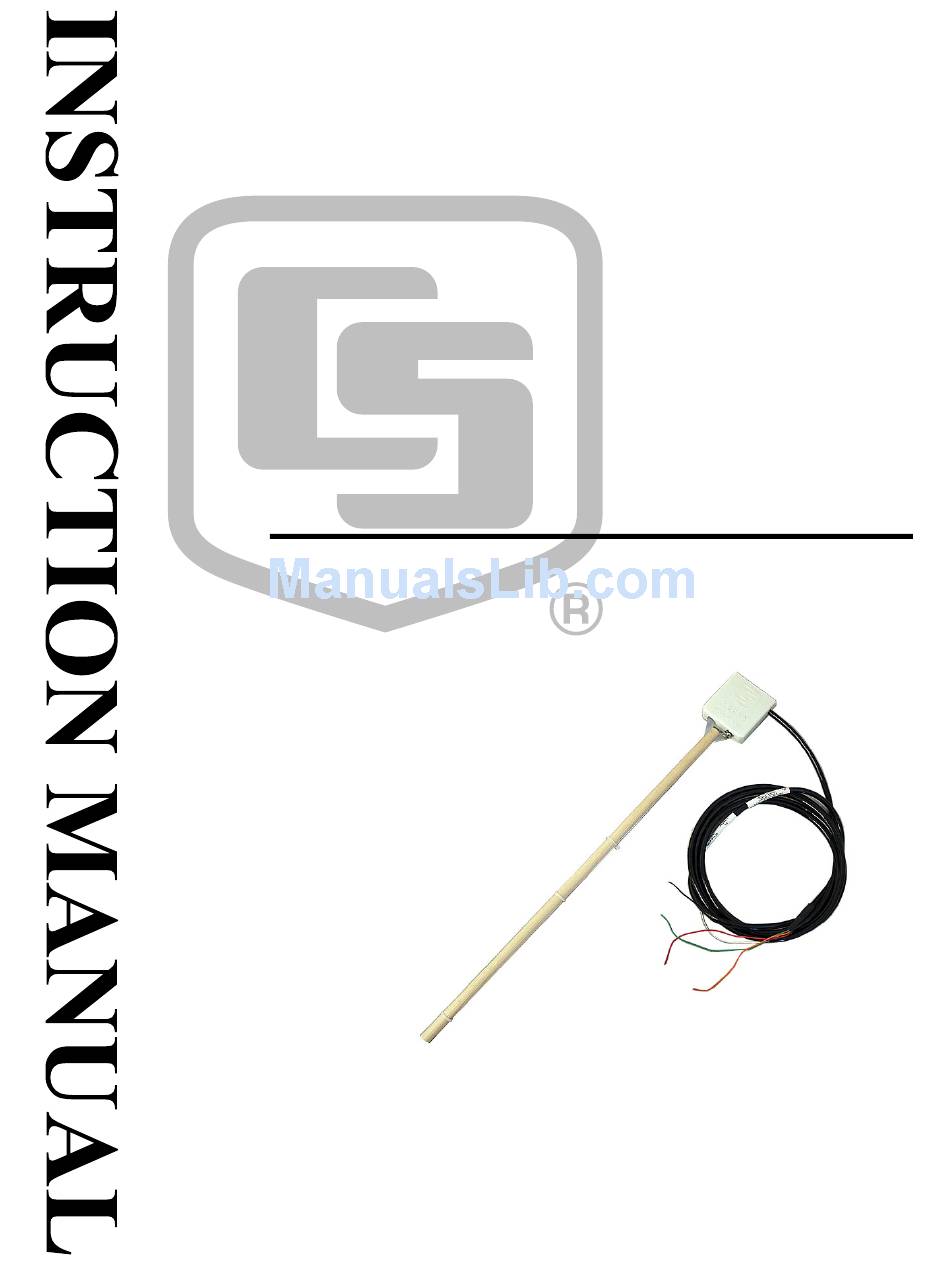

CS506 Fuel Moisture Sensor
Revision: 3/12
C o p y r i g h t
©
1 9 9 8 - 2 0 1 2
C a m p b e l l
S c i e n t i f i c ,
I n c .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS506 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Campbell CS506

Summary of Contents for Campbell CS506

  • Page 1 CS506 Fuel Moisture Sensor Revision: 3/12 C o p y r i g h t © 1 9 9 8 - 2 0 1 2 C a m p b e l l S c i e n t i f i c ,...
  • Page 3 Campbell pricelist or product manual. Products not manufactured, but that are re-sold by Campbell, are warranted only to the limits extended by the original manufacturer. Batteries, fine-wire thermocouples, desiccant, and other consumables have no warranty.
  • Page 4 SCIENTIFIC, INC., phone (435) 227-9000. After an applications engineer determines the nature of the problem, an RMA number will be issued. Please write this number clearly on the outside of the shipping container. Campbell Scientific's shipping address is: CAMPBELL SCIENTIFIC, INC.

  • Page 5: Table Of Contents

    CS506 Table of Contents PDF viewers: These page numbers refer to the printed version of this document. Use the PDF reader bookmarks tab for links to specific sections. 1. General Description.............1 2. Specifications ..............1 3. Installation..............2 4. Wiring................4 5. Datalogger Programming..........5 5.1 CR1000 Programming ................6...

  • Page 7: General Description

    Because the complete dowel surface is accessible for moisture exchange, the response of the CS506 is similar to that of the traditional weighing racks. To optimize probe-to-probe repeatability and to allow probe interchangeability without individual calibration, two additional sorts are performed on the dowels before they are selected to be used as a sensor.

  • Page 8: Installation

    3. Installation As shown in Figure 3-1 and Figure 3-2, both the CS506 and CS205 install on the 26817 mounting stake. The probes install horizontally and should point south in the northern hemisphere and north in the southern. The rack is mounted above a representative forest-floor duff layer.

  • Page 9: Back View Of The 26817 Fuel Moisture/Temperature Mounting Stake; Mount ~12-In. Over Duff Layer

    One cable tie passes through the two slots where the fuel moisture stick attaches to the CS506 sensor in order to loosely secure the cable of the CS205/107. The other two cable ties are used to secure both cables to the mounting stake.

  • Page 10: Front View Of The 26817 Fuel Moisture/Temperature Mounting Stake

    4. Wiring Connections to Campbell Scientific dataloggers are given in Table 4-1. When Short Cut for Windows software is used to create the datalogger program, the sensor should be wired to the channels shown on the wiring diagram created by Short Cut.

  • Page 11: Datalogger Programming

    Scientific’s Short Cut Program Builder software. You do not need to read this section to use Short Cut. The CS506 has a built in enable circuit. When voltage on the enable lead is less than 1 VDC, the sensor is off. When a voltage greater than 4 VDC, commonly 5 VDC, is applied to the enable lead, the sensor is on.

  • Page 12: Cr1000 Programming

    CS506 Fuel Moisture Sensor 5.1 CR1000 Programming The following program measures a CS506 fuel moisture sensor using the CRBasic PeriodAvg() instruction. See Table 5-1 for wiring details that match this program. 'CR1000 'CR1000 Program for CS506 'Declare Variables and Units...

  • Page 13: Cr10X Programming

    CS506 Fuel Moisture Sensor 5.2 CR10X Programming The following program measures a CS506 fuel moisture sensor using Edlog’s Instruction 27 (Period Averaging). See Table 5-1 for wiring details that match this program. ;{CR10X} ;CR10X Program for CS506 *Table 1 Program 01: 10.0000...

  • Page 14: Maintenance

    CS506 Fuel Moisture Sensor 8: Polynomial (P55) 1: 1 Reps 2: 1 X Loc [ PA_uS 3: 2 F(X) Loc [ FuelM 4: -73.797 5: 3.7685 6: 0.0406 7: 0.0 8: 0.0 9: 0.0 9: End (P95) 10: End (P95)
  • Page 16 Campbell Scientific Companies Campbell Scientific, Inc. (CSI) 815 West 1800 North Logan, Utah 84321 UNITED STATES www.campbellsci.com • info@campbellsci.com Campbell Scientific Africa Pty. Ltd. (CSAf) PO Box 2450 Somerset West 7129 SOUTH AFRICA www.csafrica.co.za • cleroux@csafrica.co.za Campbell Scientific Australia Pty. Ltd. (CSA)
