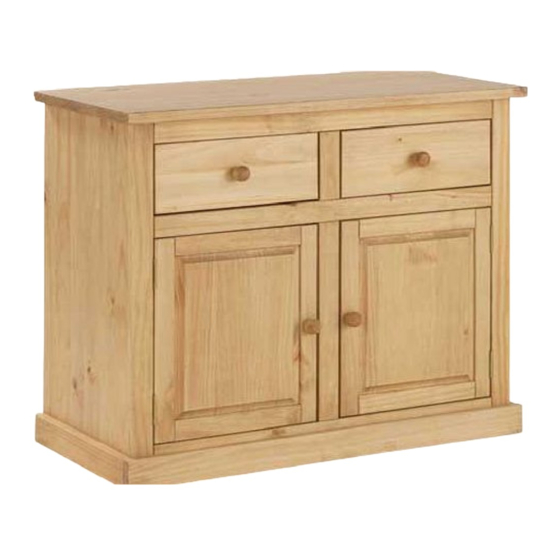

Harrington - 2 Drawer 2 Door Sideboard
Assembly Instructions
Dimensions
Width - 93cm
Depth - 45cm
Height - 80cm
Important
If you need help or have damaged or missing parts, call t h e A rgos Customer Helpline: 08456 400 800
or Homebase Customer Helpline: 0845 077 8888.
- Please keep for future reference
Please read these instructions fully before starting assembly
614/4238
137/6939
Issue 1 - 10/09/13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Harrington
Summary of Contents for Argos Harrington
- Page 1 Harrington - 2 Drawer 2 Door Sideboard Assembly Instructions 614/4238 - Please keep for future reference 137/6939 Dimensions Width - 93cm Depth - 45cm Height - 80cm Important Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call t h e A rgos Customer Helpline: 08456 400 800 or Homebase Customer Helpline: 0845 077 8888.
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly This product has been produced We do not Check you have all the components and tools listed on from natural timber; you may recommend the notice some variation in the grain use of power pages 2 and 3.
- Page 3 Components - Panels Please check you have all the panels listed below Right front frame (77,5 x 4,6cm) underside Left front frame (77,5 x 4,6cm) Door x2 Top panel (93 x 45cm) (43,6 x 36,8cm) Top front frame (79,2 x 4,7cm) Drawer front x2 (36,8 x 14,9cm) Middle front frame...
- Page 4 Components - Fittings If you have damaged or missing components, call the Argos Customer Helpline: 08456 400 800 or Homebase Customer Helpline: 0845 077 8888. Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 Assembly Instructions Step 1 Fixing right front frame to the right side panel (Two people required for an easier assembly) Insert right side panel into right front frame through joints. Yes! Note: Before fixing the 30m m blocks into place it is important to ensure that the slot and groove of parts are fully pushed together...
- Page 6 Assembly Instructions Step 3 Insert dowels into the indicated parts. Insert shelf support pins into side panels (2x) (2x) Step 4 Assembling parts. Put parts 10 12 together as shown in the diagram. Chanfred edges to be facing down. Note: Correct position of parts as shown.
- Page 7 Assembly Instructions Step 5 Insert the assembled frame into the holes on left side panel Step 6 Fixing panels. Attach base panel the left side panel Attention to the holes using screw Step 7 Fit right side panel the front frames and base panel, then fix it to the base panel using...
- Page 8 Assembly Instructions Step 8 Fixing bracket a: Fix bracket to the pre drilled holes on base panel using screws as shown in the diagram. b: Fix bracket to the bottom front frame using screw Step 9 Fixing middle drawer runner. Important: With help, carefully stand the...
- Page 9 Assembly Instructions Step 10 Fixing back column. Fit back column the base panel middle drawer runner then fix it using screw Step 11 Fixing top panel With help, fit top panel to the cabinet, then attach it using screws...
- Page 10 Assembly Instructions Step 12 Fit the two drawer runners , one in each side as shown in the diagram and fix them using screws Step 13 Important: With help, carefully lay down the product. Fix side plinths the side panels using screws Note: Make sure...
- Page 11 Assembly Instructions Step 14 Attention Fitting hinges to doors. With doors facing Profile View upwards, attach hinges to the pre drilled holes in the doors using screws Ensure countersunk detail on hinge is uppermost. Note correct position of the hinge as shown in the diagram.
- Page 12 Assembly Instructions Step 16 Attach handles to the doors using screw Attach plug to the pre-drilled holes in the doors using screws Step 17 a: Close the doors and insert clips into plugs . b: Fix clips using screws Attention! Make sure doors are fully closed and flush to the front frames before fixing...
- Page 13 Assembly Instructions Step 18 Insert shelf into the unit on the support pins. Make sure rounded edge is facing front. Attention! Rounded edge Step 19 Fixing back panels. Important: Cabinet MUST upright and square when back panels are attached. Attach the back panels using nails...
- Page 14 Assembly Instructions Step 20 Drawer assembly. Attach drawer sides to the drawer using screws front Slide drawer bottom into slots on drawer sides Attach drawer back using screws Using screw attach the drawer handle (2X) the drawer front. Repeat Step 20 for the other drawers.
- Page 15 Assembly Instructions Step 22 Note:Wall plugs are not supplied. The correct type of fixing must Fixing to wall. be used for your wall, seek professional advice if in doubt. Furniture must be fixed to a wall. Fix wall strap wall top of furniture using washer and screw...
- Page 16 A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
