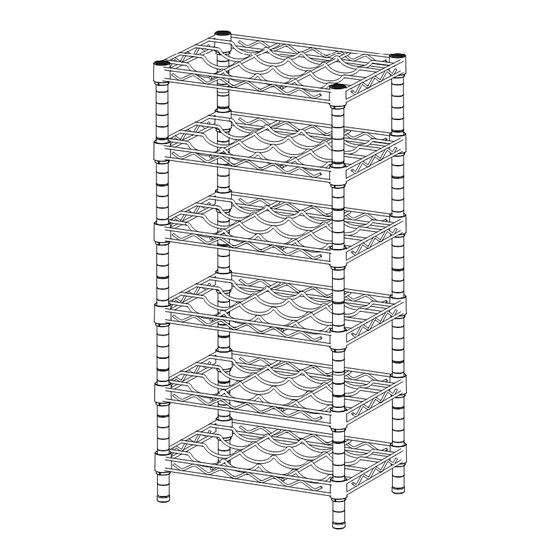

SLIMLINE METAL WINE RACK-24 BOTTLES
543/4176
45 cm
30 cm
90 cm
If you need help or have damaged or missing parts,call the Customer Helpline: Argos=03456 400800
Issue 1 - 04/09/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOME and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos HOME

  • Page 1 SLIMLINE METAL WINE RACK-24 BOTTLES 543/4176 45 cm 30 cm 90 cm If you need help or have damaged or missing parts,call the Customer Helpline: Argos=03456 400800 Issue 1 - 04/09/16...
  • Page 2: Handy Hints

    Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce components and tools listed on or put weight on the product, the likelihood of the following pages.
  • Page 3 Components - Shelf If you have damaged or missing components, call the Customer Helpline: Argos=03456 400800 Please check you have all the fittings listed below Wine shelf X 6 (45x30cm) Metal leg X 4 (2.5x 88.1cm) Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly.
  • Page 4 Assembly Instructions Step 1 Attaching wine shelf Attach plastic locking caps on to the metal as shown in fig 1. Slide down base wine shelf until it locks over plastic locking caps Push shelf firm to secure. fig 1 Alineadas Step 2 Attaching wine shelf Measure positon of...
  • Page 5 Assembly Instructions Step 3 Attaching wine shelf Repeat step 2 for the third wine shelf as desired. Alineadas Alineadas fig 3 Step 4 Attaching wine shelf Repeat step 2 for the fourth wine shelf as desired. Alineadas Alineadas fig 4...
  • Page 6 Assembly Instructions Step 5 Attaching wine shelf Repeat step 2 for the fifth wine shelf as desired. Alineadas Alineadas fig 5 Step 6 Attaching wine shelf Repeat step 2 for the last wine shelf as desired. Alineadas Alineadas fig 6...
  • Page 7 (A),then into the professional anchors (BB). advice if in doubt Warning: Before drilling,check wall for hidden pipes and cables. fig 8 If you need help or have damaged or missing parts,call the Customer Helpline: Argos=03456 400800...
  • Page 8: A Guide To - Wall Mounting & Fixings

    Car e & Safety : Always check the ftting Fitting: From time to time check the ftting to ensure the wall plugs and location to ensure your safety Maintenance or screws do not become loose. in and around the home.
