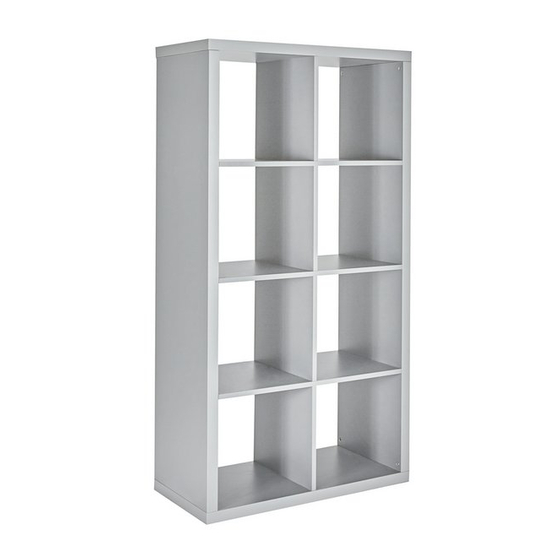

8 Cube Storage Unit
Assembly Instructions
011 xx 3557
- Please keep for future reference
Dimensions
Width - 61.2cm
Depth - 29.5cm
Height - 120.8cm
MADE IN
GREAT BRITAIN
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08450613967
Please turn to back page for important information when contacting Customer Helpline.
Rev A - 01/07/2013
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos HOME
Summary of Contents for Argos HOME
- Page 1 8 Cube Storage Unit Assembly Instructions 011 xx 3557 - Please keep for future reference Dimensions Width - 61.2cm Depth - 29.5cm Height - 120.8cm MADE IN GREAT BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08450613967 Please turn to back page for important information when contacting Customer Helpline.
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly Do not stand or put weight on Check you have all the We do not the product, this could cause components and tools listed on recommend the damage.
- Page 3 Components - Panels Please check you have all the panels listed below Important - Thick lines indicate finished edges 9096 9121 Top / Bottom x2 End Panel x2 (58.0x29.3cm) (120.8 x 29.5cm) 9101 9097 9098 Back Panel x4 Shelf x3 Divider x4 (30.8x29.5cm) (58.0x29.3cm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 0845 0613967 Please turn to back page for important information when contacting Customer Helpline. Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly, In some case more fittings may be supplied than are required.
-
Page 5: Exploded View
Exploded View 9096 9098 9097 9098 9097 9121 9098 9121 9097 9098 9101 9096... - Page 6 Assembly Instructions Step 1 30mm 50mm Fitting dowels to the 9098 divider panels. 1. Insert 2 of the 30mm dowels into the pre- drilled holes in one end of the divider panel 9098 and 2 50mm dowels into other end of the 9098 same panel.
- Page 7 Assembly Instructions Step 4 Connect the divider to the shelf and the next divider. Slide the dowels (already inserted) in the divider panel 9098 through the 9098 shelf panel 9097 into the next divider panel 9098 9097 9098 Step 5 Connect the bottom divider to the shelf and the remaining divider.
- Page 8 Assembly Instructions Step 6 Connect top/bottom panels to the dividers panels. 9098 Insert the dowels (already 9096 inserted into the divider panels) 9098 into the pre- drilled holes in the top & 9096 bottom panels 9098 9096 Step 7 Fasten one of the end panels to the shelves and top/bottom panels.
- Page 9 Assembly Instructions Step 8 Fasten the other end panel to the shelf and top & bottom panels. 9096 Connect the end panel 9121 to the dowels in 9121 the shelf panels 9097 9097 9097 Secure the end panel 9097 9121 in place by using screws and screwing...
- Page 10 Assembly Instructions Step 10 Attach the 4 back panels. Plain chipboard surface Ensure that you measure the backpanel and attach the longest side as shown. 9101 Use the panel pin guide when locating the panel pins. This will hold the 9101 9101 panel pins vertically.
- Page 11 Assembly Instructions Step 12 Use the cover caps to conseal exposed fittings. Using the 10 cover caps provided, conceal the exposed screws by placing these caps over them.
- Page 12 Assembly Instructions Congratulations! Your unit is complete. Important Information If you need help or have damaged or missing parts, call the Customer Helpline: 0845 061 3967 8am - 4.30pm (Monday to Thursday) 8am - 2.30pm (Fridays) (by contacting the customer service line your statutory rights are not a ected) Please have the following information to hand: >>...
