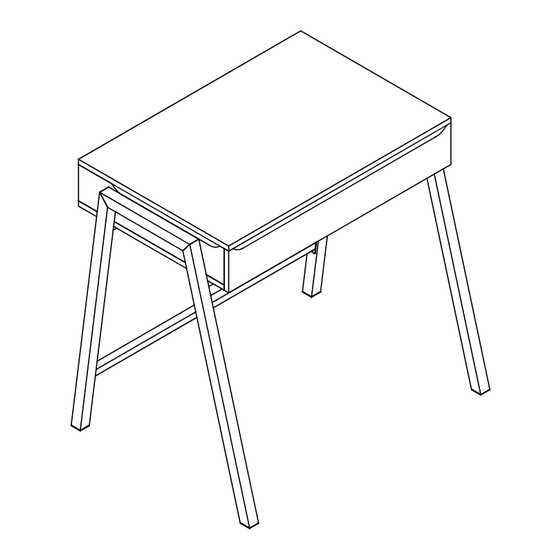

Flip up storage desk oak

Advertisement

Quick Links

FLIP UP STORAGE DESK OAK
Assembly Instructions
615/1795
- Please keep for future reference
Dimensions
Width - 80cm
Depth - 60cm
Height - 75cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 640 0800
Issue 1 - 12/05/16

Advertisement

loading
Need help?

Need help?

Do you have a question about the Home 615/1795 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Home 615/1795

  • Page 1 Width - 80cm Depth - 60cm Height - 75cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 640 0800 Issue 1 - 12/05/16...
  • Page 3 0345 6400800 Left side panel Back panel Top panel Right side panel x1 Bottom panel Front panel Left leg Right leg Upper rod Lower rod...
  • Page 4 Cam pillar x6 Dowel x3 Cam nut x6 30mm Screw x2 25mm Screw x13 12mm Screw x8 12mm Screw x16 Hinge x2 Hinge x1 Felt Pads x2...
  • Page 5 Assembly Instructions Assembly Instructions Step 1 Attaching side panels Attach left panel and right panel to back by using cam panel pillar cam nut dowel as shown. Fasten cam nut shown. Step 2 Turn Step 1 upside down prepare for step 3.
  • Page 6 Assembly Instructions Assembly Instructions Step 3 Attaching bottom panel Attach bottom panel to side panels by using screws as shown. Step 4 Preparing front panel Fasten cam pillars insert dowel to front panel as shown.
  • Page 7 Assembly Instructions Assembly Instructions Step 5 Attaching front panel Attach front panel to compartment as shown Fasten cam nut shown. Step 6 Attaching connecting rods Attach upper rods and lower rod to left by using screw as shown.
  • Page 8 Assembly Instructions Step 7 Attaching leg Attach Step 6 to right by using screw as shown. Note. For steps 6 and 7 do not fully tigthen all screws; this makes step 8 more easy to assemble. Step 8 Attaching compartment to metal frame Attach compartment to metal frame by using...
  • Page 9 Assembly Instructions Step 9 Preparing top panel Fasten hinge to top panel by using screw as shown. Step 10 Attaching top panel Attach top panel compartment by using screw as shown.
  • Page 10 Attach felt pads where indicated. Finally re-check all fixing screws to ensure they are fully tightened. Step 12 Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800...
