Consider that this location of the transceiver should not interfere with
the driver and passengers. Choose a spot where the microphone and
all controls are easily accessible.
1)
Put the mounting bracket on the proper location where you are
going to install.
2)
Drill holes and fix mounting bracket on the location.
3)

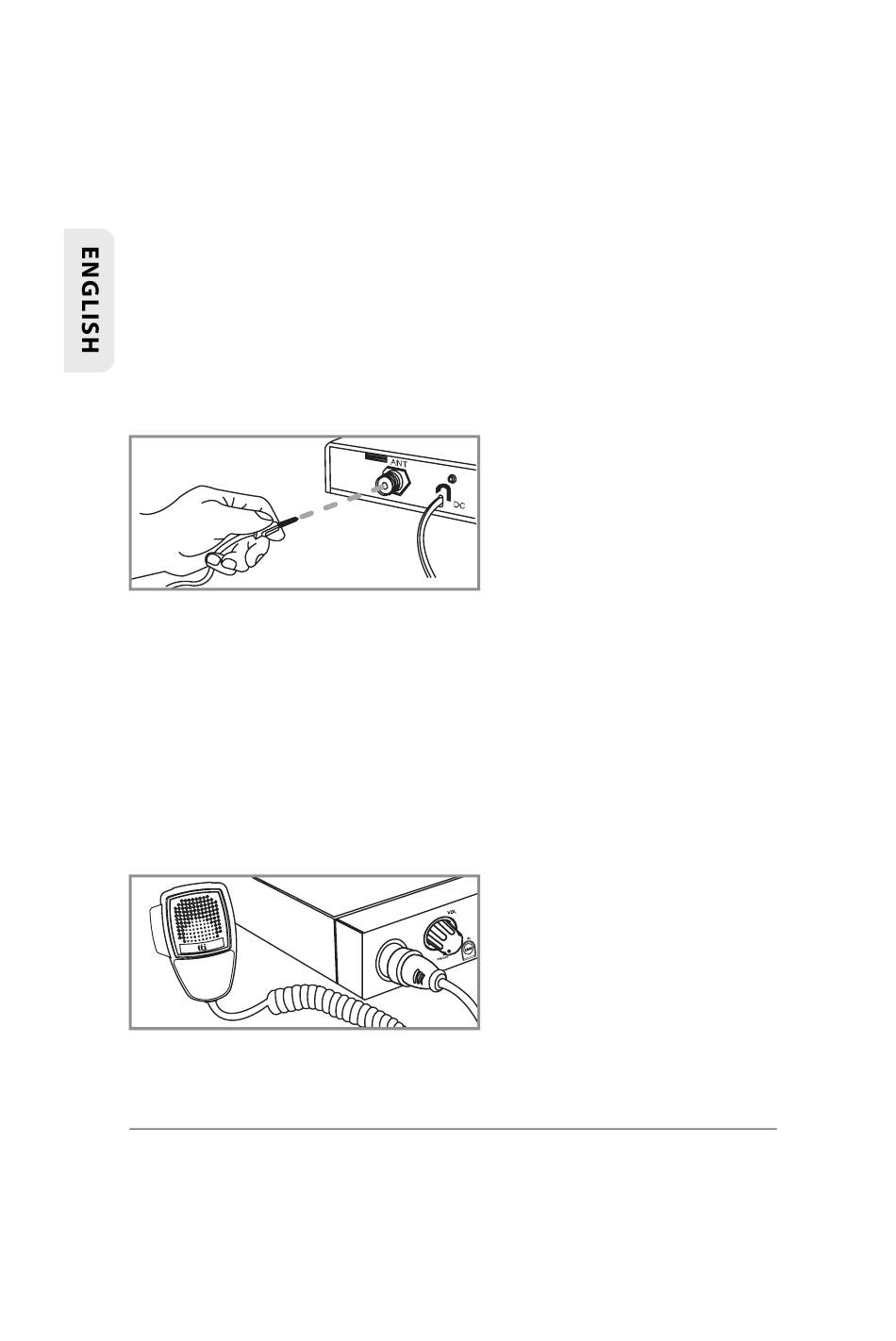

Connect the antenna cable plug to the standard receptacle
on the transceiver, which is marked "ANT".
4) Connect the power cable directly to the vehicle battery or fuse box
of the car. Be careful to make sure of the polarity of the battery first
and connect the cable.(Red: Positive Pole(+), Black: Negative Pole(-).
The same colours are shown on the battery and in the fuse box of
the car.)
5)
Mount the microphone bracket on one side of the transceiver, or
near it using two screws included.
6)
Connect the microphone to the transceiver's microphone
receptacle. Now you are ready to operate the transceiver.
4
TCB-560
