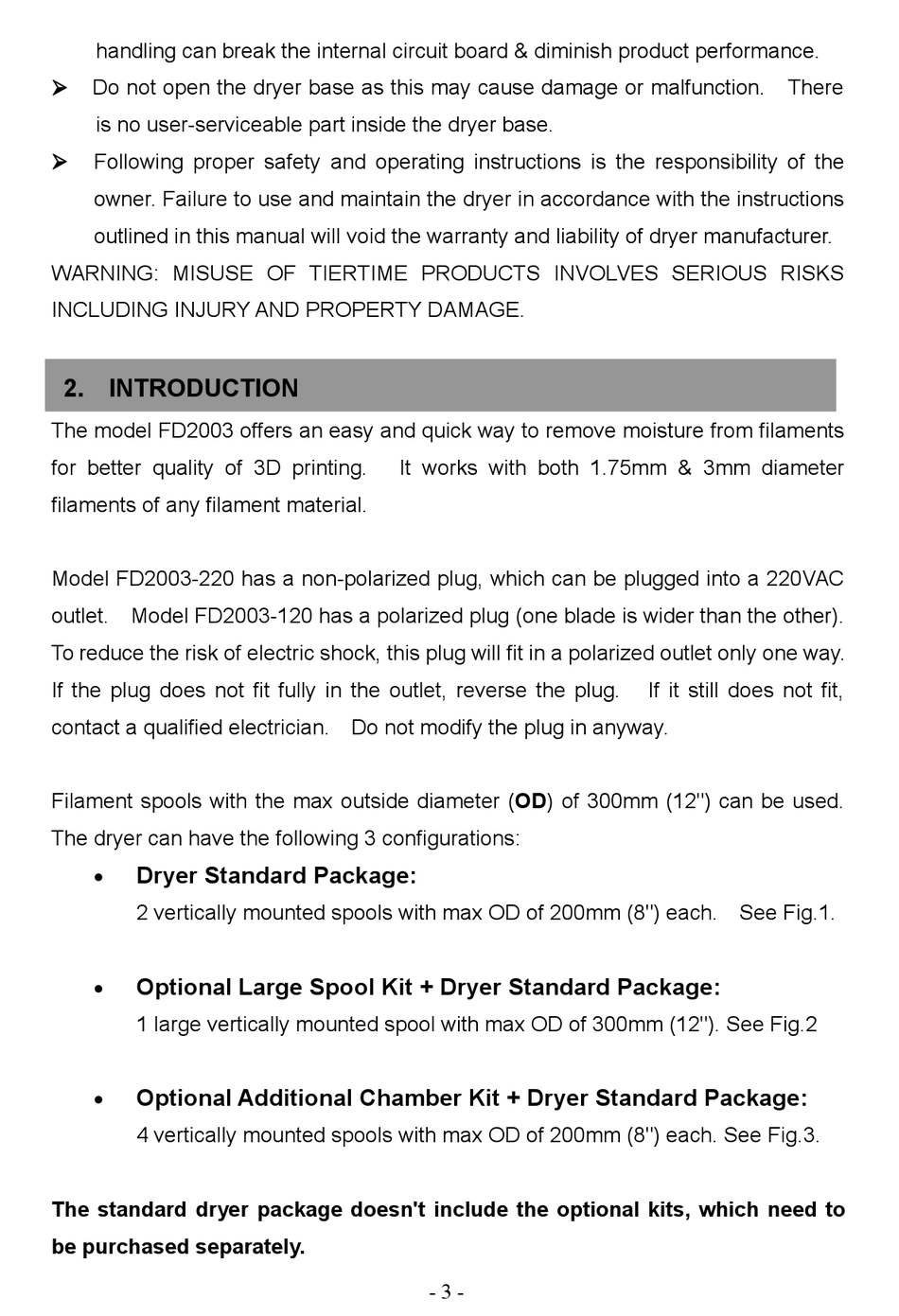

TierTime Filament Dryer PRO Instruction Manual page 3

handling can break the internal circuit board & diminish product performance.
Do not open the dryer base as this may cause damage or malfunction.

is no user-serviceable part inside the dryer base.
Following proper safety and operating instructions is the responsibility of the

owner. Failure to use and maintain the dryer in accordance with the instructions
outlined in this manual will void the warranty and liability of dryer manufacturer.
WARNING: MISUSE OF TIERTIME PRODUCTS INVOLVES SERIOUS RISKS
INCLUDING INJURY AND PROPERTY DAMAGE.
2. INTRODUCTION
The model FD2003 offers an easy and quick way to remove moisture from filaments
for better quality of 3D printing.
filaments of any filament material.
Model FD2003-220 has a non-polarized plug, which can be plugged into a 220VAC
outlet. Model FD2003-120 has a polarized plug (one blade is wider than the other).
To reduce the risk of electric shock, this plug will fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet, reverse the plug.
contact a qualified electrician. Do not modify the plug in anyway.
Filament spools with the max outside diameter (OD) of 300mm (12") can be used.
The dryer can have the following 3 configurations:
Dryer Standard Package:

2 vertically mounted spools with max OD of 200mm (8") each. See Fig.1.
Optional Large Spool Kit + Dryer Standard Package:

1 large vertically mounted spool with max OD of 300mm (12"). See Fig.2
Optional Additional Chamber Kit + Dryer Standard Package:

4 vertically mounted spools with max OD of 200mm (8") each. See Fig.3.
The standard dryer package doesn't include the optional kits, which need to
be purchased separately.
It works with both 1.75mm & 3mm diameter
- 3 -
There
If it still does not fit,
