Lockly FLEX TOUCH PGD7Y - Fingerprint Deadbolt Manual

Product Features

Advanced 3D Fingerprint Recognition
Biometric Fingerprint Recognition protocol stores up to 99 unique fingerprints.
Accepts only actual fingerprints (no copies or lifted prints) for extra security.

Auto Lock Feature
Never worry that you forgot to lock your door. Custom auto lock feature can be set to automatically lock 5 seconds up to 5 minutes after unlocking, making sure your door is always secure.

External Battery and Physical Key Backup
Open with physical backup keys or access externally with emergency power backup via 9V battery that attaches to external contacts and your registered fingerprint.

Access Profile Duplication
Allows time saving, secure copying and pasting through the Lockly app of duplicate fingerprint and eKey profiles from one lock to another lock.

Multi-door Locking Mode
Easily program all your Lockly smart locks to lock simultaneously with one touch using the Lockly app, Amazon Alexa or Google Assistant.*

SmartSync Monitoring
Check real-time* door status and access history on your smartphone with Lockly mobile app or through Lockly/OS™ online tool anytime, from anywhere.

For additional support scan or visit Lockly.com/help or email help@Lockly.com

*Requires optional Secure Link Wi-Fi Hub (sold separately - www.Lockly.com)

Product Overview

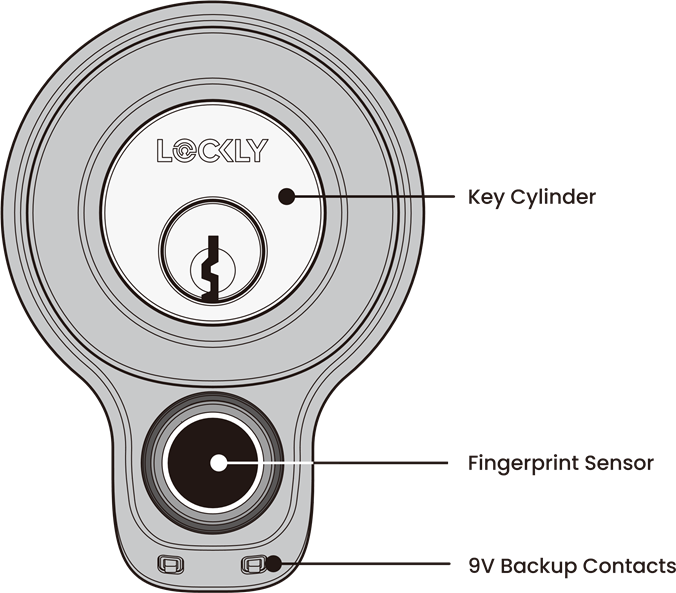

Exterior

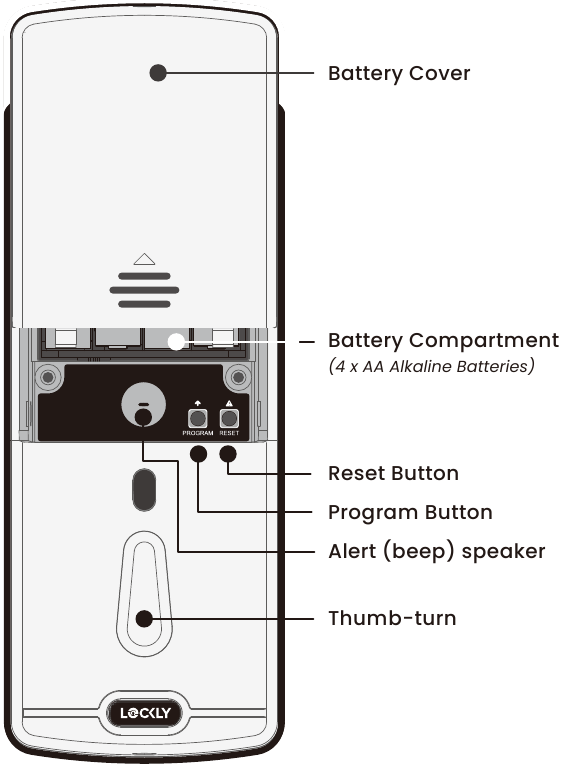

Interior

Getting the Most From Your Lockly

To get the most out of your lock be sure to read completely through this manual to learn all of its features and capabilities.

Lockly smart locks are at their full potential when used with the free Lockly app.
Be sure to download to take advantage of all of the connected features.

If you have any questions or need help contact customer care at help@Lockly.com or online Lockly.com/help

To speak to a customer care representative, call (669) 500-8835
Monday to Friday, from 11 AM to 7 PM PST

You can also send an email to help@Lockly.com

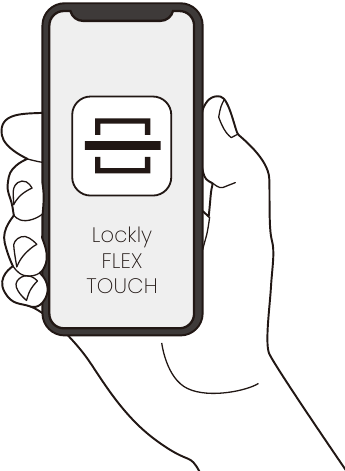

Get the Free App scan or visit Lockly.com/app

Pair Lock with the Lockly App

To pair your lock with the free Lockly mobile app, you must have your Activation Code available. The Activation Code is specific to your lock and is located on the Activation Code Card included with you smart lock.

1. If you have not, download the Lockly app from the App Store or on Google Play.
2. Open the App and create an account, or log into your existing account.
3. Select set up a new device.
4. Stand within Bluetooth range (10/ft or less) of lock and choose lock model you wish to pair.
5. Turn on your Bluetooth through your phone settings and select start connecting
6. Choose the lock you wish to pair (e.g. Lockly Flex Touch) and select Yes

Continue to follow on-screen instruction to complete pairing and set-up.

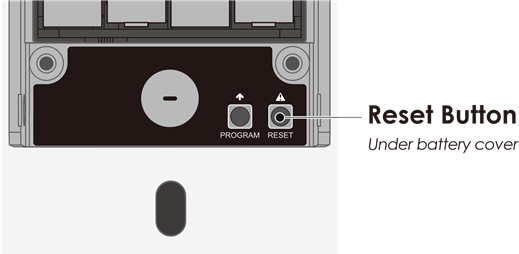

Resetting Your Lock

In order to restore your lock to factory default settings, you must have your "Activation Code" available. The Activation Code is specific to your lock and is located on the Activation Code Card included with you smart lock, see "Pair Lock with Lockly App".

To reset, push the reset button located under the battery cover, in the lower right corner.

once the smart lock has been reset, all previously stored data will be deleted.

To add your lock to the mobile app have your activation code available and refer to "Pair Lock with Lockly app".

Press Reset Button for one (1) second or till you hear a short beep

See re-pairing your lock to the Lockly app

Low Battery Alert

Lockly Flex Touch will notify you with a continuous beep that it's time to change the batteries before they reach critical level. You should replace the batteries immediately to avoid the lock from shutting down and auto locking.

If you do not change the batteries after hearing the low battery warning alert beeps, the alert will eventually stop. You will then have 3 chances to unlock using your fingerprint. If unlocking was successful, the low battery warning alert will come back on for one minute. The lock will then auto-lock (within 5 seconds) and return to low battery mode.

Condition	Indicator	Solution
Low Battery	Low battery warning alert (continuous beep).	Replace batteries immediately to avoid battery failure. Lock may still operate for a short period (up to 300 cycles) in low battery condition.
Dead Battery	When there is no alarm sound(continuous beep)and fingerprint access is non-functional.	Replace batteries immediately. Supplied physical backup keys can be used to unlock the door. Alternatively, use a 9V battery as shown below to temporarily activate the lock.

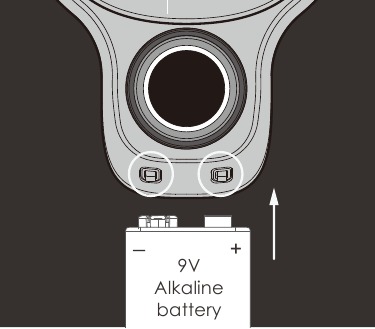

Hold a 9V alkaline battery against the contact points located at the bottom front side of the lock hold to activate the fingerprint reader and scan a registered fingerprint to unlock. Once unlocked, replace batteries immediately.

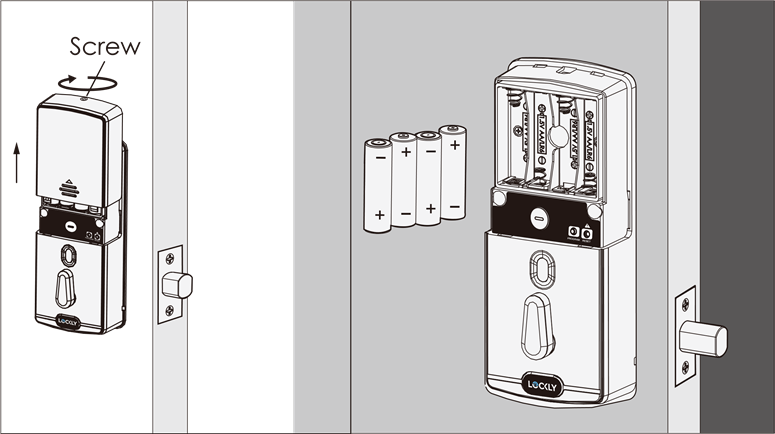

Changing Batteries

Under normal use, batteries can last up to a year. Check batteries regularly and change right away when the low battery alarm notification is heard. As a best practice, always use new, major brand, alkaline batteries.

Open the battery compartment cover by unscrewing the screw located on the top of the cover and sliding the cover up. Install four (4) new AA alkaline batteries as shown. Reinstall cover and tighten screw.

• Make sure the batteries are correctly oriented.
• Replacement of batteries does not affect programmed data.
• Replace only with new batteries. DO NOT mix with used batteries.

Whenever batteries are replaced, reconnecting the smart lock to your smartphone app is required. To downloaded the app, visit: Lockly.com/app

Using Your Smart Lock

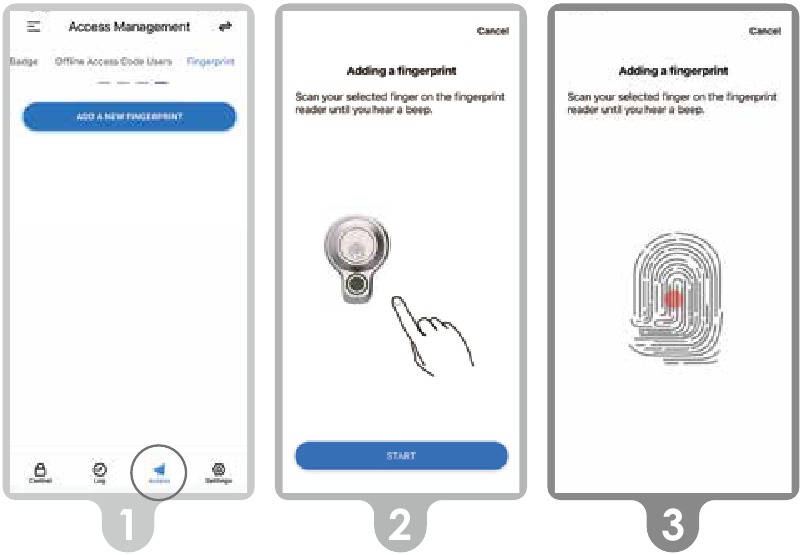

Adding a Fingerprint

Lockly Flex Touch can store up to 99 fingerprints. Fingerprints are added and registered using the free Lockly app for iOS or Android. Download the Lockly app from the App Store or on Google Play then register a new fingerprint under Access > Fingerprint and follow the on-screen prompts.

Lockly uses an advanced biometric sensor, providing the most secure fingerprint authentication. For security reasons, the sensor only accepts fingerprint patterns that consist of cross intersection points. Patterns with no cross intersection points are not acceptable.

TIP: check your fingers before registration to make sure the finger you want to register will be acceptable. If not, use an alternate finger to ensure successful registration. The following examples show which types of fingerprint patterns are acceptable. It is highly recommended to enroll at least one finger from each hand in case the hand you are using is unavailable, (e.g., holding items in that hand or finger is injured and/or covered.

• Fingerprint pattern with cross intersection lines

• Concentric or parallel pattern with no cross intersection lines

• Fingerprint with scars or worn out ridges


Make sure fingers and sensor are clean and free of dirt, oil, water, sweat, or any other moisture or foreign material. Sensor can be cleaned by wiping with a lint-free microfiber cloth.

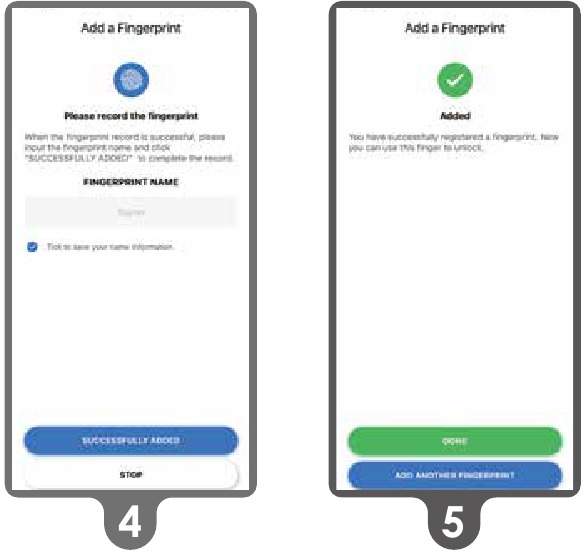

On the Lockly app, select the Lockly Flex Touch you wish to add a fingerprint. Go to Access > Access Management > Access > Fingerprint.

Select the finger you wish to register and tap "Start."

Scan your selected finger until you hear a beep indicating your fingerprint has been successfully registered.

Enter a Fingerprint name to save the profile, then tap "Successfully Added"

Tap "Add Another Fingerprint" to register additional fingers or tap "Done".

TIP: Scan the same finger more than once to increase accuracy.

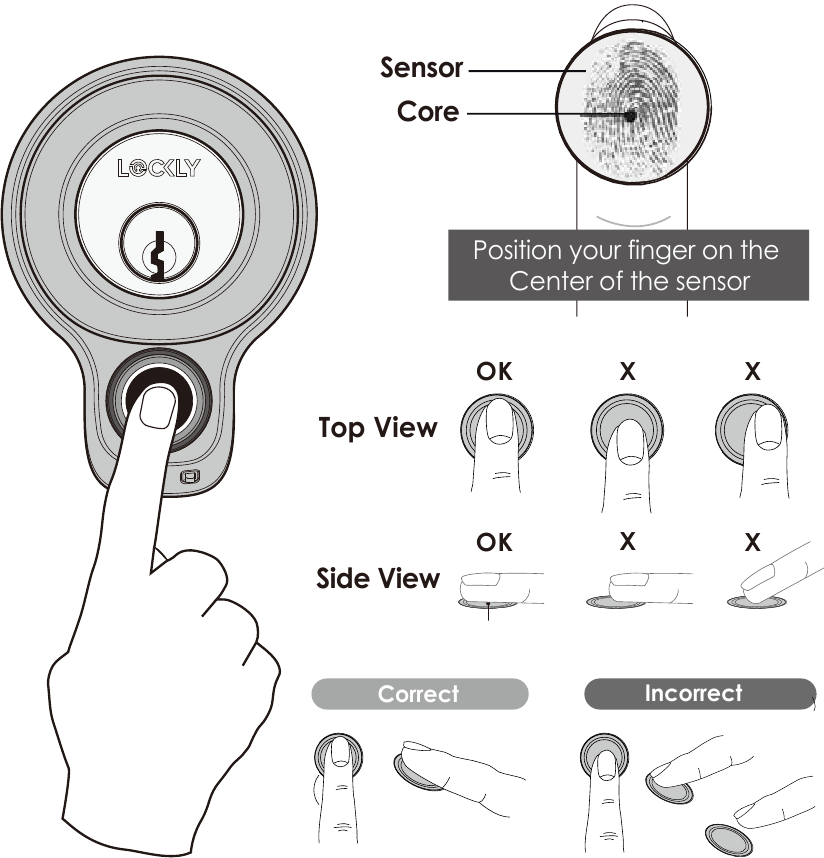

Fingerprint Scanning

Lockly fingerprint sensors use powerful fingerprint reading algorithms that are able to detect most fingerprints accurately and quickly, even in less than ideal conditions. Knowing how to place your finger on the sensor correctly helps with consistent and fast recognition.

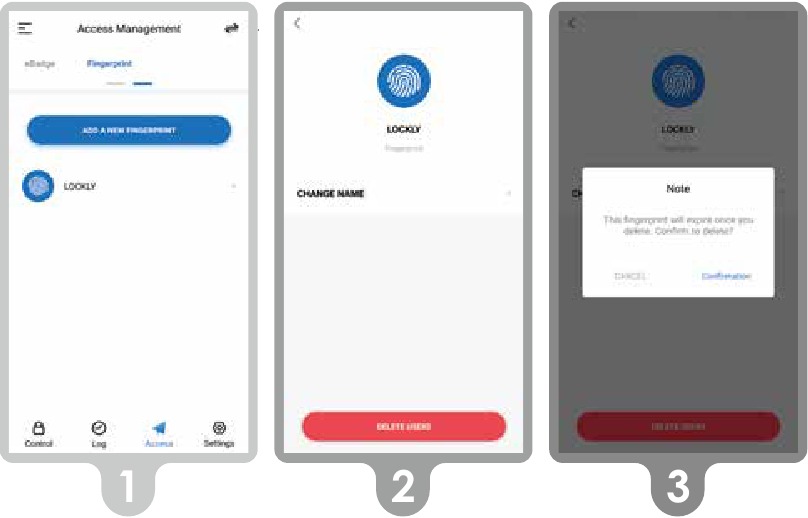

Deleting Fingerprints

On the Lockly app, select the Lockly Flex Touch you wish to delete a fingerprint on. Go to Access Management > Fingerprint. Select the fingerprint by name you wish to delete.

Select [DELETE USER] at bottom.

Confirm. Once a registered fingerprint has been deleted it cannot be recovered. You will need to re-register the finger as a new fingerprint to restore.

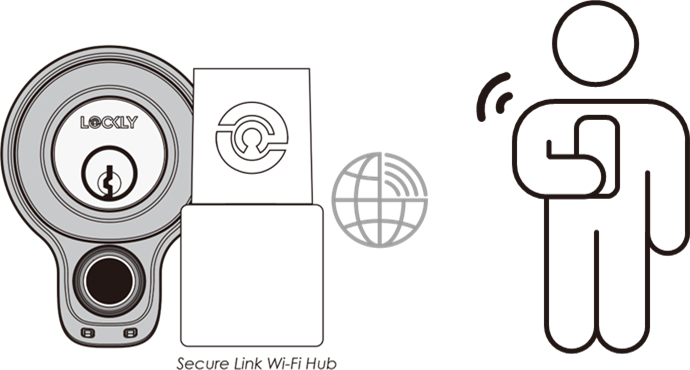

Adding Optional Secure Link Wi-Fi hub

Add Wi-Fi capability by adding the Lockly Secure Link Wi-Fi Hub. Securely control and manage your door from anywhere, anytime. Remotely lock or unlock, check door status, grant guest eKeys, Offline Access Codes™, and see who's coming and going, all from the convenience of your smartphone. The hub also enables voice control allowing you to use your Alexa or Google Assistant-enabled devices.

To set up the Lockly Secure Link and Door Sensor, launch the Lockly App, from the main menu drop down located on the upper left of the screen, select "Add a New Device" then select "Secure Link Wi-Fi Hub". Follow the in-app instructions. To activate voice commands, you will need the Google Home Assistant or Amazon Alexa device with Actions (Google) and Skill (Amazon) added before you can configure voice commands.

Available online at: Lockly.com/hub

Locking and Unlocking

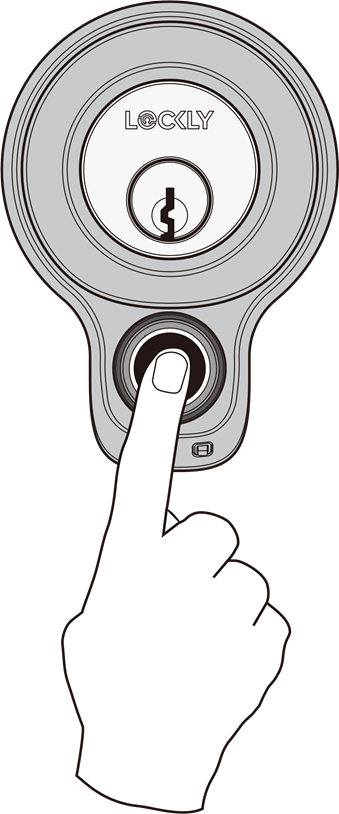

Locking/Unlocking with Finger

Unlocking

Place a registered finger (to register see "Adding a Fingerprint" section) to the fingerprint scanner on the low exterior of the lock.

If your fingerprint is acknowledged, you will hear a "beep" a green LED will light, and the deadbolt will unlock.

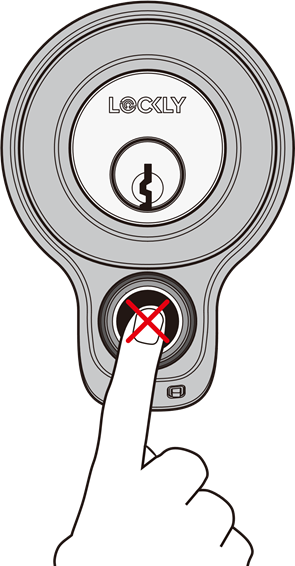

If you see a red LED, it means your fingerprint is not recognized. Wait until the red LED turns off, then try again.

See "Fingerprint Scanning Directions" Section for tips on best fingerprint scanning practices

Locking

To lock, press the fingerprint sensor anytime when the door is closed.

Locking/Unlocking with App

Open the Lockly app and select your lock (e.g., Lockly Flex Touch) tap the lock or unlock icon.

You will also need the app in order to lock and unlock with your Amazon Alexa or Google Assistant-enabled devices. To download, visit the link below or search "Lockly" in the App Store or on Google Play.

Scan or visit Lockly.com/app

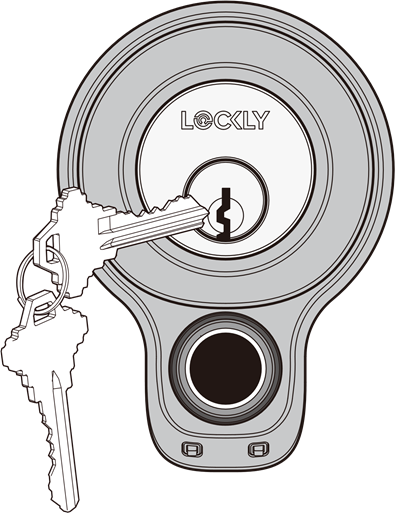

Locking/Unlocking with Physical Key

To unlock your lock using the physical key (included), insert your key and turn clockwise or counter clockwise to lock or unlock the door.

Locking and Unlocking with Voice Assistants

Lockly Flex Touch can be used with your Amazon Alexa or Google Assistant-enabled devices with the addition of the optional Lockly Secure Link Wi-Fi Hub. Once installed and configured properly to your lock, make sure you enable the Lockly Action on Google or the Amazon Alexa Skill before performing voice commands.

Once configured, you can ask questions such as door status or requests for your door to be locked or unlocked.

EXAMPLES:

• "Hey Google, unlock the Back Door"
• "Hey Google, is the Back Door locked?"
• "Hey Google, lock the Back Door"
• "Hey Google, is the Back Door unlocked?"

Pre-setup is required in the Google Home app in order for these queries to work. The user would need to the name the lock "Back Door" or as appropriate.

• Alexa, unlock my Front Door.*
• Alexa, is my Front Door locked?
• Alexa, lock my Front Door.
• Alexa, is my Front Door unlocked?

*Unlock requests require additional voice security codes that can be configure in the Lockly app settings.

Rain Mode

To protect the lock and extend battery life, Lockly Flex Touch automatically enters Rain Mode whenever rain or water is detected on the fingerprint sensor for more than 45 seconds. When Rain Mode is activated, the fingerprint sensor will not respond. The lock automatically exits rain mode every 30 minutes and only reenters if rain or water is still detected. See below for ways to access during Rain Mode.

ACCESS DURING RAIN MODE

1. Unlock using the Lockly app
2. Unlock with physical key

RAIN MODE ACTIVATED fingerprint sensor disabled

NOTE: when the lock enters Rain Mode, it's recorded in the log history on the Lockly app. The app will also send a push notification to your mobile phone letting you know that the lock is in Rain Mode.

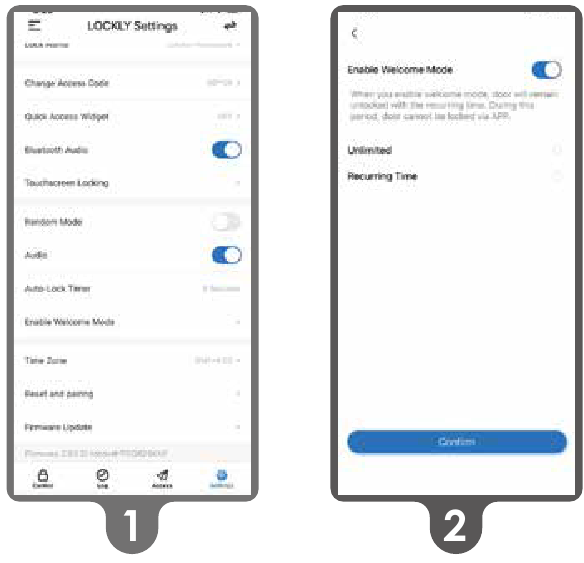

Welcome Mode

Welcome Mode temporarily disables auto locking, keeping the door open for a specified period of time eliminating the need for fingerprint key access.

Enable this feature through the Lockly App. Go to > Settings > Enable Welcome Mode, then slide button to enable and set the specific time you require your door unlocked.

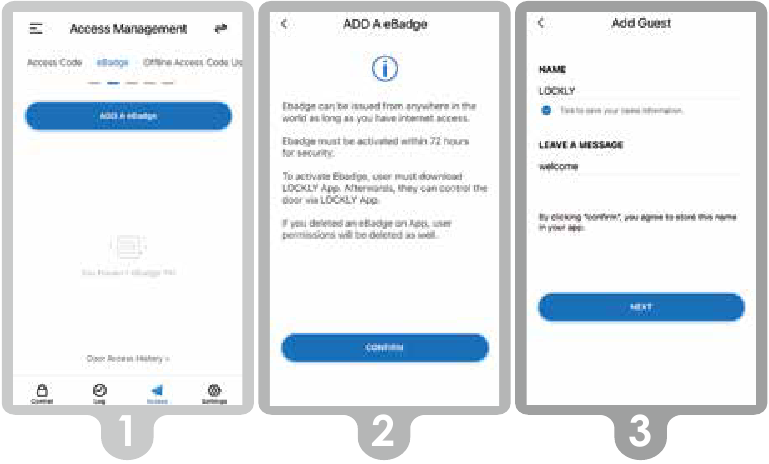

eBadge

An eBadge is a unique code that can be issued to another user giving them door access for a specific reoccurring time frame or a valid period of time. It requires them to download the free Lockly app and access can only be gained through the app (not the fingerprint reader).

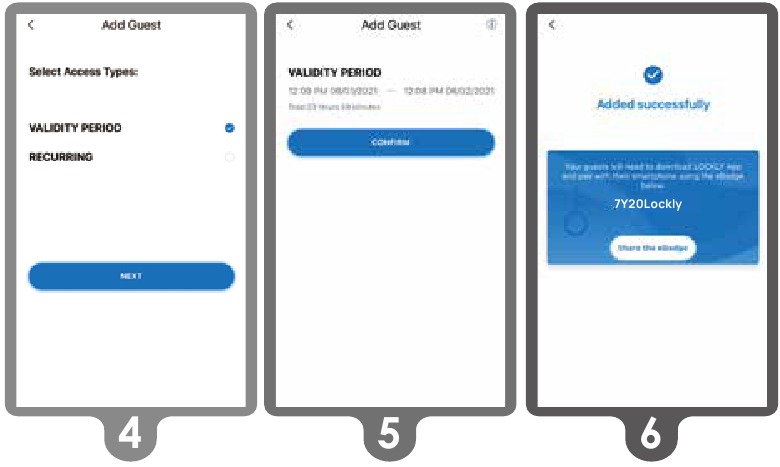

To set up and send a code in the Lockly app, go to > Access > eBadge (at top) > Add eBadge, then follow the on-screen prompts.

Confirm you want to add an eBadge.

Give the eBadge name you will recognize. Provide a custom message that will be sent to the user.

Select type of access: either a valid period of time or ongoing reoccurring (can be revoked at anytime).

Review and confirm access type.

Share unique eBadge code.

Important Notes

Troubleshooting
Please visit Lockly.com/help for troubleshooting and the most frequently asked questions and answers.

Auto Lock Feature
Your lock can be programmed to auto-lock between 5-300 seconds after the door opening. You can select the timing through the Lockly^® App.

9V Backup Access
When your Lockly is out of power, you can temporarily activate the fingerprint sensor by using a 9V battery against the bottom of the exterior side of the smart lock. Please see "Changing the Battery" Section for more info.

Physical Keys
Even though you have your fingerprints registered and eKey stored, it's always best practice to carry your physical keys with you at all times in case for any reason.

Re-Keying
Lockly uses a 6-pin (deadbolt editions) and 5-pin (latch editions) lock cylinders which can be re-keyed using market available re-keying kits from several brands. It is however, highly recommended to use a professional locksmith to perform this work.

To ensure you have access to newly added and latest features, please visit: www.Lockly.com/newfeatures

Cleaning

Keeping your Lockly clean insurers optimal performance. Follow the recommendations below.

DO

• Use a microfiber cloth to clean the fingerprint reader.
• Clean with slightly damp microfiber cloth to avoid scratches.
• When wet, allow to air dry or wipe dry with a soft microfiber cloth to avoid scratches.

DON'T

• Don't use abrasives, high Alkaline cleaners, or solvents to clean your lock.
• Don't apply cleaners in directly sunlight or during high temperatures.
• Don't leave cleaning detergent on the lock for extended periods of time. Make sure to wash off immediately.
• Don't use scrapers, squeegees, or razors.

Safety Precautions

Read and remind all users of the following safety precautions

Lockly Smart Locks do not have any user serviceable internal parts. Do not attempt to disassemble the lock. It may cause product damage and/or personal injury and will void any warranty.

Do not use any inappropriate tools that might cause damage or malfunction to your lock.

Always check and make sure your door is securely closed and locked when you leave to prevent unwanted entry.

Restrict access to the back battery panel and check your app settings regularly to ensure registered access and fingerprints profiles have not been altered or deleted without your knowledge.

Always dispose of used batteries according to your local requirements. NEVER BURN OR PUT BATTERIES IN AN INCINERATOR.

Unauthorized changes or modifications may void your product warranty. For technical assistance or issues using your Lockly Flex Touch, contact our customer care team at help@Lockly.com or visit Lockly.com/help

To ensure you have access to the most updated and newly added features of your Lockly smart lock, please visit: www.Lockly.com/newfeatures
