StarTech.com ST121HDBTU Quick Start Manual

Quick start guide

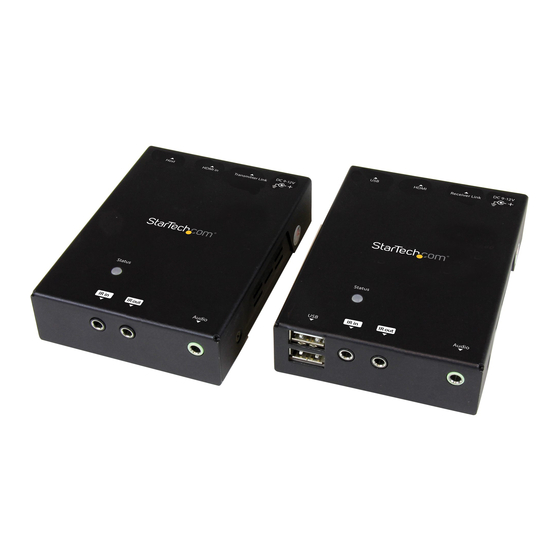

HDMI over CAT6 HDBaseT Extender with USB Hub and IR - 4K
ST121HDBTU
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
Packaging contents
• 1 x HDMI over CAT5 transmitter
• 1 x HDMI over CAT5 receiver
• 1 x IR blaster
• 1 x IR receiver
• 1 x USB cable
• 2 x foot pad sets
• 2 x power adapters
• 2 x mounting brackets
• 1 x quick start guide
System requirements
• HDMI enabled video source such as a computer or Blu-ray™ player
• HDMI enabled display device such as a high-definition television
or projector
• HDMI cabling for your video source and display
• AC electrical outlet for the transmitter and receiver
• CAT5e or CAT6 cabling from the extender to the receiver
• Up to four USB peripheral devices (optional)
Operating system requirements are subject to change. For the latest
requirements, please visit www.startech.com/ST121HDBTU.
For the latest information, technical specifications, and support for
this product, please visit www.startech.com/ST121HDBTU.

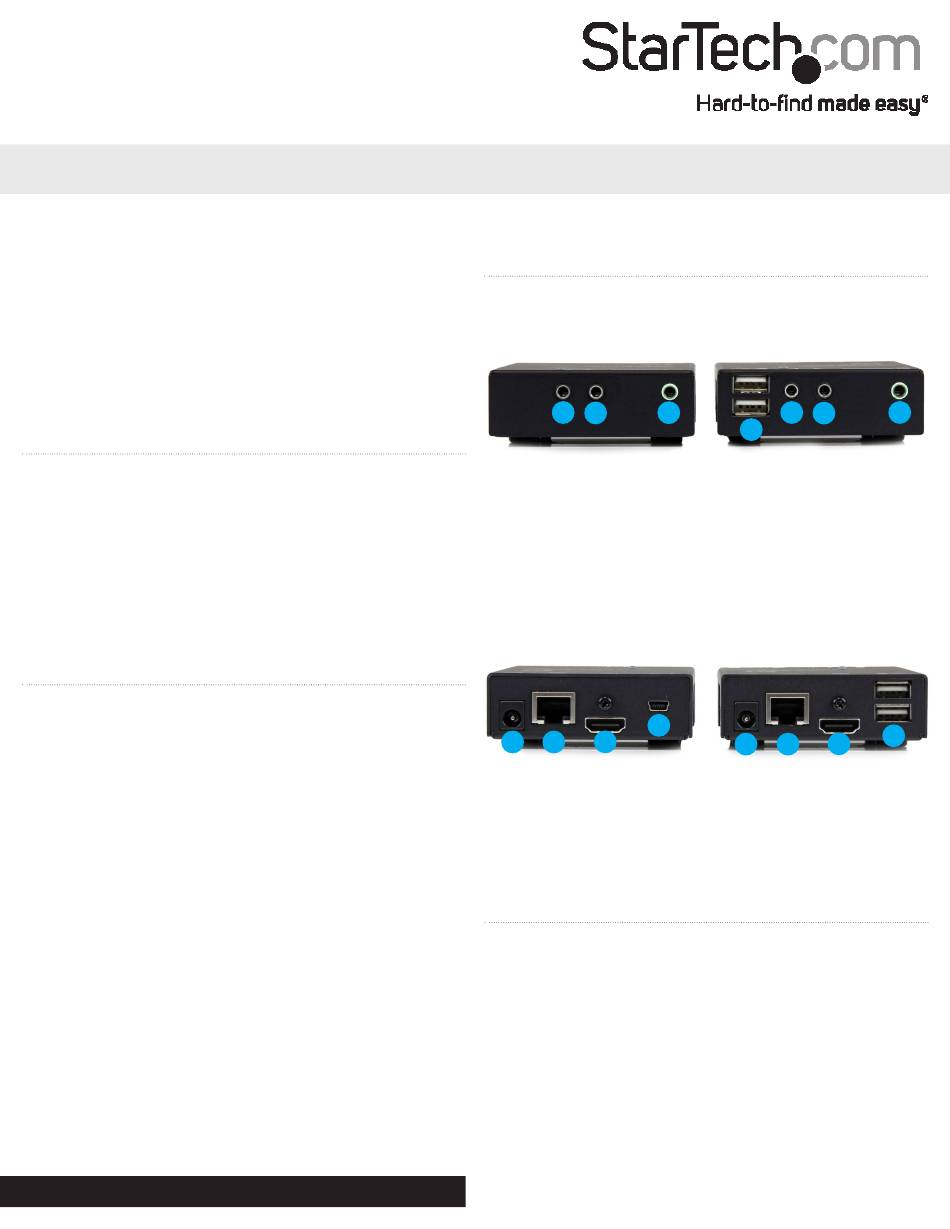

Product Overview
Front View
Transmitter unit
1 2
1. IR output
2. IR input
3. 3.5mm audio input
Back View
Transmitter unit
4
1 2 3
1. Power jack
2. Link port (RJ-45 connector)
3. HDMI input port
4. USB host port
Preparing your site
Note: Ensure the transmitter and receiver units are situated near AC
electrical outlets.
1. Determine where the local video source. (e.g. your computer or a
Blu-ray player) will be located and set up the transmitter unit near
that location.
2. Determine where the remote display will be located and place
the receiver unit near that location.
Receiver unit
2
3 3
1
1. USB peripheral ports
2. IR input
3. IR output
4. 3.5mm audio output
Receiver unit
2 3
1
1. Power jack
2. Link port (RJ-45 connector)
3. HDMI output port
4. USB peripheral ports
Manual Revision: 12/08/2020
