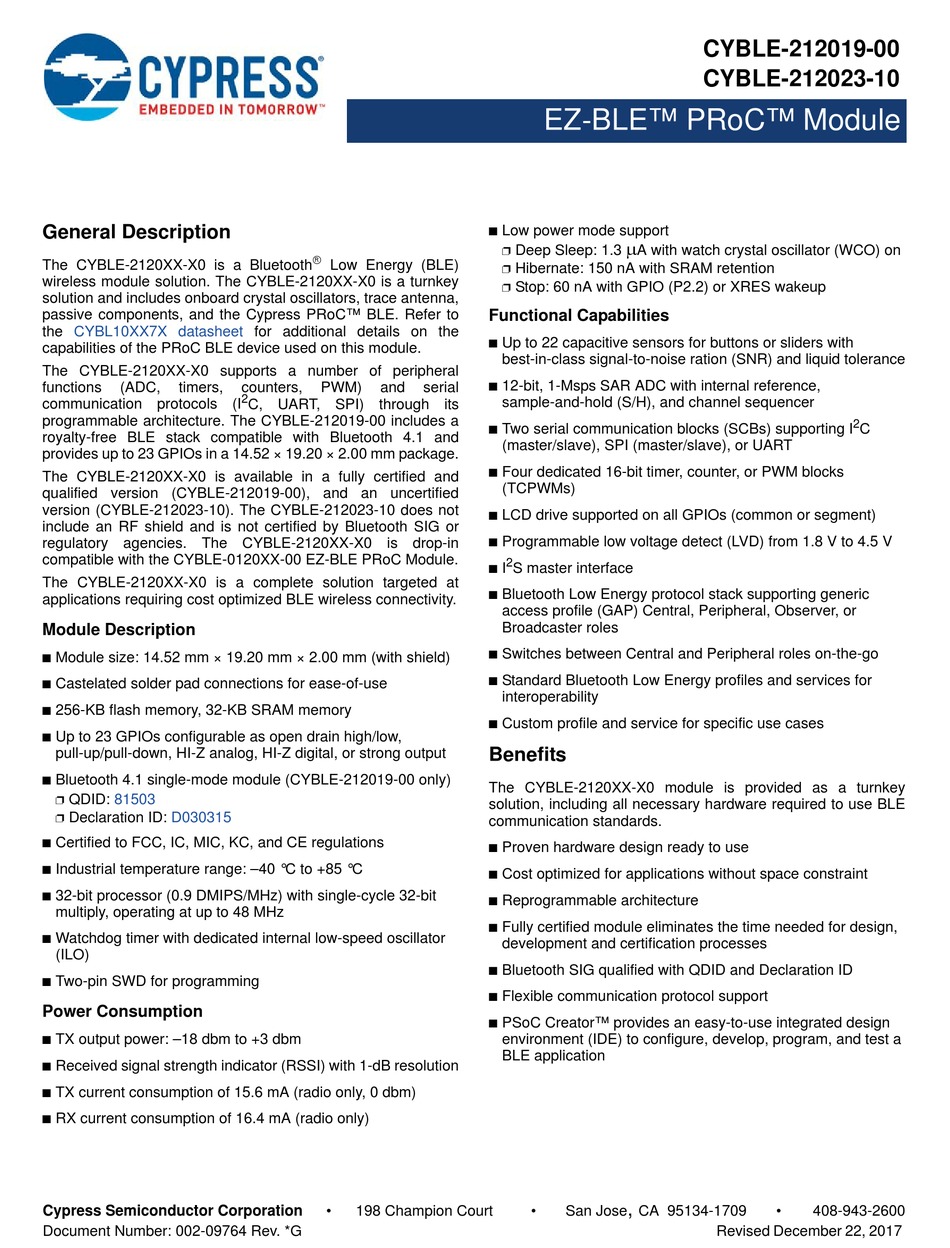

EZ-BLE™ PRoC™ Module
General Description
The CYBLE-2120XX-X0 is a Bluetooth
wireless module solution. The CYBLE-2120XX-X0 is a turnkey
solution and includes onboard crystal oscillators, trace antenna,
passive components, and the Cypress PRoC™ BLE. Refer to
the
CYBL10XX7X datasheet
capabilities of the PRoC BLE device used on this module.
The CYBLE-2120XX-X0 supports a number of peripheral
functions
(ADC,
timers,
communication protocols (I
programmable architecture. The CYBLE-212019-00 includes a
royalty-free BLE stack compatible with Bluetooth 4.1 and
provides up to 23 GPIOs in a 14.52 × 19.20 × 2.00 mm package.
The CYBLE-2120XX-X0 is available in a fully certified and
qualified version (CYBLE-212019-00), and an uncertified
version (CYBLE-212023-10). The CYBLE-212023-10 does not
include an RF shield and is not certified by Bluetooth SIG or
regulatory agencies. The CYBLE-2120XX-X0 is drop-in
compatible with the CYBLE-0120XX-00 EZ-BLE PRoC Module.
The CYBLE-2120XX-X0 is a complete solution targeted at
applications requiring cost optimized BLE wireless connectivity.
Module Description
Module size: 14.52 mm × 19.20 mm × 2.00 mm (with shield)
Castelated solder pad connections for ease-of-use
256-KB flash memory, 32-KB SRAM memory
Up to 23 GPIOs configurable as open drain high/low,
pull-up/pull-down, HI-Z analog, HI-Z digital, or strong output
Bluetooth 4.1 single-mode module (CYBLE-212019-00 only)
QDID:
81503
Declaration ID:
D030315
Certified to FCC, IC, MIC, KC, and CE regulations
Industrial temperature range: –40 °C to +85 °C
32-bit processor (0.9 DMIPS/MHz) with single-cycle 32-bit
multiply, operating at up to 48 MHz
Watchdog timer with dedicated internal low-speed oscillator
(ILO)
Two-pin SWD for programming
Power Consumption
TX output power: –18 dbm to +3 dbm
Received signal strength indicator (RSSI) with 1-dB resolution
TX current consumption of 15.6 mA (radio only, 0 dbm)
RX current consumption of 16.4 mA (radio only)
Cypress Semiconductor Corporation
Document Number: 002-09764 Rev. *G
Low Energy (BLE)
for additional details on the
counters,
PWM)
and
2
C, UART, SPI) through its
198 Champion Court
EZ-BLE™ PRoC™ Module
Low power mode support
Deep Sleep: 1.3
Hibernate: 150 nA with SRAM retention
Stop: 60 nA with GPIO (P2.2) or XRES wakeup
Functional Capabilities
Up to 22 capacitive sensors for buttons or sliders with
best-in-class signal-to-noise ration (SNR) and liquid tolerance
12-bit, 1-Msps SAR ADC with internal reference,
serial
sample-and-hold (S/H), and channel sequencer
Two serial communication blocks (SCBs) supporting I
(master/slave), SPI (master/slave), or UART
Four dedicated 16-bit timer, counter, or PWM blocks
(TCPWMs)
LCD drive supported on all GPIOs (common or segment)
Programmable low voltage detect (LVD) from 1.8 V to 4.5 V
2
I
S master interface
Bluetooth Low Energy protocol stack supporting generic
access profile (GAP) Central, Peripheral, Observer, or
Broadcaster roles
Switches between Central and Peripheral roles on-the-go
Standard Bluetooth Low Energy profiles and services for
interoperability
Custom profile and service for specific use cases
Benefits
The CYBLE-2120XX-X0 module is provided as a turnkey
solution, including all necessary hardware required to use BLE
communication standards.
Proven hardware design ready to use
Cost optimized for applications without space constraint
Reprogrammable architecture
Fully certified module eliminates the time needed for design,
development and certification processes
Bluetooth SIG qualified with QDID and Declaration ID
Flexible communication protocol support
PSoC Creator™ provides an easy-to-use integrated design
environment (IDE) to configure, develop, program, and test a
BLE application
San Jose
CYBLE-212019-00
CYBLE-212023-10
A with watch crystal oscillator (WCO) on
,
CA 95134-1709
Revised December 22, 2017
2
C
408-943-2600
