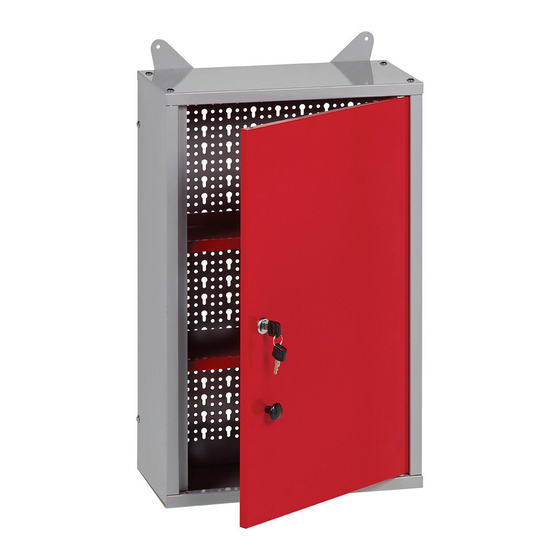

- Page 1 LOCKABLE WALL CABINET MODEL NO: CWC38 PART NO: 7642000 ASSEMBLY INSTRUCTIONS LS0814...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
- Page 3 CONTENTS Left Panel Right Panel Door Rear Panel Shelf Top/Bottom Panel Wall Hanging Brackets Fixings kit (not shown) Includes • 24 Machine Screws • 24 Bolts • 24 Washers • Door Knob • Lock Assembly and Key • 2 x 45mm screws and rawl plugs Parts &...
- Page 4 ASSEMBLY 1. Place the left panel against the 2. Repeat with the right panel and rear panel and use the fixings the bottom panels. (machine screws, bolts and washers) supplied to secure. 3. Set the door in place as shown 4.
- Page 5 5. Place the key in the lock and 9. Insert the lock barrel with the turn it so that the window on the green window at the top front of the lock turns green. through the door and secure using the locknut as shown. 6.
- Page 6 13. If you are fitting the shelves, 14. If you are using tool hooks, place the shelves into position place the tool hooks onto the and secure using the fixings rear panel . supplied. 15. A coimbination of shelves and tools is also possible.
- Page 7 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
