Summary of Contents for Clarke CMPW1

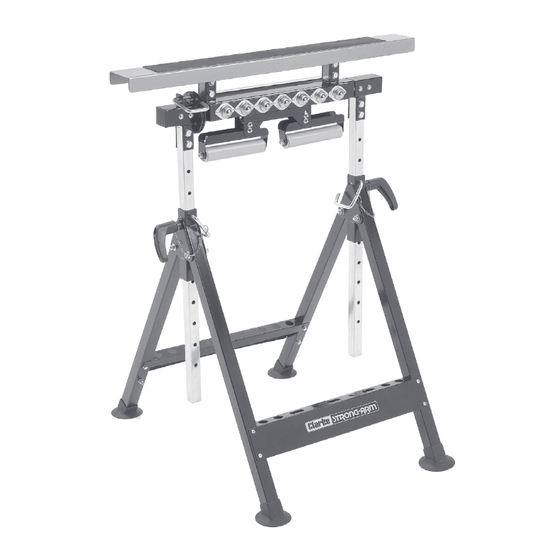

- Page 1 MULTI FUNCTION WORKBENCH MODEL No: CMPW1 Part No: 6500124 ASSEMBLY INSTRUCTIONS LS1009...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Multi Function Workbench Before using the workbench, please read this instruction manual thoroughly and carefully follow all directions given. This is for your own safety and for that of others around you, and will also help you achieve long and trouble free service from your workbench.
- Page 3 PARTS LIST...
- Page 4 ASSEMBLY 1. Open both sets of legs (5) and fix the cross-member (2) into position using 4 screws (9) 4 washers (10) and 4 nuts (11) supplied. 2. Fit the second cross member (2) to the rear of the legs as shown. 3.
- Page 5 ASSEMBLY 5. Pull the roller release pin and rotate the roller head until it is in the position shown. 6. Fit the trestle (3) onto the roller head and secure using 4 bolts (6) 8 washers (7) and 4 nuts (8) supplied.
- Page 6 ASSEMBLY 8. Screw in the handles as shown. 9. Insert the securing pin as shown. You may need to raise the roller assembly slightly. 10. Rotate the handle clockwise to lock the roller into position. ADJUSTMENTS ADJUSTING THE HEIGHT 1. Rotate the handle anticlockwise until it is loose. 2.
- Page 7 ROLLER ADJUSTMENT There are 4 configurations that you can use this multi function workbench. 1. Pull the roller release pin and rotate the roller head until it is in the required position. Ball bearings V style rollers Trestle Roller 2. If required, you can lock the roller into one position using the bolt (16), 2 washers (15) and nut (17) supplied.
