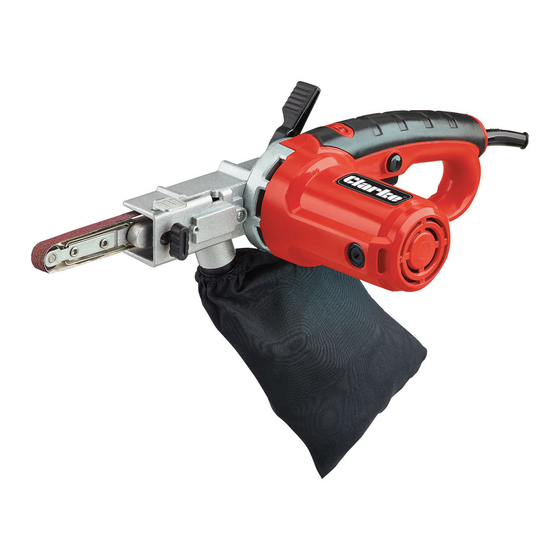

- Page 1 ELECTRIC POWER FILE MODEL NO: CPF13 PART NO: 6462062 OPERATION & MAINTENANCE INSTRUCTIONS LS0212...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Electric Power File. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Power Tool Safety Warnings
POWER TOOL SAFETY WARNINGS WORK AREA 1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents. 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. -
Page 4: Additional Safety Warnings For Sanders
POWER TOOL USE AND CARE 1. Do not force the power tool. Use the correct accessories for your application. The correct power tool will do the job better and safer at the rate which it was designed for. 2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. -
Page 5: Explanation Of Symbols & Pictograms
EXPLANATION OF SYMBOLS & PICTOGRAMS Read Instruction Manual Before Use. Wear safety glasses or goggles when using the tool. Wear ear protection when using this tool. Always wear gloves when working with metal workpieces. Wear a dust mask. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 7: Part Identification
CARTON CONTENTS The following items should be supplied in the carton. If any parts are missing or damaged, please contact the Clarke dealer where you purchased the tool. • 1 x Electric Power File • 5 x 13mm x 457mm 80 Grit Sanding Belts. -
Page 8: Fitting And Removing Sanding Belts
ASSEMBLY WARNING: BEFORE ASSEMBLY, MAKE SURE THAT THE TOOL IS SWITCHED OFF AND UNPLUGGED. FITTING AND REMOVING SANDING BELTS 1. Move the belt tensioning lever to the front position. 2. Place the sanding belt over the front pulley and the rear pulley, sliding it through the slot in the housing •... -
Page 9: Fitting And Removing The Dust Bag
ADJUSTING THE SANDING BELT TRACKING 1. Switch the tool on. 2. Turn the belt tracking knob as required until the sanding belt runs straight along the length of the arm. FITTING AND REMOVING THE DUST BAG WARNING: ALWAYS REMOVE THE DUSTBAG WHEN USING THE TOOL ON METAL WORKPIECES. -
Page 10: Intended Use
INTENDED USE Your power file has been designed for sanding wood, metal, plastics and painted surfaces only. SWITCHING ON AND OFF To switch the tool on, press the on/off trigger switch. To switch the tool off, release the on/ off trigger switch. FOR CONTINUOUS OPERATION: 1. -
Page 11: Adjusting The Angle
On other surfaces, start with a medium grit. In both cases, gradually change to a fine grit for a smooth finish. ACCESSORIES The following belts are available from your Clarke dealer. DESCRIPTION PART NUMBER Pack of 5 120 Grit (fine) belts... -
Page 12: Maintenance
MAINTENANCE WARNING: BEFORE PERFORMING ANY MAINTENANCE, SWITCH OFF AND UNPLUG THE TOOL. • Your tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. •... -
Page 13: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Parts List
PARTS LIST Bearing HTCPF1337 Handle HTCPF1301 Adjustor Body HTCPF1338 Screw HTCPF1302 Compression Spring HTCPF1339 Speed Controller HTCPF1303 Dust Proof Ring HTCPF1340 Stator HTCPF1304 Support Bar HTCPF1341 Screw HTCPF1305 Sanding Belt 13 X 457 HTCPF1342 Housing HTCPF1306 HTCPF1343 Cable Clamp HTCPF1307 Side Plate HTCPF1344 Inductance... -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 16 Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
