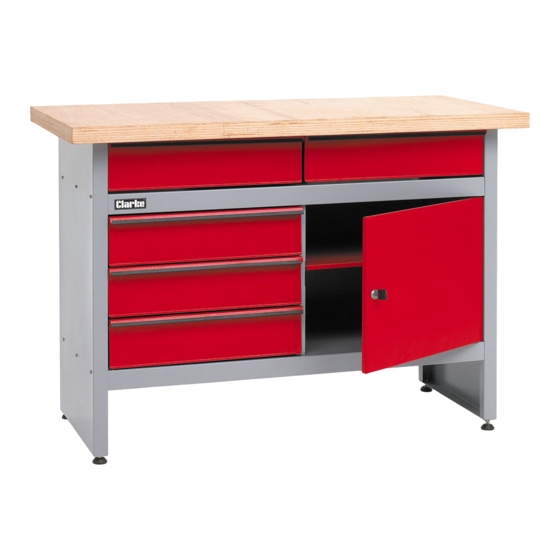

Clarke CWB1205P Assembly Instructions

8
4
20
1
10
5
9

Contents

1. Left Leg x 1
2. Right Leg x 1
3. Door x 1
4. Upper Panel x 1
5. Bottom Panel x 1
6. Cross Panel x 1
7. Back Panel x 1
8. Bench Top x 1
9. Drawer Runner (Type 'B') x 3
10. Drawer Runner (Type 'C') x 3
11. Foot x 4
12. Screw M8x40 x 4
13. Nut M8 x 4
14. Drawer Front x 5
15. Drawer Bottom x 5
16. Drawer Side x 10
CWB1205P
Part Number: 4501505
Assembly Instructions
6
19
22
21
7
2
, ,
11 12 13
3
16
14
18. Drawer Back x 5
19. Shelf x 1
20. Drawer Runner (Type 'A') L/H x 2
21. Drawer Runner (Type 'A') R/H x 2
22. Door Lock x 1
Polythene bag containing nuts, screws and
washers etc.
'A' 'B' 'C'
18
15
16
0510
