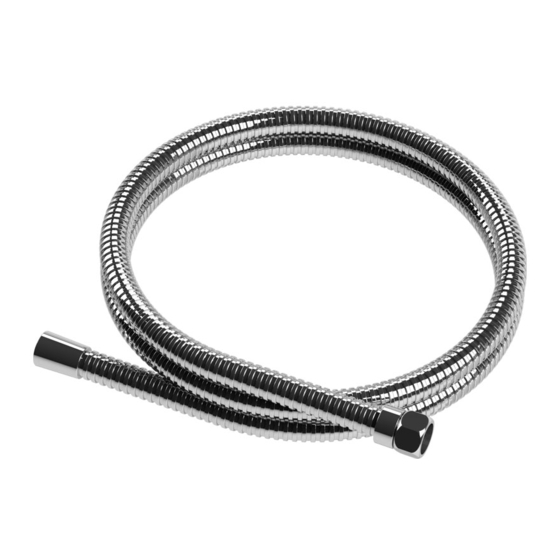

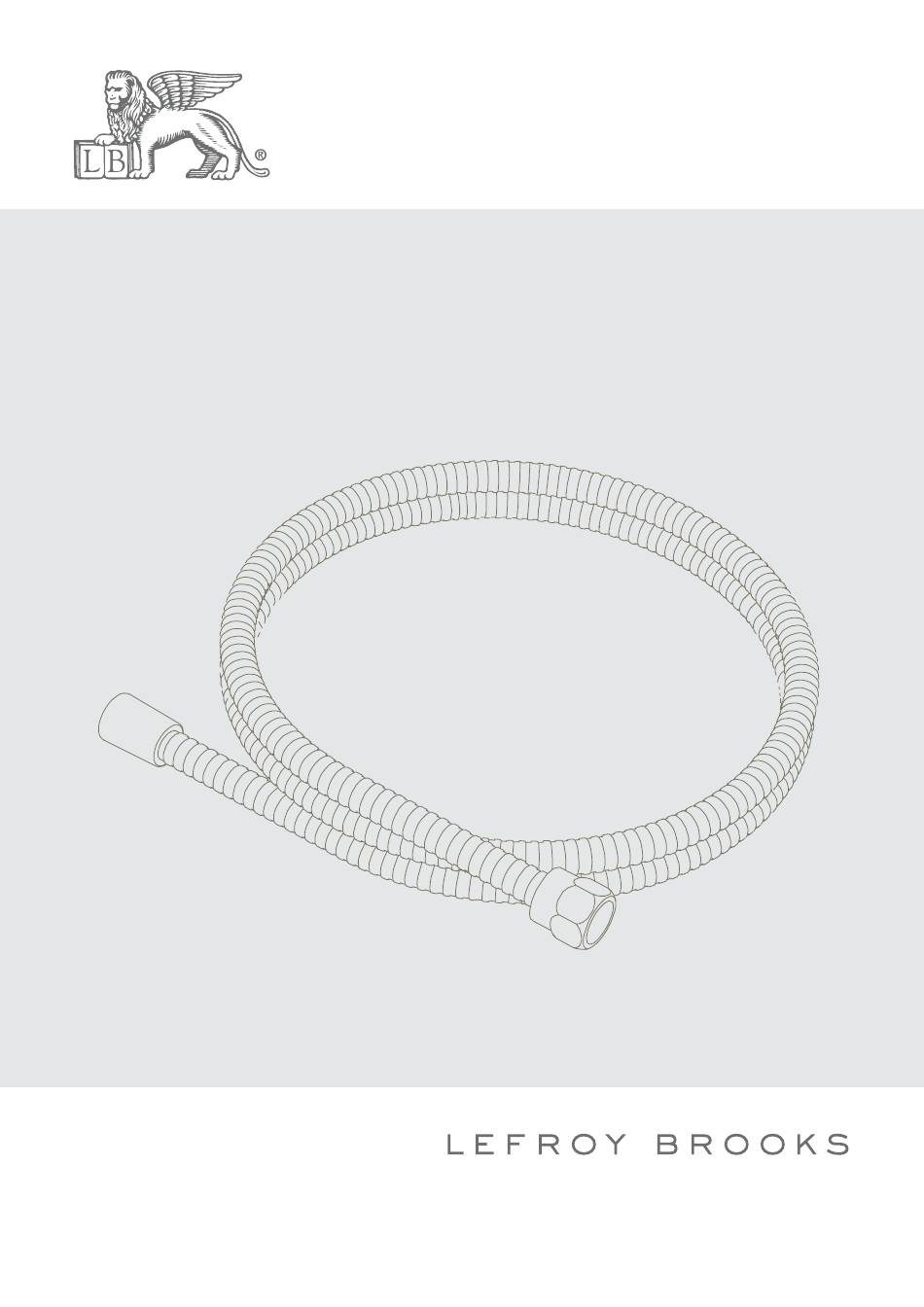

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS Y1-1069 WIDE BORE 13MM DOUBLE INTERLOCK SHOWER HOSE...
- Page 2 Contents Dimensions Warning Information Fault Finder Safety Tips, Care and Maintenance Guarantee...
- Page 3 Dimensions in Inches (& Millimetres) Ø 7/8" (Ø23mm) G1/2 G1/2 1 1/16" (27.7mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
- Page 4 Warning (IMPORTANT INFORMATION) WARNING: Please ensure that the wall outlet of any installation with a hand shower is placed high enough on the wall, so that when fully assembled (outlet, hose & hand shower) it cannot reach the floor. This will protect both the hand shower and your decor from accidental damage should the hand shower be droppped while in use.
- Page 5 Fault Finder Fault Cause Rectification Leaks around the connection Gasket is misfitted or damaged. Check for gasket placement. between showerhead and shower hose.
- Page 6 Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation.
- Page 7 Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges.
- Page 8 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
