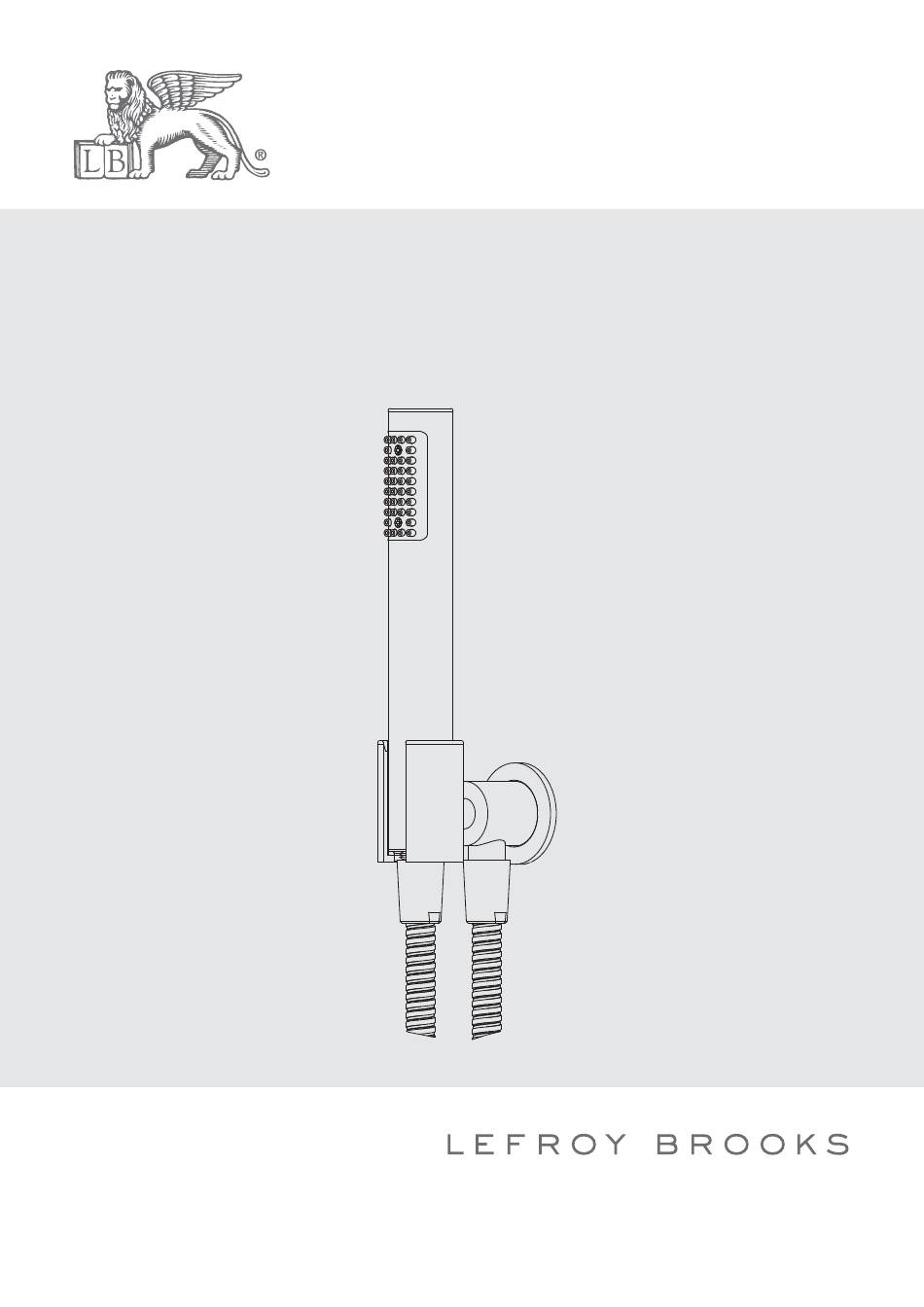

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS Y1-1071 CYLINDRICAL HAND SHOWER WITH WALL BRACKET, HOSE (1.5M) & OUTLET...
-
Page 2: Table Of Contents
Contents Dimensions Warning Information Instalation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee... -
Page 3: Dimensions
Dimensions in Inches (& Millimetres) 1 1/4" (32mm) 3 1/2" (89.2mm) 2 3/4" (70mm) 9/16" (13.5mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process. -
Page 4: Warning Information
Warning (IMPORTANT INFORMATION) WARNING: Please ensure that the wall outlet of any installation with a hand shower is placed high enough on the wall, so that when fully assembled (outlet, hose & hand shower) it cannot reach the floor. This will protect both the hand shower and your decor from accidental damage should the hand shower be droppped while in use. -
Page 5: Instalation Procedure
Installation Procedure Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. 13.5mm Apply pipe tape on the end threads of the connecting pipe. Please note that the length of the connecting pipe protruded out from the wall surface should be kept as 13.5mm. - Page 6 Installation Procedure Steps 3-4 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Tighten the shower hose to the outlet. Tighten the other end of the shower hose to the handshower.
- Page 7 Installation Procedure Step 5 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Finish. This product requires the installation of certified atmospheric vacuum breaker (AVB) installed in-between the shut off valve and hose inlet. The AVB should be installed so it is vent ports is pointing in other than the upward direction.
-
Page 8: Parts List
Parts List Exploded view Handshower (S2111104) Wall outlet & shower cradle (558983) Shower hose (1.5M) (105709) Teflon tape (203000) -
Page 9: Fault Finder
Fault Finder Fault Cause Rectification Too low flow. Showerheads clogged. Remove and clean showerheads. May need to replace if clogged. Leaks around the connection Gasket is misfitted or damaged. Check for gasket placement. between showerhead and shower hose. -
Page 10: Safety Tips, Care And Maintenance
Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 11: Guarantee
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 12 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
