Bernini Palermo Owner's Manual

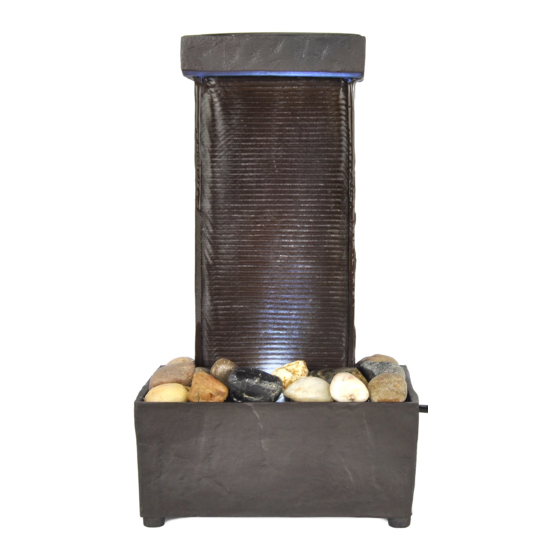

Palermo Fountain Owners Manual
Palermo is the capital of the Italian island of Sicily that is know for its grand Opera performances - this little piece of Italian elegance will add festivity to any space.
PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE ATTEMPTING TO ASSEMBLE YOUR NEW FOUNTAIN
CONTENTS:
Water
Tube
LED Lights
Water
Reservoir
Power Cord

ASSEMBLY:

Figure 1
Figure 6
Figure 8
Palermo is the capital of the Italian island of Sicily that is know for its grand Opera performances - this little piece of Italian elegance will add festivity to any space.
Please note, images of parts are not to scale with one another.
Diagram 1:
Fountain Topper
Fountain Topper
Decorative Rocks
Fountain Base
Water Pump
Fountain Base
Figure 2
1. Prior to assembly take time to find a suitable location for your fountain and make sure to place
the Base of your Fountain on a flat, firm surface (Figure 1).
2. Set the Fountain Topper on the edge of the Fountain Base (Figure 2).
3. Insert the Water pump/LED Light combo into the Fountain Base. Insert the LED Light into
the circular hole in the Fountain Topper base (Figure 3 & 4 Black Arrows). Insert the outlet of the
Water Pump into the Water Tube (Figure 3 & 4 White Arrows).
4. Set the Fountain Topper onto the Fountain Base (Figure 5). Route the Electrical Power Cord
through the notch in the back of the Fountain Topper (Figure 6 Black Arrow).
5. Place the Decorative Rocks around the base of the Fountain Topper (Figure 7).
6. Fill the fountain reservoir with water (Figure 7). Make sure water pump is completely sub-
merged in water. Due to evaporation check and fill water level periodically.
Figure 7
7. Plug in your fountain and enjoy (Figure 8).
8. If needed, you can adjust the water flow by locating the Water Flow Adjustment Lever on the
Water Pump side cover. Move the lever toward the + (plus) sign to increase water flow or – (mi-
nus) sign to decrease water flow (Figure 9 Arrow).

OPERATION:

To turn on your fountain plug in your fountain: Check for water flowing out of the Fountain
+ +
Topper and LED light is on. If water is not flowing refer Troubleshooting Section/Priming The
- -
Water Pump of this manual.
Water Level: Due to evaporation, clean water must be added periodically. Be sure to maintain
the water level in the fountain base so that the water pump is completely submerged in water
at all times. If not, damage may occur and the limited warranty will be void.
Figure 9
Decorative Rocks
Water Pump/LED
Light Combo
Figure 3 Figure 4

Pre Assembly Preparation:

1. Note: The Palermo Fountain is designed
for easy assembly but please use caution
when assembling fountain.
2. Prior to assembly take time to find a
suitable location for your fountain and make
sure to place the Base of your Fountain on a
flat, firm surface.
3. Use Diagram 1 for reference on part
names, connecting and how all the individual
parts fit together.
4. Use all electrical safety precautions.
Please make sure that the electrical plug is
dry and clean before inserting into the outlet.
Always unplug before filling with water or
servicing your fountain.
5. Due to evaporation check and fill water
level periodically.
Figure 5
|1
