Firmware: v.1.00 or higher
•
Input type: 4-20 mA
•
Supply from current loop 4-20 mA
•
Read the user's manual carefully before starting to use the unit or software.
Producer reserves the right to implement changes without prior notice.
2013.02.28
User manual

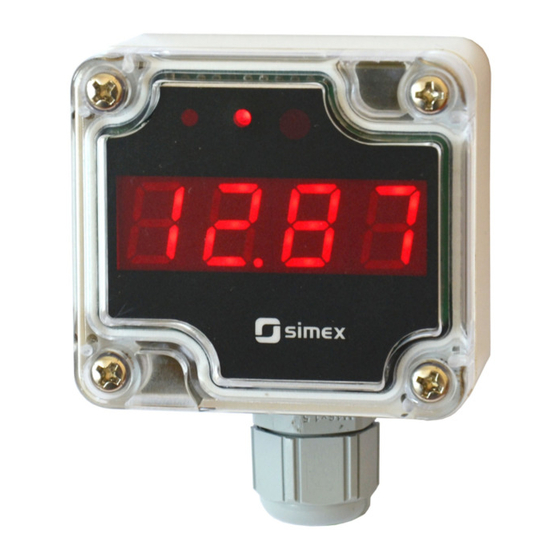

METER
SWE-N55L
Assisting the automation
industry since 1986
SWE-N55L_INSSXEN_v.1.02.000
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simex SWE-N55L
Summary of Contents for Simex SWE-N55L

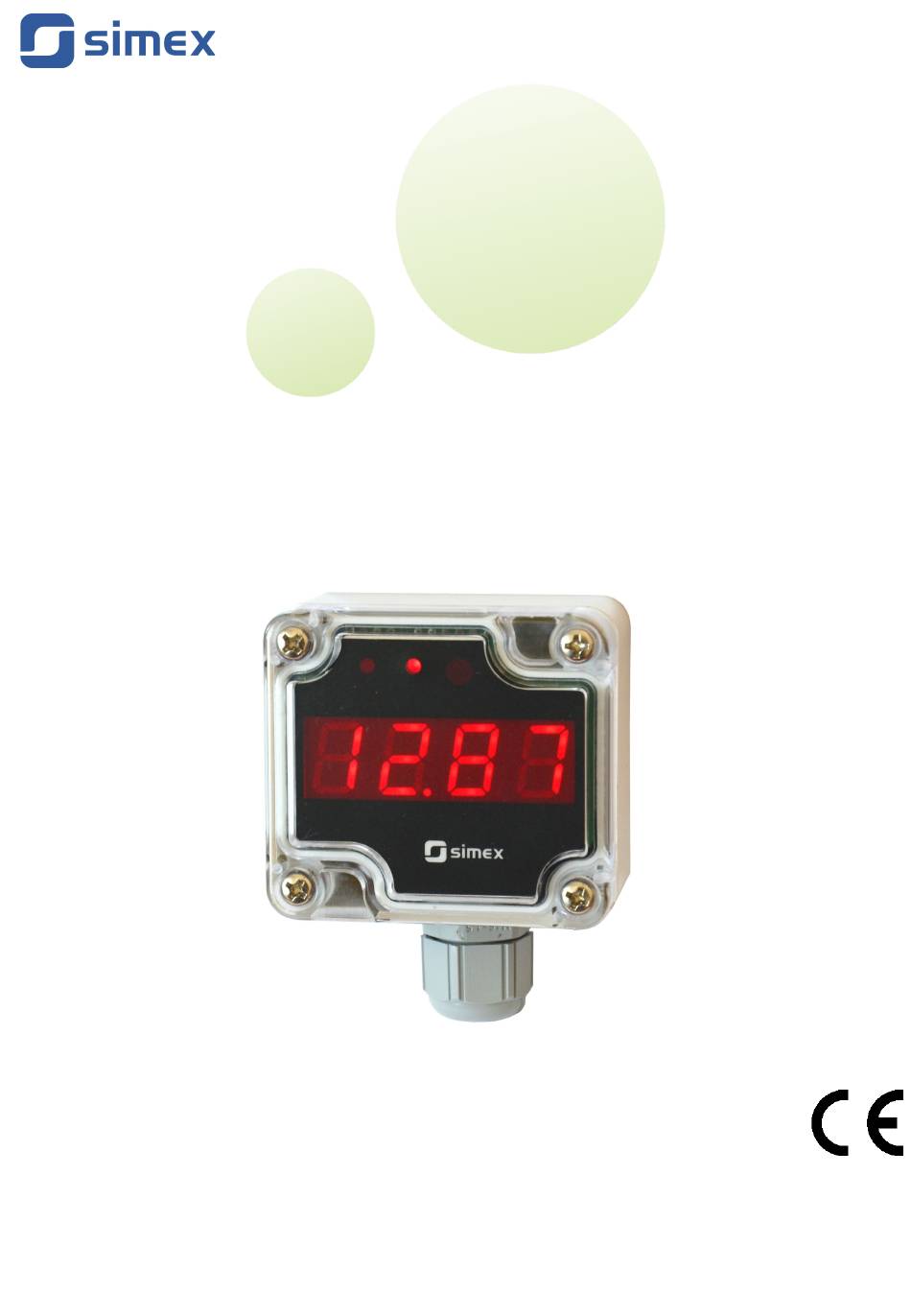

- Page 1 Assisting the automation industry since 1986 User manual METER SWE-N55L Firmware: v.1.00 or higher • Input type: 4-20 mA • Supply from current loop 4-20 mA • Read the user's manual carefully before starting to use the unit or software.
-
Page 2: Table Of Contents
User manual - METER SWE-N55L CONTENTS 1. BASIC REQUIREMENTS AND USER SAFETY..................3 2. GENERAL CHARACTERISTICS........................4 3. TECHNICAL DATA............................4 4. DEVICE INSTALLATION..........................5 4.1. UNPACKING............................5 4.2. ASSEMBLY............................5 4.3. CONNECTION METHOD........................6 4.4. MAINTENANCE..........................8 5. DESCRIPTION OF THE FRONT PANEL AND IR REMOTE CONTROLLER PUSH-BUTTONS.....9... -
Page 3: Basic Requirements And User Safety
User manual - METER SWE-N55L 1. BASIC REQUIREMENTS AND USER SAFETY - The manufacturer is not responsible for any damages caused by inappropriate installation, not maintaining the proper environmental conditions and using the unit contrary to its assignment. - Installation should be conducted by qualified personnel. During installation all available safety requirements should be considered. -
Page 4: General Characteristics
Optionally SWE-N55L can be equipped with bistable relay output. The device can be configured via IR remote controller. IR remote controller is not a part of the SWE-N55L and must be ordered separately. 3. TECHNICAL DATA Minimal supply current 3.5 mA, device supplied from current loop... -
Page 5: Device Installation
User manual - METER SWE-N55L Connection cable without relay 2 core cable (power supply) with relay 4 or 5 core cable (2 power supply wires + 2 or 3 wires for relay) Screws tightening max. torque 0,5 Nm Max. connection leads diameter... -
Page 6: Connection Method
User manual - METER SWE-N55L 34 mm Figure 4.1. Distances between pinholes 4.3. CONNECTION METHOD Caution - Installation should be conducted by qualified personnel. During installation all available safety requirements should be considered. The fitter is responsible for executing the installation according to this manual, local safety and EMC regulations. - Page 7 User manual - METER SWE-N55L Connections of measurement signal and relay output should be made by screw connectors mounted inside the housing. 5-6 mm Figure 4.2. Method of cable insulation replacing and cable terminals 4-20mA Figure 4.3. Terminals description 24V DC...
-
Page 8: Maintenance
User manual - METER SWE-N55L 24V DC Figure 4.5. Connection of 3-wire current converters 4.4. MAINTENANCE The unit does not have any internal replaceable or adjustable components available to the user. Pay attention to the ambient temperature in the room where the unit is operating. -
Page 9: Description Of The Front Panel And Ir Remote Controller Push-Buttons
User manual - METER SWE-N55L 5. DESCRIPTION OF THE FRONT PANEL AND IR REMOTE CONTROLLER PUSH-BUTTONS R LED indicates if the infrared relay is in ON state infrared receiver transmitter MENU ENTER programming pushbuttons IR LED confirms that the infrared receiver is on... -
Page 10: Principle Of Operation
User manual - METER SWE-N55L 6. PRINCIPLE OF OPERATION Device is supplied from current loop. For proper work of device it is required to guarantee that signal value of current loop is greater than 3.5 mA. If signal value is too low then running decimal point is displayed. -
Page 11: Detection Of The Peak Values
User manual - METER SWE-N55L 6.2. DETECTION OF THE PEAK VALUES The SWE-N55L controller is equipped with peaks detection function. It can detect a peaks of the input signal and display their values. Presets connected with this function are placed in “HOLd” menu (see description of “HOLd” menu). The detection of the peak can be done if the measured signal raises and drops of value at least equal to parameter “PEA”... - Page 12 User manual - METER SWE-N55L state of relay/LED “SEtP” parameter zone B zone A measure “HYSt” parameter Figure 6.3. One threshold control of the relay/LED outputs state of relay/LED “SEtP” or “SEt2” parameter zone B zone A zone B measure “HYSt”...
-
Page 13: One Threshold Mode
User manual - METER SWE-N55L 6.3.1. One threshold mode Figure 6.5 presents the principle of relay output operation for one threshold mode and an example values of other parameters. measured “SEtP” parameter displayed value signal (expected signal value) zone A “HYSt”... -
Page 14: Two Thresholds Mode
User manual - METER SWE-N55L 6.3.2. Two thresholds mode displayed value measure zone B d signal “HYSt” parameter “SEtP” or “SEt2” zone A parameter “HYSt” parameter zone B time relay state (modE = in) closed open time relay state (modE = out) -
Page 15: Programming Menu
User manual - METER SWE-N55L The device can be configured via IR remote controller but it must be supplied at least by 10mA current and the temperature must be at least 0°C in order to do that. 7.1. PROGRAMMING MENU To enter main menu (being in the measurement mode) operator must to press and hold at least 2 sec. -
Page 16: Switch Parameters ("List" Type)
User manual - METER SWE-N55L 7.2.2. Switch parameters (“LIST” type) Switch parameters can be described as a sets of values (a lists) out of which only one of the options available on the list can be selected for the given parameter. Options of switching parameter are selected using keys. - Page 17 User manual - METER SWE-N55L “SEt2” - second threshold of the relay (range -999 ÷ 9999). Negative values can be input by selecting a “-” sign on first digit ( to change value use [^] and [v] buttons). This threshold is accessible when “ modE” parameter is set to “in” or “out” value.
-
Page 18: Inpt" Menu
User manual - METER SWE-N55L “AL” - this parameter defines the relay reaction when some critical situations occurs: “noCH” - relay do not change his state, “on” - relay will be turned ON , “oFF” - relay will be turned OFF. - Page 19 User manual - METER SWE-N55L If user defined characteristic is selected (parameter “CHAr” = “USEr”) the parameters “Lo C” and “Hi C” are not available for modification, due to their values are calculated from defined characteristic. “AddP” - this menu allow user to add single point to the user defined characteristic.
-
Page 20: Hold" Menu
User manual - METER SWE-N55L “Lo r” = 10,0% (0.4 mA) “Hi r” = 5,0 % (1 mA) nominal measurement range (4-20mA) [mA] permissible measurement range measurement result is displayed display display regardless on nominal range exceeding message “-Lo-” message “-Hi-”... -
Page 21: Scod" Parameter
User manual - METER SWE-N55L “H r1” - relay/LED output R operation mode: “rEAL” - relay/LED operates depend on the current value, “HOLd” - relay/LED operates depend on the peak (drop) value. 7.3.4. “Scod” parameter This parameter defines user password (4-digits number). If this parameter is set at value “0000”, user password is turned off. -
Page 22: Menu Structure
User manual - METER SWE-N55L 7.4. MENU STRUCTURE Measurement mode Press and hold at least 2 seconds MENU MENU 4-digit user password entering (if it is different from „0000”) 0 _ _ _ ENTER ENTER ENTER Parameter MENU SEtP edition... -
Page 23: Over-Current Protection
User manual - METER SWE-N55L 8. OVER-CURRENT PROTECTION The current input of the device is equipped with over-current protection circuit. This circuit protects the standard resistor to damage. Maximum input current is set to about 50 mA. When temperature of the standard resistor falls, the protection circuit will turn off himself automatically, and the device will measure the input current again. -
Page 24: Linear Characteristic
User manual - METER SWE-N55L 9.1.1. Linear characteristic The normalized result is converted by fixed coefficients determined by “Lo C” and “Hi C” parameters (when the normalized results is equal 0, then value “Lo C” is displayed, and when the normalized results is equal 1, then value “Hi C” is displayed). Expression presented below... -
Page 25: Square Root Characteristic
User manual - METER SWE-N55L 9.1.3. Square root characteristic The normalized result is rooted and further conversion is done as for linear characteristic. Conversion is made accordingly with the expression: × "Hi C" −"Lo C" "Lo C" , where W means the displayed value. -
Page 26: Examples Of Calculations
User manual - METER SWE-N55L Normalized measurement I (for 4-20 mA range) 0,35 5-elements characteristic X (PH) = “70.0.” Y (PH) X = “35.0.” Y (PL) X (PL) = “50.0.” X = “20.0.” Prąd wejściowy [mA] X = “90.0.” X = “100.0.”... - Page 27 User manual - METER SWE-N55L a) I =10 mA and I = 0,375 Accordingly to expression on page 24 for linear characteristic: 0,375 × [1200 -(- 300)] ≅ 562 and next, the “Lo C” value is added to the result , so the displayed value: W ≅...
- Page 28 User manual - METER SWE-N55L Example 6: The user defined characteristic Let the user selected the 10 segment characteristic. To do this it is necessary to enter X and Y coordinates of 11 points (see Menu “inPt”). The calculations will be done for three different input currents from example 2, so in calculations some of the segments will be used only.
-
Page 29: Default And User's Settings List
User manual - METER SWE-N55L 10. DEFAULT AND USER'S SETTINGS LIST Desc. Parameter Description Default value User's value page Parameters of relay R1 operation (“rEL1” menu) SEtP Relay R1 threshold 20.0 SEt2 Relay R1 second threshold 30.0 HYSt Hysteresis of relay R1... - Page 30 User manual - METER SWE-N55L...
- Page 31 User manual - METER SWE-N55L...
- Page 32 SIMEX Sp. z o.o. ul. Wielopole 7 80-556 Gdańsk Poland tel.: (+48 58) 762-07-77 fax: (+48 58) 762-07-70 http://www.simex.pl e-mail: info@simex.pl...
