Firmware: v.5.18 or higher
•
Input type: Pt100/500/1000
•
Low-cost, no keyboard
•
Read the user's manual carefully before starting to use the unit or software.
Producer reserves the right to implement changes without prior notice.
2017.06.05
Microlectra bv.
User manual
INDICATOR

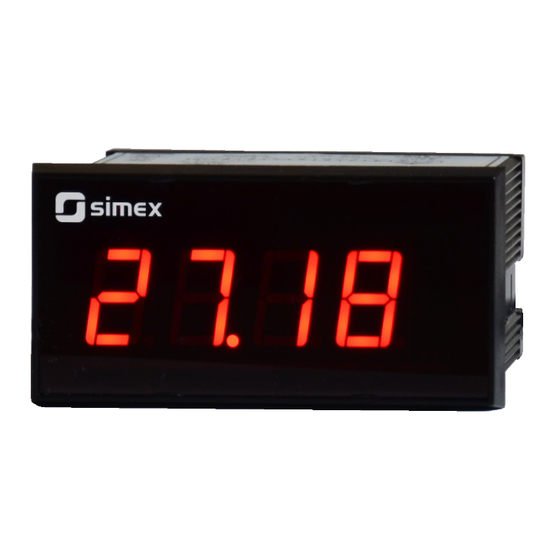

SWE-73-T
Augustapolder 12. 2992 SR Barendrecht. The Netherlands.
www.microlectra.nl
Microlectra bv.
info@microlectra.nl
Assisting the automation
industry since 1986
SWE-73-T_INSSXEN_v.2.07.001
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simex SWE-73-T
Summary of Contents for Simex SWE-73-T
- Page 1 Assisting the automation Microlectra bv. industry since 1986 User manual INDICATOR SWE-73-T Firmware: v.5.18 or higher • Input type: Pt100/500/1000 • Low-cost, no keyboard • Read the user's manual carefully before starting to use the unit or software. Producer reserves the right to implement changes without prior notice.
-
Page 2: Table Of Contents
User manual for - INDICATOR SWE-73-T CONTENTS 1. BASIC REQUIREMENTS AND USER SAFETY..................3 2. GENERAL CHARACTERISTICS........................4 3. TECHNICAL DATA............................4 4. DEVICE INSTALLATION..........................5 4.1. UNPACKING............................6 4.2. ASSEMBLY............................6 4.3. CONNECTION METHOD........................8 4.4. MAINTENANCE..........................11 5. DESCRIPTION OF IR REMOTE CONTROLLER AND CONTROL SOFTWARE PUSH-BUTTONS..11... -
Page 3: Basic Requirements And User Safety
User manual for - INDICATOR SWE-73-T Explanation of symbols used in the manual: - This symbol denotes especially important guidelines concerning the installation and operation of the device. Not complying with the guidelines denoted by this symbol may cause an accident, damage or equipment destruction. -
Page 4: General Characteristics
Modbus RTU protocol. Easy assembling, small dimensions, precision and reliability are the basic trumps of SWE-73- T indicators. IR remote controller is not a part of the SWE-73-T and must be ordered separately. 3. TECHNICAL DATA Power supply voltage 230V AC ±10%;... -
Page 5: Device Installation
User manual for - INDICATOR SWE-73-T Accepted prolonged input overload: 20% Communication interface RS 485, 8N1 and 8N2, Modbus RTU, not separated Baud rate 1200 bit/s ÷ 115200 bit/s Display LED, 4 digit, 13mm height, red Data memory non-volatile memory, EEPROM type... -
Page 6: Unpacking
User manual for - INDICATOR SWE-73-T - Read the basic safety requirements on page 3 prior to starting the installation. - Ensure that the power supply network voltage corresponds to the nominal voltage stated on the unit’s identification label. - The load must correspond to the requirements listed in the technical data. - Page 7 User manual for - INDICATOR SWE-73-T 67 mm max. 5 mm 68 mm max. 5 mm Figure 4.1. Mounting hole dimensions: a) recommended b) allowable 24V DC version: A = 68 mm 9 mm 230V & 110V AC version: A = 85 mm...
-
Page 8: Connection Method
User manual for - INDICATOR SWE-73-T 91 mm Figure 4.3. Minimum distances when assembly of a number of units 4.3. CONNECTION METHOD Caution - Installation should be conducted by qualified personnel . During installation all available safety requirements should be considered. The fitter is responsible for executing the installation according to this manual, local safety and EMC regulations. - Page 9 User manual for - INDICATOR SWE-73-T - If the unit is equipped with housing, covers and sealing packing, protecting against water intrusion, pay special attention to their correct tightening or clamping. In the case of any doubt consider using additional preventive measures (covers, roofing, seals, etc.).
- Page 10 User manual for - INDICATOR SWE-73-T n.c. n.c. Pt100/500/1000 Pt100/500/1000 1 2 3 4 5 6 7 8 9 10 n.c. DATA- Power DATA+ supply RS - 485 Pt100/500/1000 (depending on version) Figure 4.5. Terminals description All connections must be made while power supply is disconnected !
-
Page 11: Maintenance
User manual for - INDICATOR SWE-73-T 7 8 9 10 n.c. n.c. n.c. Pt100 Pt100 Pt100 Rb, Rc can be different Ra, Rb, Rc, Rd can be different Rb = Rc = Rd Figure. 4.7. Connection of sensors: a) 4-wires circuit; b) 3-wires circuit; c) 2-wires circuit;... -
Page 12: Principle Of Operation
User manual for - INDICATOR SWE-73-T Symbols and functions of push-buttons: Symbol used in the manual: [ESC/MENU] Functions: MENU • Enter to main menu ( press and hold by at least 2 sec.) • Exit the current level and Enter to previous menu (or measure mode) •... -
Page 13: Detection Of The Peak Values
User manual for - INDICATOR SWE-73-T 6.2. DETECTION OF THE PEAK VALUES The SWE-73-T controller is equipped with peaks detection function. It can detect a peaks of the input signal and display their values. Presets connected with this function are placed in ”HOLd”... -
Page 14: Parameters Edition
User manual for - INDICATOR SWE-73-T After entering of last digit of the password first menu position will be displayed (if the password is correct) or warning ”Err” in other case. Functions of the buttons while sub-menu and parameters choice: Selection of sub-menu or parameter for editing. -
Page 15: Switch Parameters ("List" Type)
User manual for - INDICATOR SWE-73-T To decrease edited value press (or press and hold ) [v] button only. The decreasing became quickest as long as button [v] is pressed. To slow down the decreasing, button [^] can be used. If [^] is pressed shortly (and button [v] is still pressed), decreasing slow down for a moment only, if [^] is pressed and held while button [v] is still pressed the decreasing slow down and will be kept on lower speed. -
Page 16: Inpt" Menu
User manual for - INDICATOR SWE-73-T 7.3.1. “inPt” menu This menu presets the measurement input: “tYPE" - type of the input / sensor. This parameter can be set to values: ”Pt 1” - Pt-100 input, ”Pt 5” - Pt-500 input, ”Pt10”... -
Page 17: Scod" Parameter
User manual for - INDICATOR SWE-73-T 7.3.4. ”Scod” parameter This parameter defines user password (4-digits number). If this parameter is set at value “0000”, user password is turned off. If the user do not remember his password, the access to the menu is possible by the “one-use password”. -
Page 18: Edit" Parameter
User manual for - INDICATOR SWE-73-T “38.4” “57.6” “115.2” ”bAud” parameter ”rESP” parameter “ 10c” “ 20c” “ 50c” Tab.7.1. Settings of ”rESP” parameter 7.3.6. ”Edit” paramet er This parameter allows to change the edition mode of numerical parameters: ”dig”... -
Page 19: Menu Structure
User manual for - INDICATOR SWE-73-T 7.4. MENU STRUCTURE Measurement mode Press and hold at least 2 seconds MENU MENU 4-digit user password entering (if it is different from „0000”) 0 _ _ _ ENTER ENTER ENTER Parameter MENU inPt... -
Page 20: The Modbus Protocol Handling
User manual for - INDICATOR SWE-73-T 8. THE MODBUS PRO TOCOL HANDLING Transmission parameters: 1 start bit, 8 data bits, 1 or 2 stop bit (2 bits are send, 1 and 2 bits are accepted when receive), no parity control... -
Page 21: List Of Registers
User manual for - INDICATOR SWE-73-T 8.1. LIST OF REGISTERS Register Write Range Register description -999 ÷ 9999 Measurement value (no decimal point) The status of the current measurement; 0h - data valid; A0h - top 0h, A0h, 60h border of the measurement range is exceeded; 60h - bottom border of the measurement range is exceeded;... -
Page 22: Transmission Errors Description
Data byte count in answer frame DATA H,L Data byte (Hi and Lo byte) CRC L,H CRC error check (Hi and Lo byte) 1. Read of the displayed value (measurement), SWE-73-T device address = 01h: ADDR FUNC REG H,L COUNT H,L... - Page 23 User manual for - INDICATOR SWE-73-T b) The answer (if an error occur): ADDR FUNC ERROR CRC L,H ERROR - error code = 60h, bottom border of the measurement range is exceeded 2. Read of device ID code ADDR FUNC...
- Page 24 User manual for - INDICATOR SWE-73-T 5. Read of the registers 1, 2 and 3 in one message (example of reading a number of registries in one frame): ADDR FUNC REG H,L COUNT H,L CRC L,H COUNT L - the count of being read registers (max.16)
-
Page 25: Default And User's Settings List
User manual for - INDICATOR SWE-73-T 9. DEFAULT AND USER'S SETTINGS LIST Desc. Parameter Description Default value User's value page Configuration of measurement input (“inPt” menu) tYPE Input type „Pt 1” FiLt Filtering ratio toFS Shifting of measurement scale Display parameters... - Page 26 Microlectra bv. Augustapolder 12. 2992 SR Barendrecht. The Netherlands. www.microlectra.nl info@microlectra.nl...
