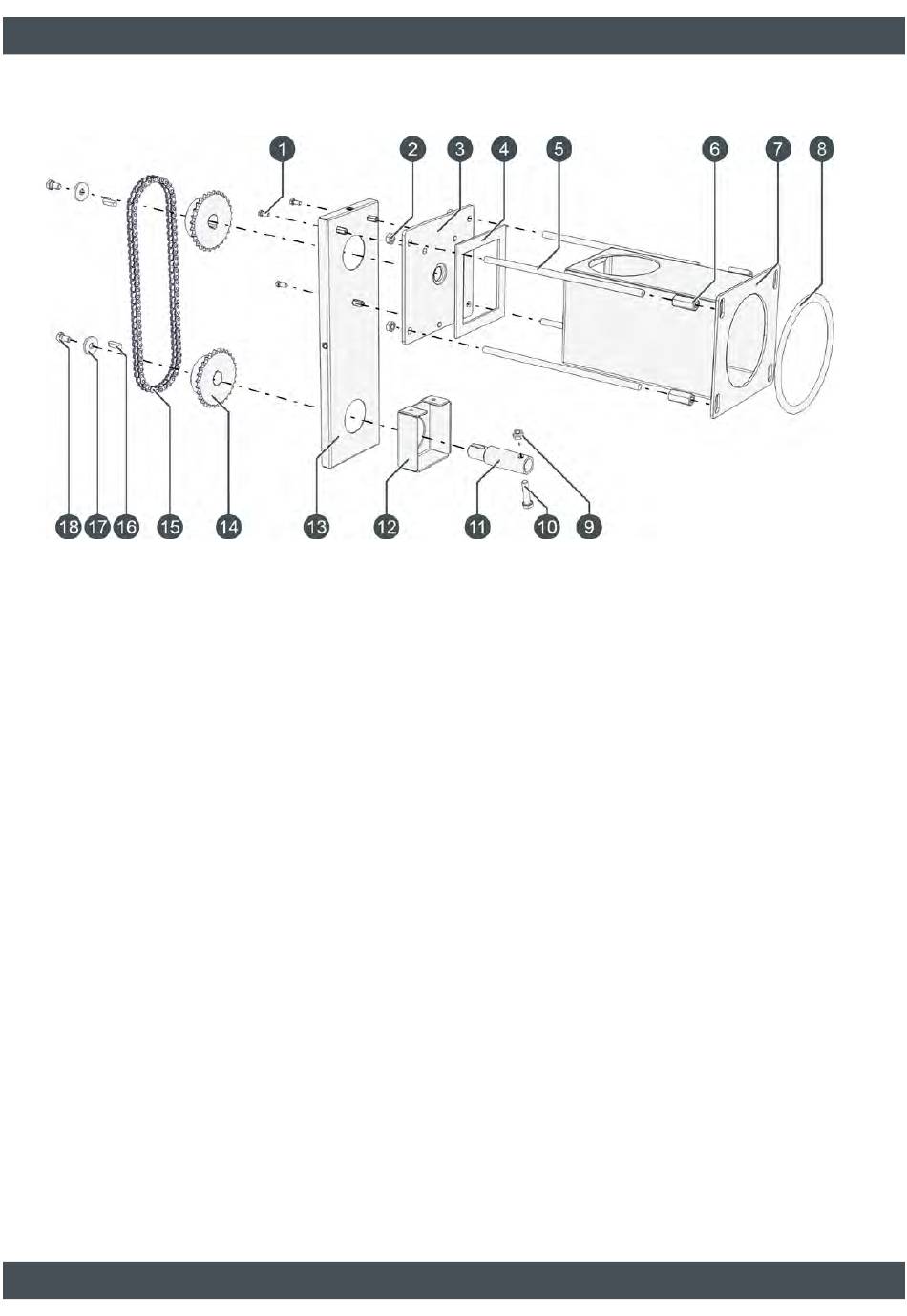

Flue gas duct
1
Hexagonal screw M5 x 12
2
M8 hexagonal nut
3
Flange bearing
4
Ceramic fibre seal
5
M8 x 235 threaded rod
6
M8 x 30 hexagonal long nut
7
Flue gas duct
8
Fibre glass seal
9
Self-locking M8 hexagonal nut
10 Hexagonal screw M8 x 35
11 Drive shaft stub
12 Guard plate
13 Rear side of the chain protector
14 Chain wheel
15 Drive chain
16 Key
17 Washer
18 Hexagonal screw M8 x 16
