Fuel change
5.3

Setting the firebed level sensor

Firebed level sensor
The boiler is suitable for the combustion of wood
chips, pellets and miscanthus. Please refer to the
operating manual of the boiler for more details on fuel.
The better the fuel, the smaller the amount needed on
the tilting grate. Therefore, when the fuel is changed,
the position of the firebed level sensor must also be
changed. The sensor is behind the front cover of the
boiler.

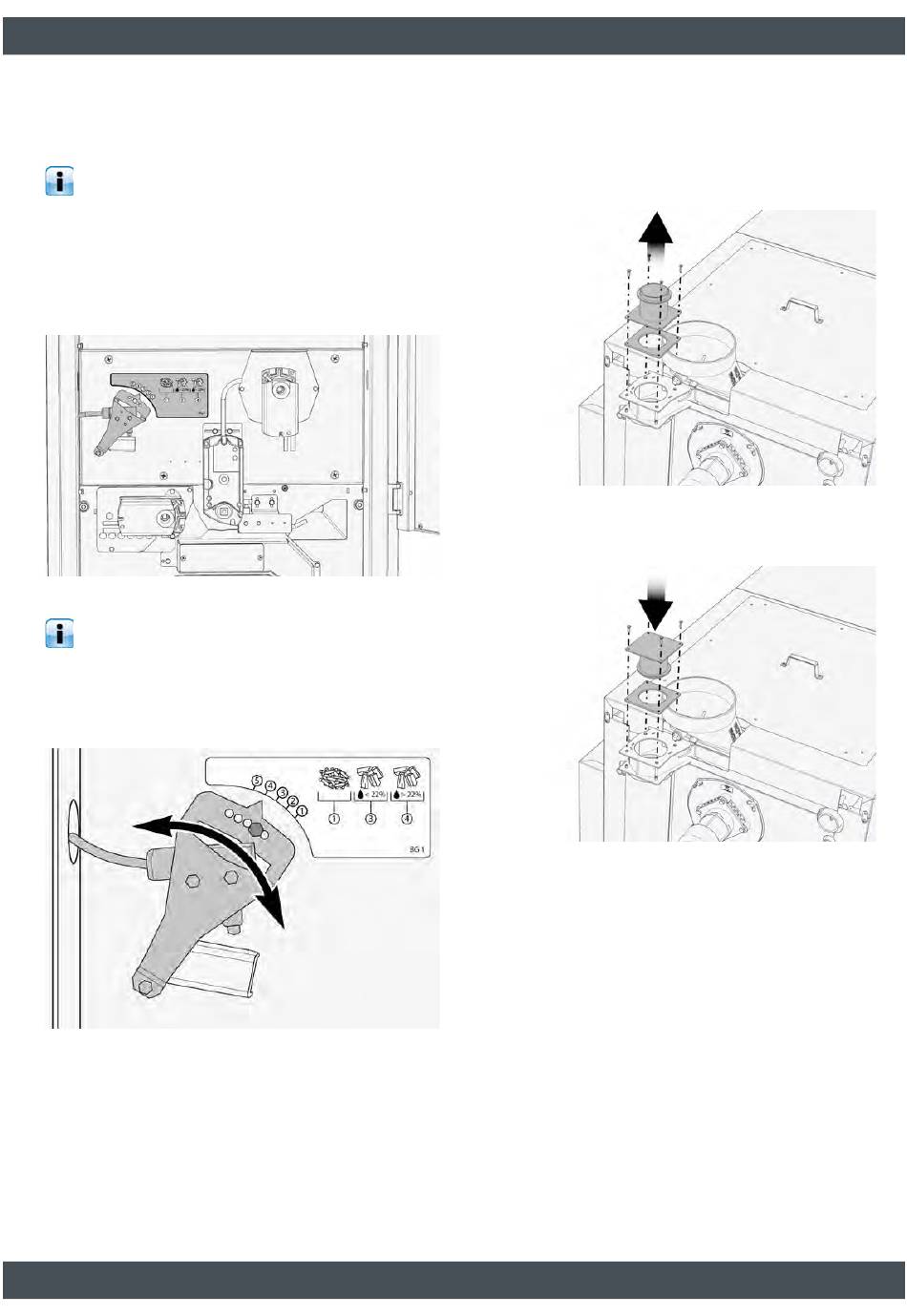

Fig. 5-1: Firebed level sensor
The different positions for boilers with the stoker
on the left side are described below.
For a boiler with the stoker on the right, a mirror image
of these illustrations applies.
To adjust the position, loosen the screw, turn the
firebed level sensor and fix it with the screw.
Setting the firebed level sensor
5.4

Closing the flue gas recirculation

Install shutoff device
1. Remove the shutoff device with seal on the flue
gas duct by removing four M5 x 16 hex screws.
2. Place the seal of the shutoff device on the flange.
Rotate the shutoff device and install it with four M5
x 16 hex screws.
